Confirmation Driving Pattern

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For confirmation driving pattern, see Fig 1. To switch to check mode, see RETRIEVING DIAGNOSTIC TROUBLE CODES  under SELF-DIAGNOSTIC SYSTEM.

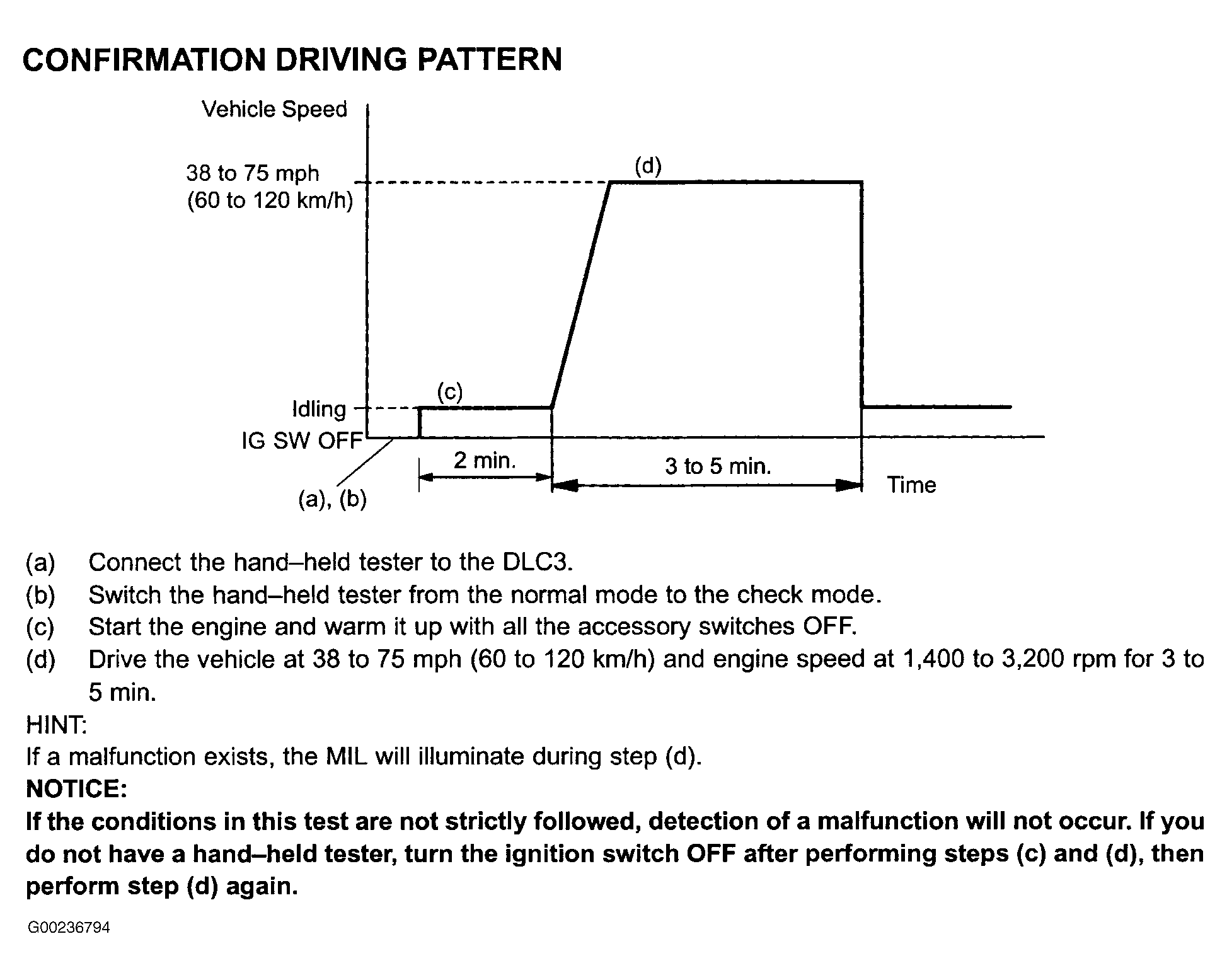

Fig 1: DTCs P2195 & P2196 Confirmation Driving Pattern
G00236794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
