Perform A/F Control

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

To perform A/F control, see Fig 1.

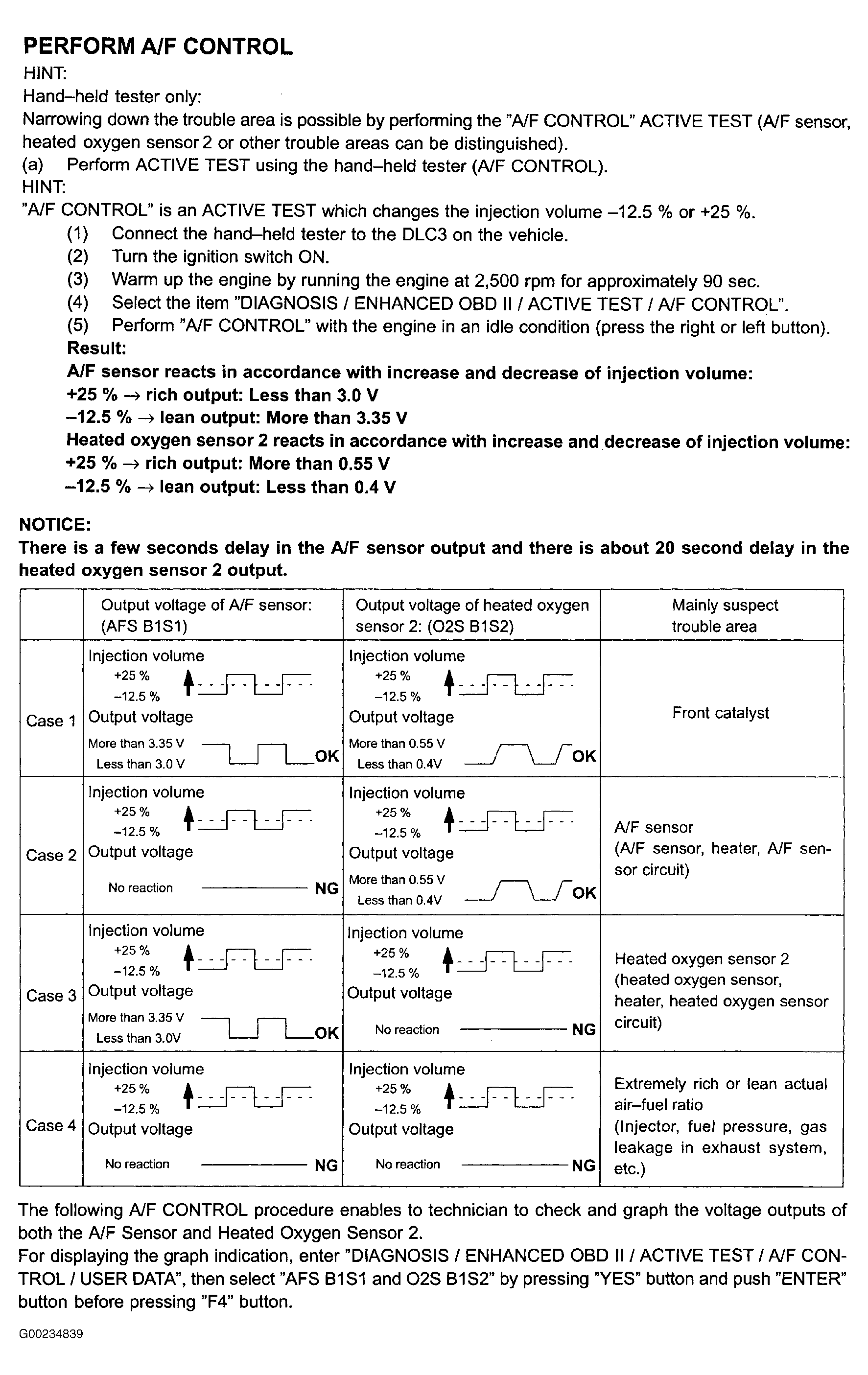

Fig 1: DTC P0420 A/F Control Active Test
G00234839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
