Conditioning A/F Sensor & Heated Oxygen Sensor No. 2 For Testing

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For conditioning of the A/F sensor and heated oxygen sensor No. 2 for testing, see Fig 1.

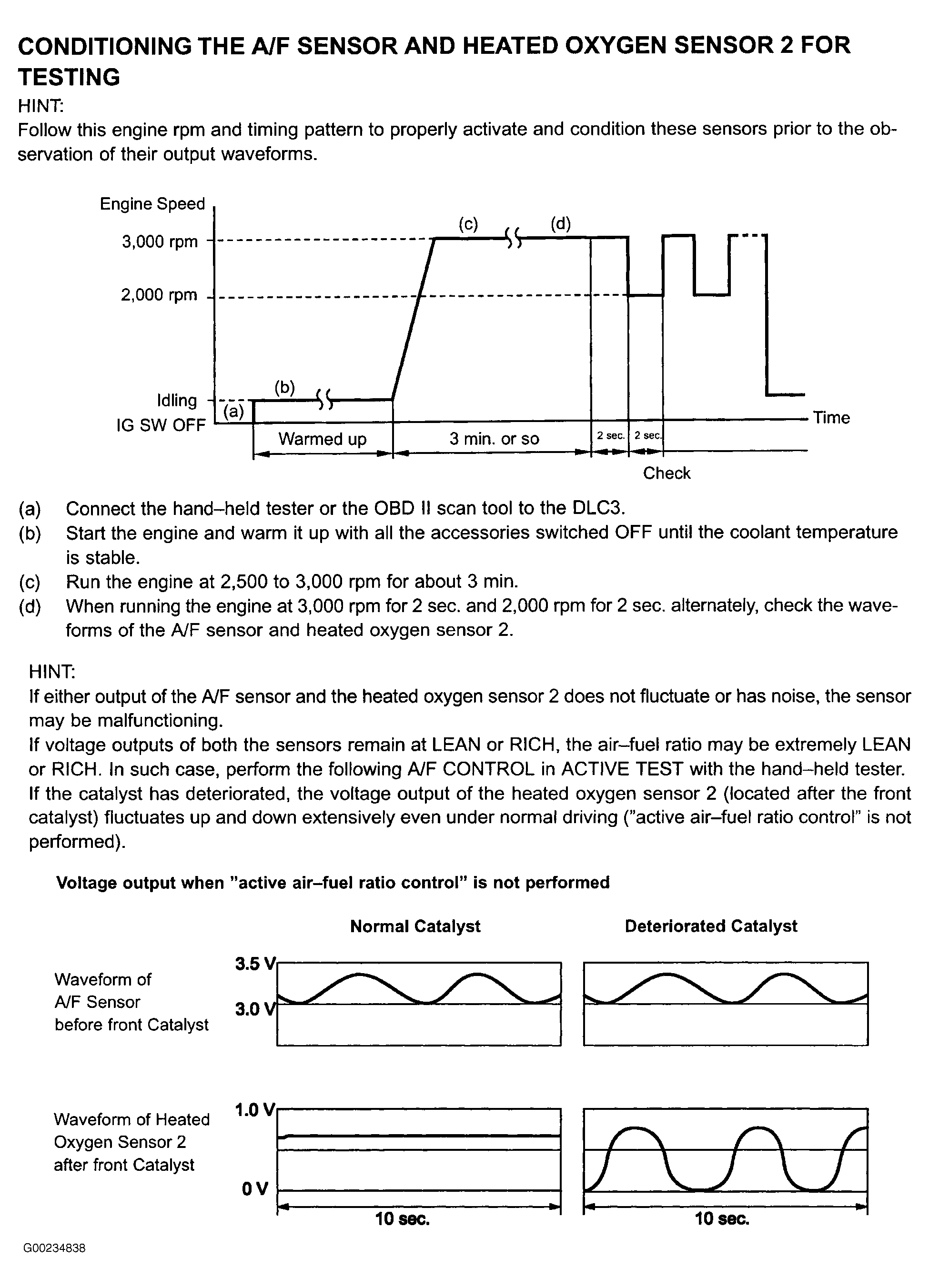

Fig 1: DTC P0420 A/F Sensor & Heated Oxygen Sensor No. 2 Conditioning For Testing
G00234838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
