Monitor Strategy & Typical Malfunction Thresholds

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For monitor strategy and typical malfunction thresholds, see Fig 1.

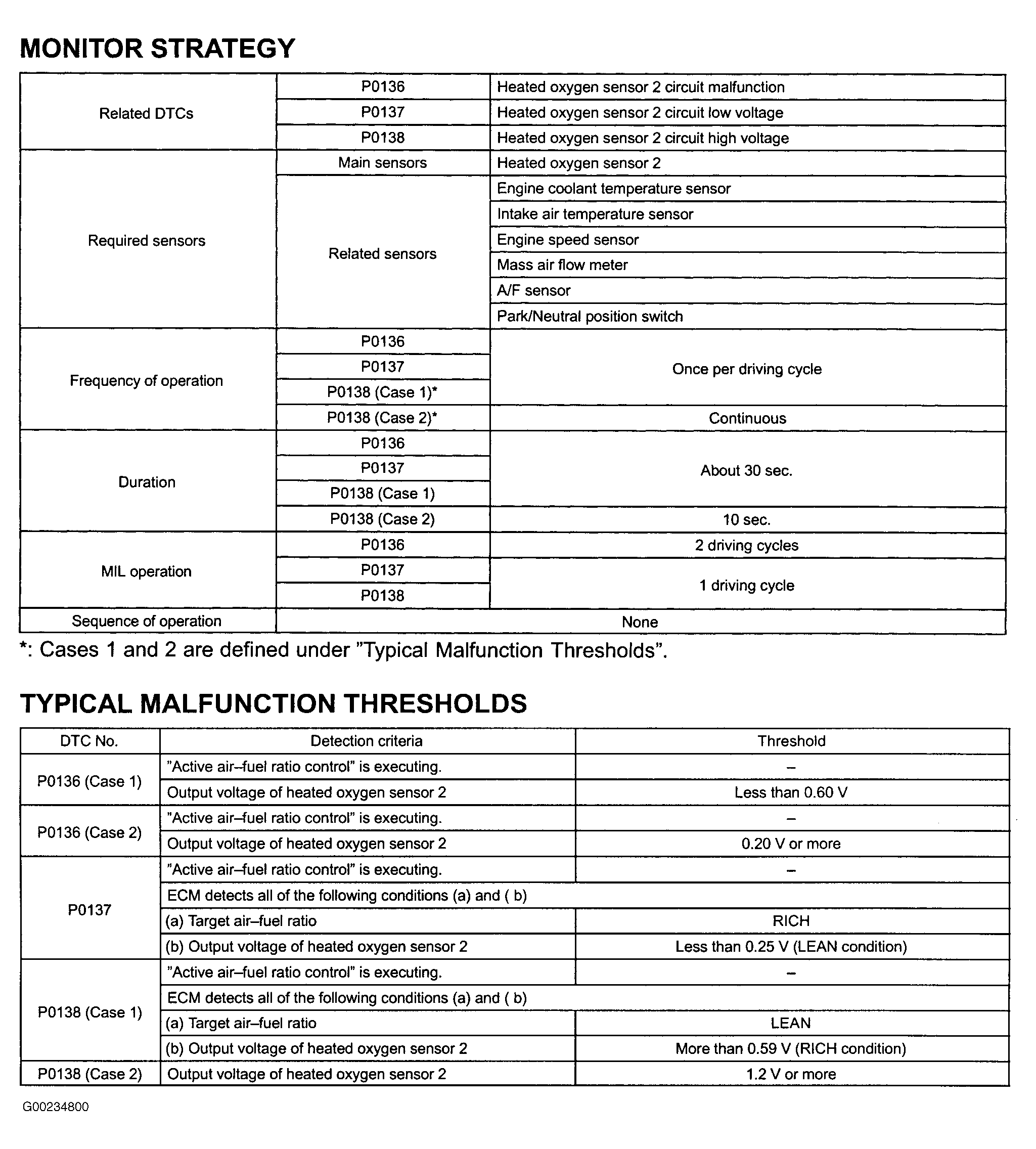

Fig 1: DTCs P0136-P0138 Monitor Strategy & Typical Malfunction Thresholds
G00234800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
