Partial Zero Emission Vehicle: Structure

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. The exhaust emission system has been changed to meet the SULEV requirements. See Fig 1.
  2. The construction of the evaporative emission control system has been changed. See Fig 2.

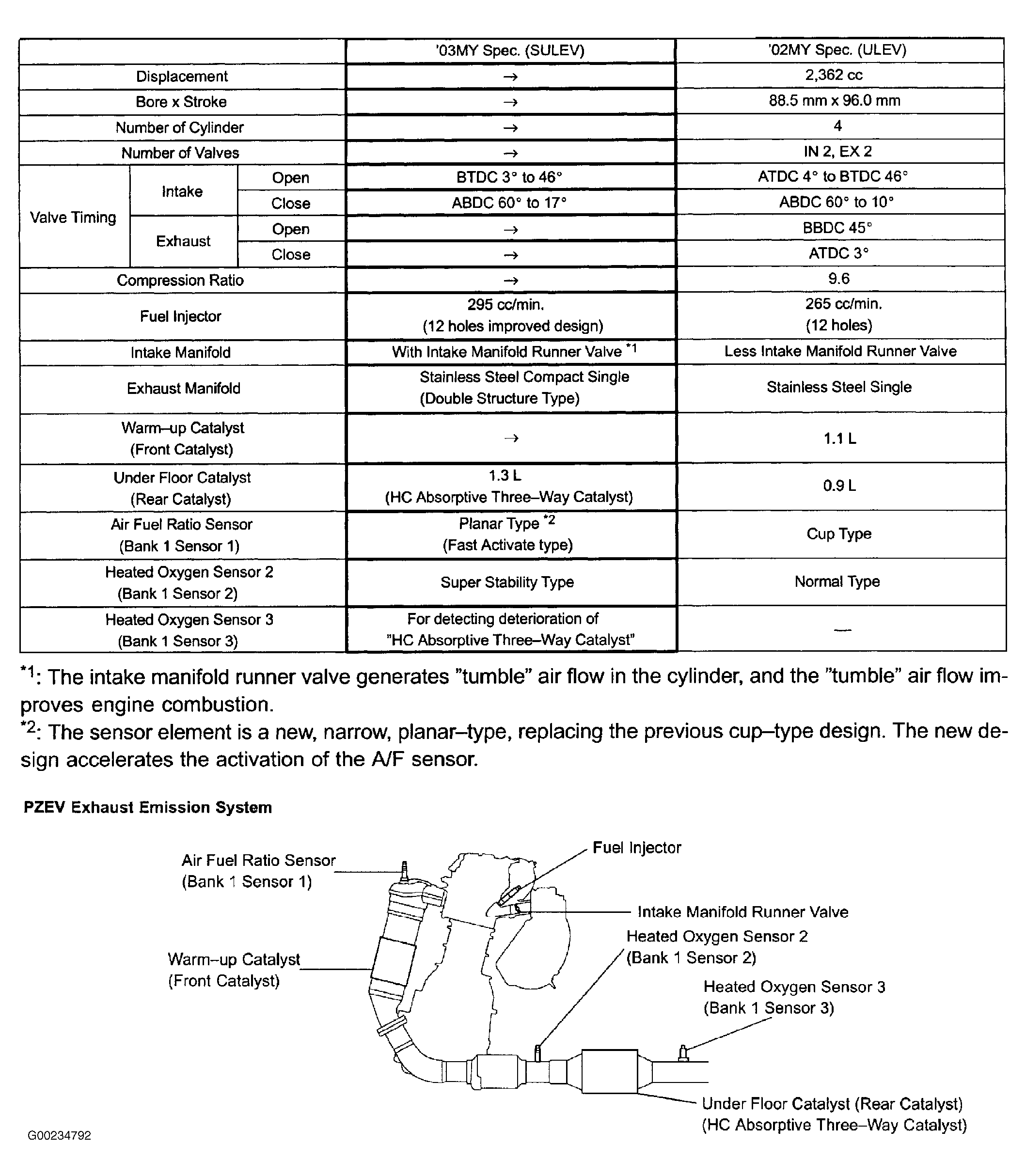

Fig 1: Identifying PZEV Structure Requirements (1 Of 2)
G00234792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

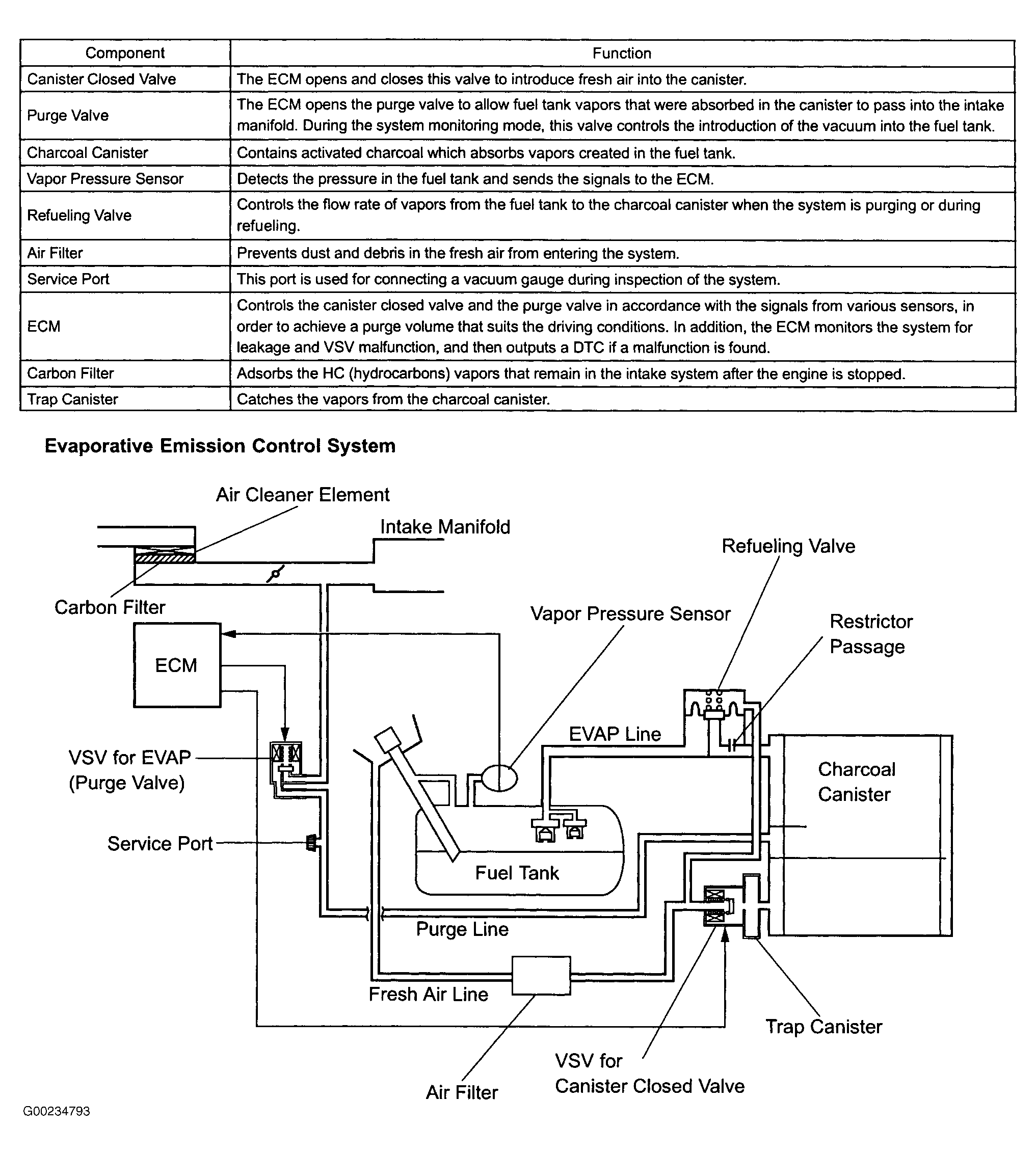

Fig 2: Identifying PZEV Structure Requirements (2 Of 2)
G00234793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
