Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read freeze frame data using the hand-held tester or the OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected.

For diagnosis and repair with Toyota Hand- held tester or an Enhanced OBD II scan tool, see Fig 1 & Fig 2 . For diagnosis and repair with generic OBD II scan tool (not Enhanced), see Fig 3 & Fig 4 .

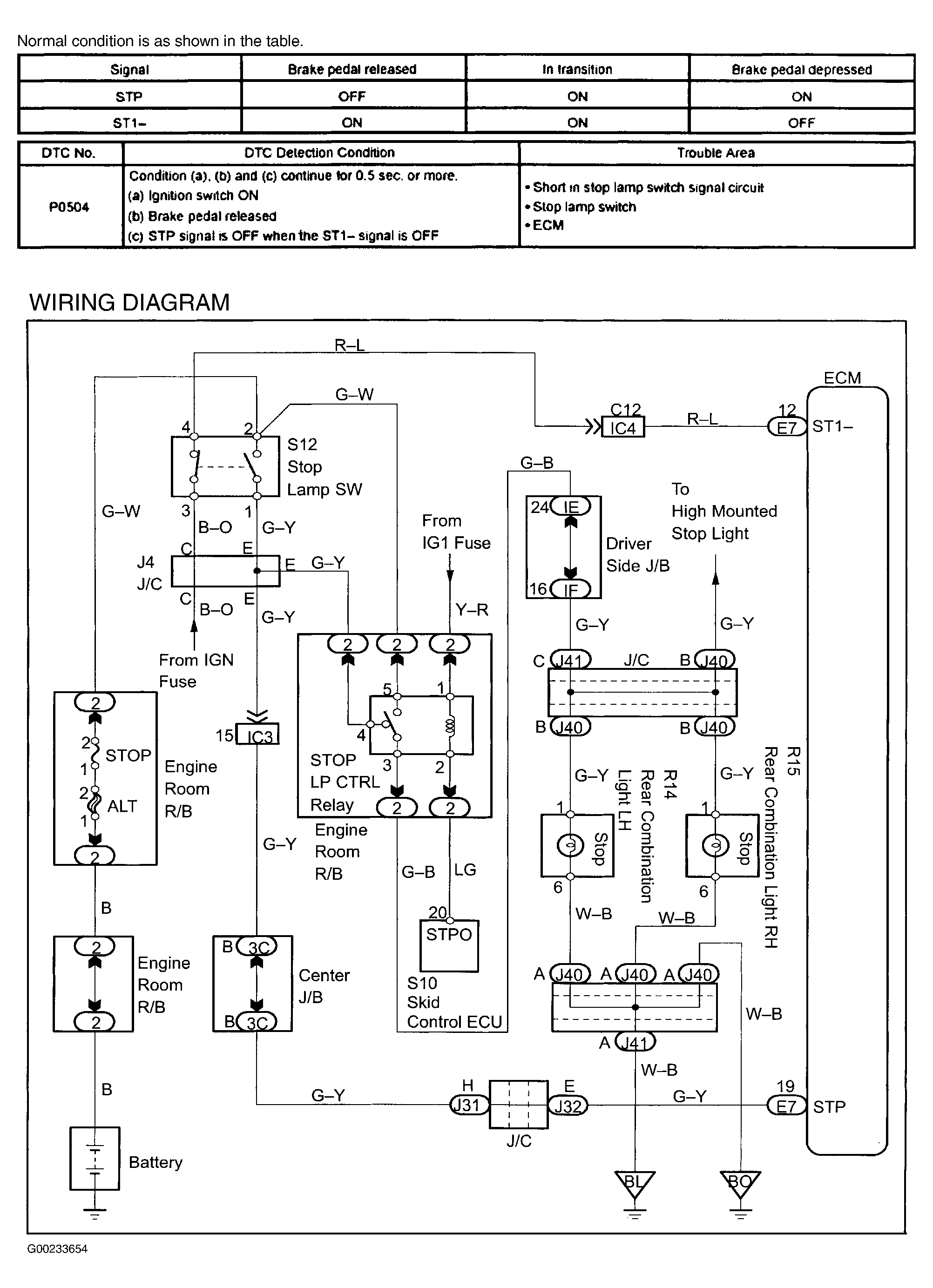

For brake switch circuit wiring diagram, see Figure. For ECM location, see Figure. For ECM connector view, see Figure. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - V6 & V8 article or SYSTEM & COMPONENT TESTING - V6 & V8 article. For adjustments, see ON-VEHICLE ADJUSTMENTS - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.

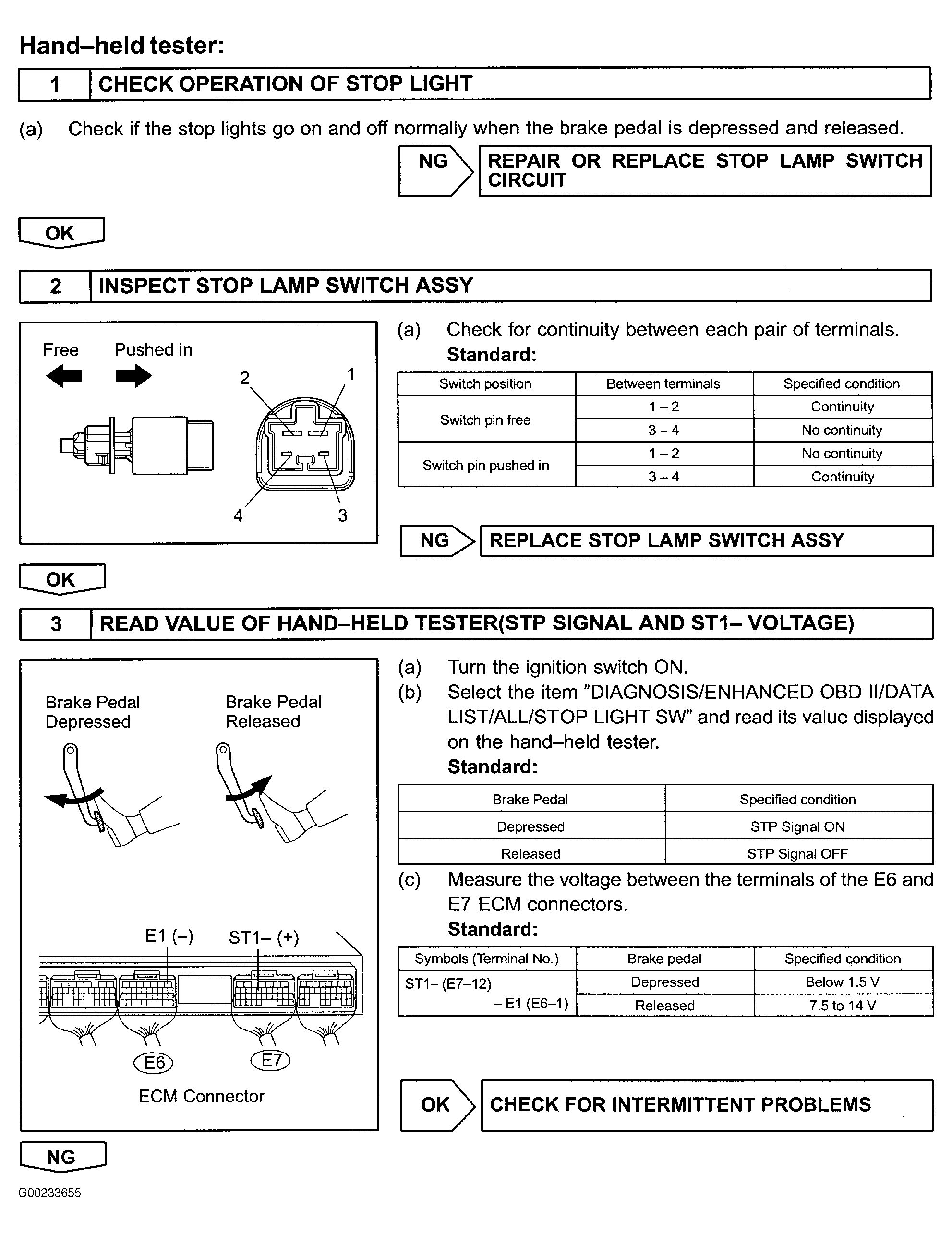

Fig 1: DTC P0504 Diagnostic Procedure Using Hand-Held Tester (Steps 1-3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

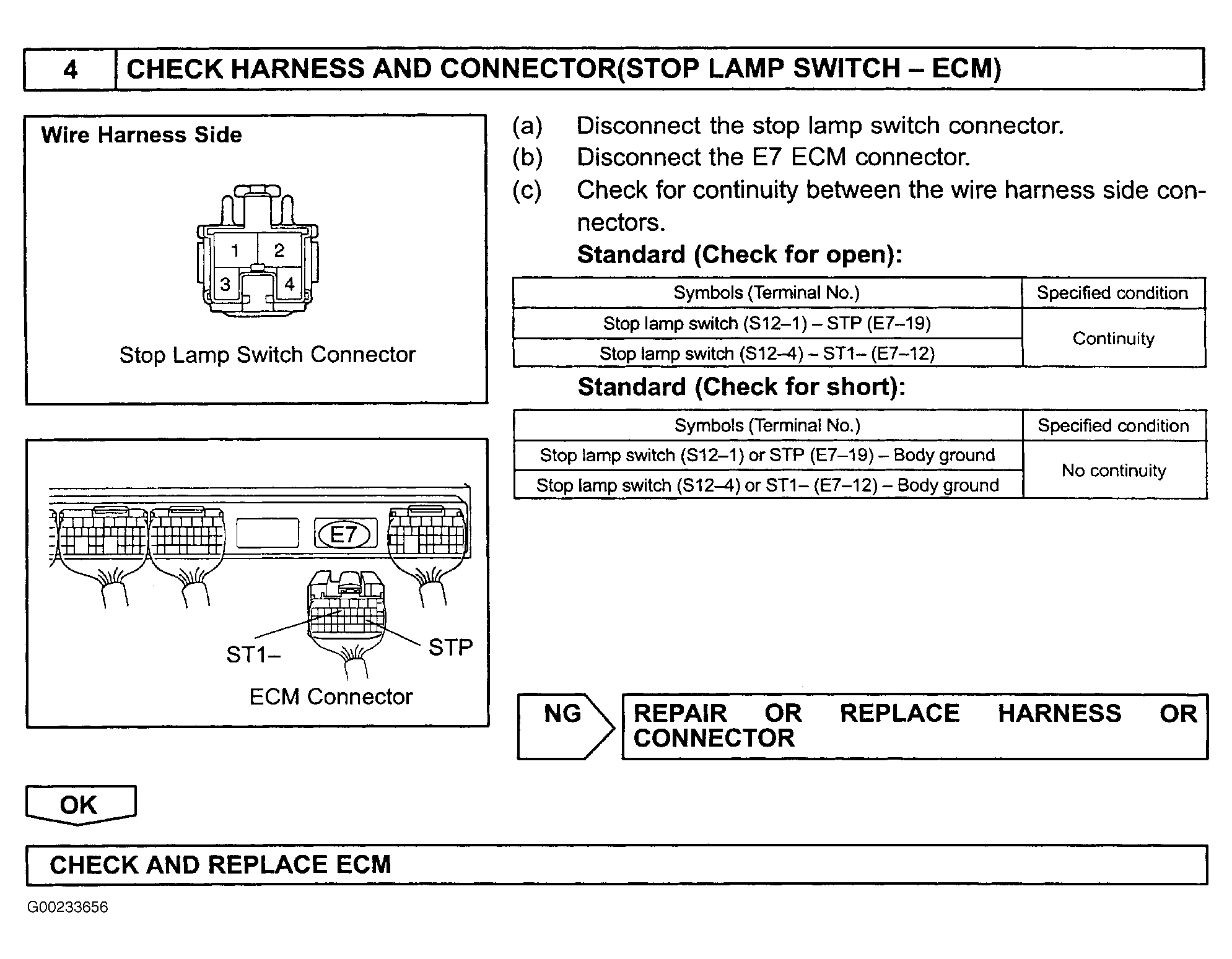

Fig 2: DTC P0504 Diagnostic Procedure Using Hand-Held Tester (Step 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

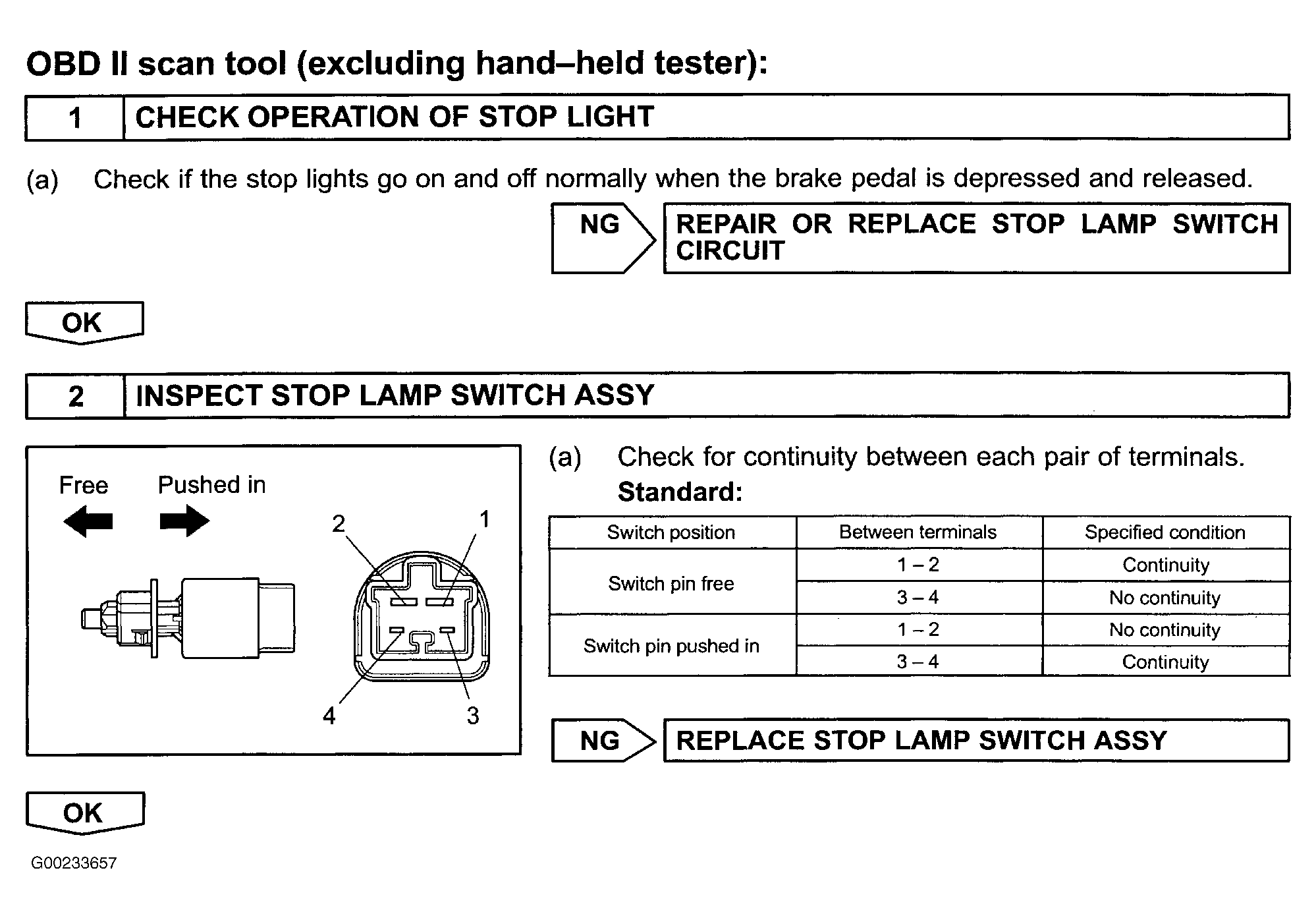

Fig 3: DTC P0504 Diagnostic Procedure Using OBD II Scan Tool (Steps 1-2)

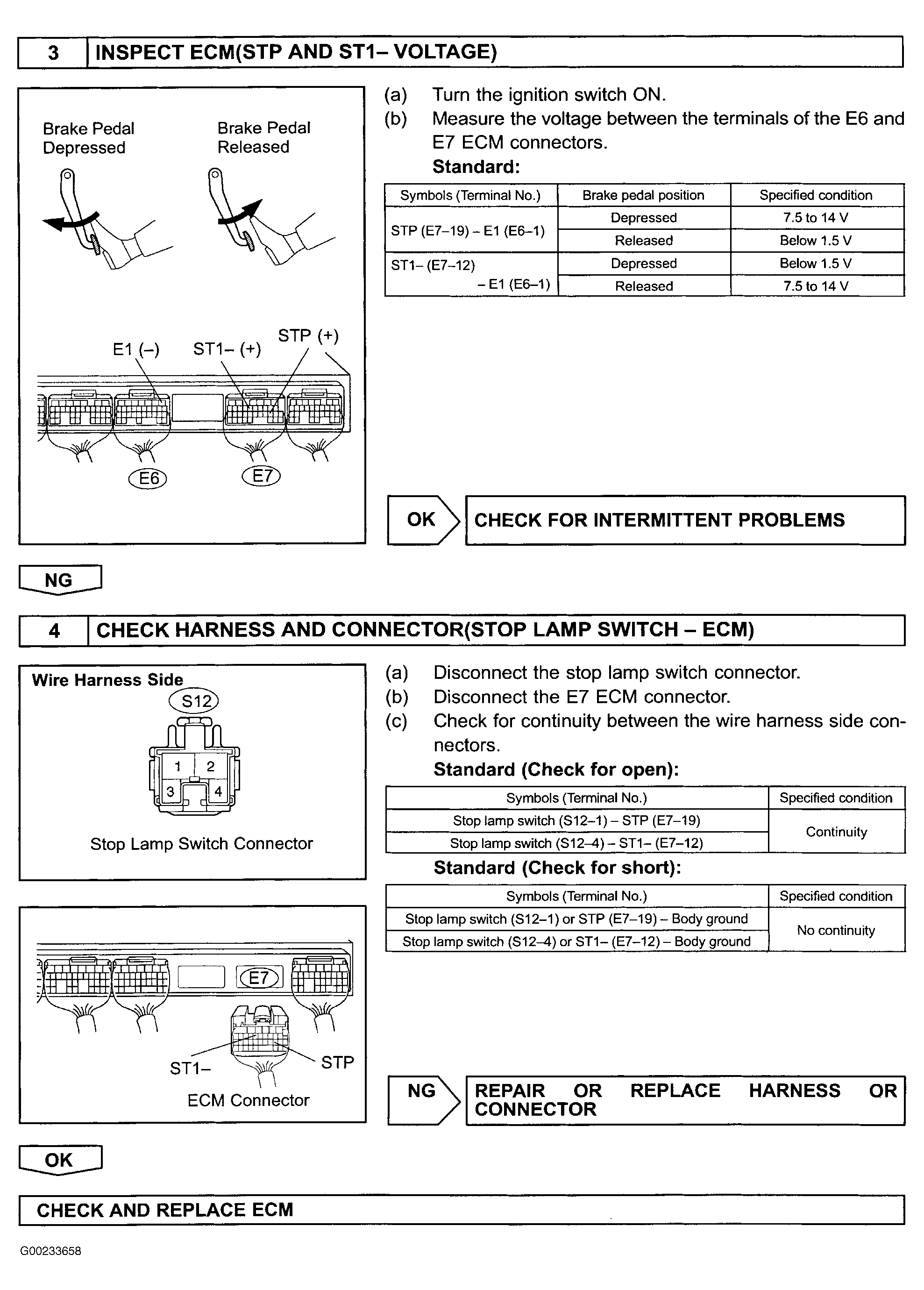

Fig 4: DTC P0504 Diagnostic Procedure Using OBD II Scan Tool (Steps 3-4)
