Shock Absorber With Coil Spring: Removal
WARNING: This page is about a different car, the 2004 Lexus LS 430, 2003 Lexus LS 430, and 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
- Turn off ignition.
- Remove wheel.

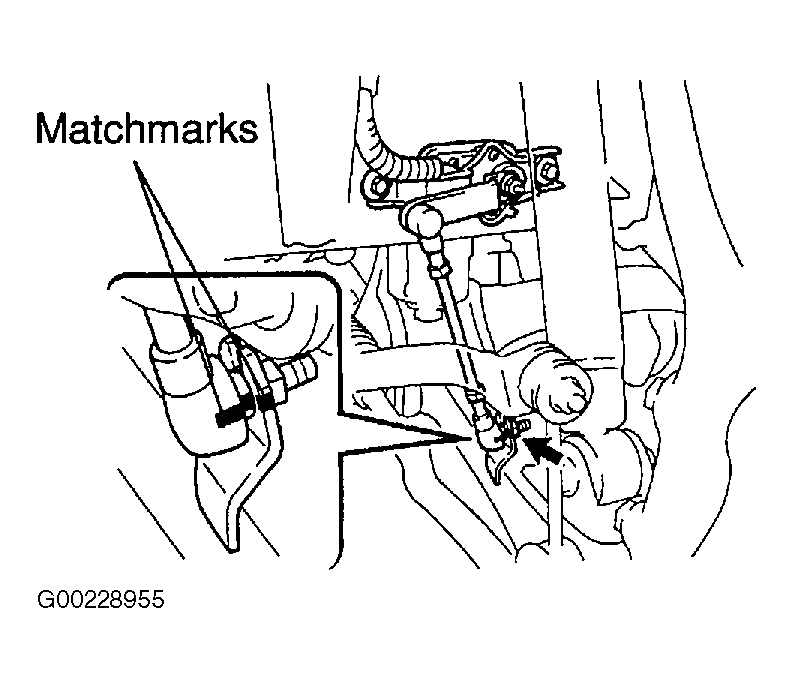

- Place matchmarks on height control sensor link and bracket. Remove nut and disconnect sensor link from lower control arm. See Figure.

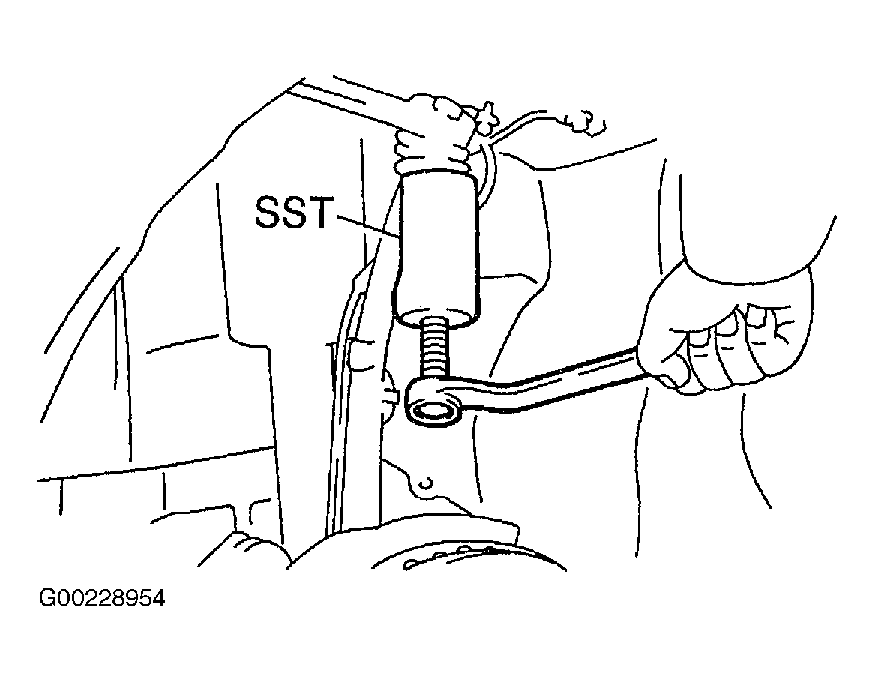

- Remove clip and nut. Using Special Tool (09610-20012), disconnect steering knuckle from upper control arm. See Figure. Support steering knuckle securely.
- Remove bolt and nut to disconnect shock absorber from shock absorber lower bracket.

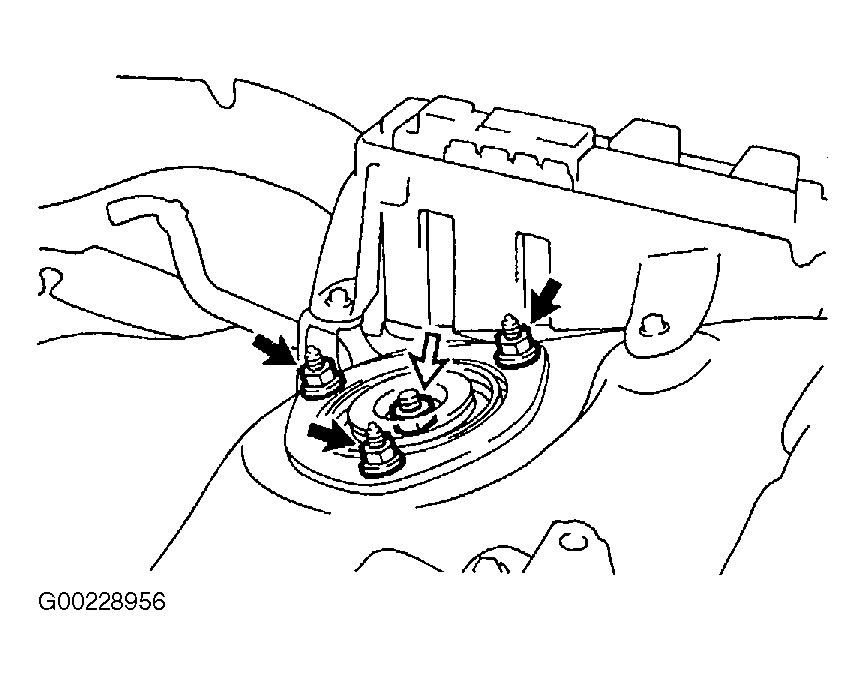

- Loosen suspension support center nut. Do NOT remove. If disassembling shock absorber, it is not necessary to loosen nut. See Fig 1.
- Remove outside suspension support nuts and shock absorber with coil spring.
