Pneumatic Cylinder: Installation
WARNING: This page is about a different car, the 2004 Lexus LS 430, 2003 Lexus LS 430, and 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .
- Match rod of pneumatic cylinder with hole in actuator.
- Install 2 NEW "O" rings, plate and connector No. 2 to housing and apply a thin coat of MP grease. Prevent foreign matter from being attached to "O" rings and height control tube. Failure may cause air leakage.

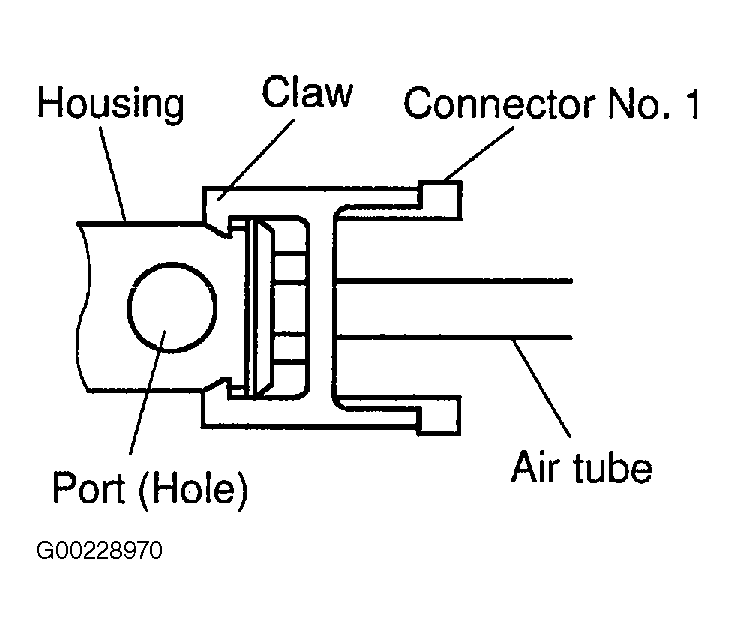

- Port hole of housing should be set in position 90 degrees from claws of connector No. 1. See Fig 1. If port of housing cannot be viewed, find correct setting position by gradually shifting connector No. 1.
- Push tube and connector No. 1 into housing until a click is heard.
- Torque bolt for pneumatic cylinder to lower control arm after stabilizing suspension.
- Check front wheel alignment. See appropriate SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.
