Axle Hub: Assembly
WARNING: This page is about a different car, the 2004 Lexus LS 430, 2003 Lexus LS 430, and 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
- Clean contacting surface of axle hub and NEW speed sensor.
- Place speed sensor on axle hub so connector is set at bottom under on-vehicle condition.

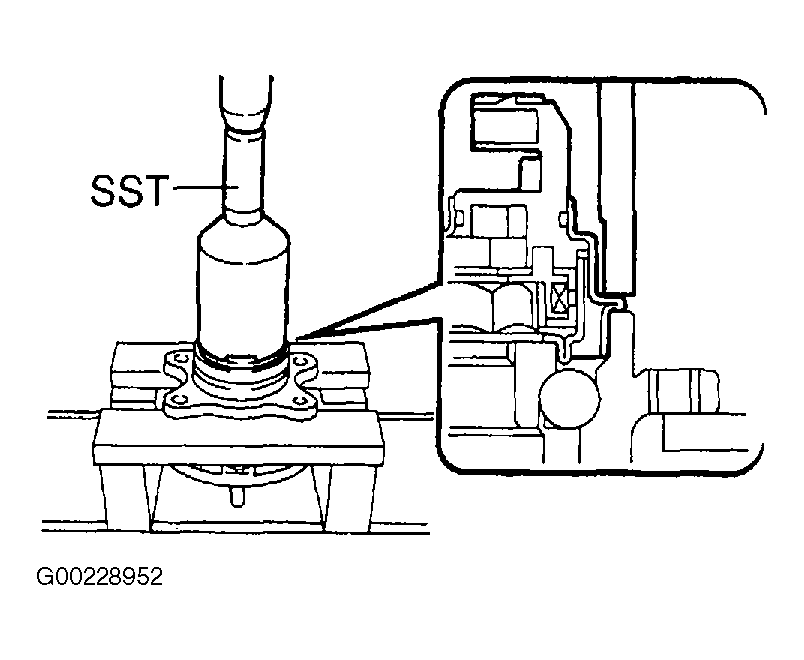

- Using Special Tool (09214-76011) and a press, install NEW speed sensor to axle hub. See Fig 1. Do NOT tap speed sensor directly with a hammer. Press in speed sensor straight and slow.
