Without Electronic Modulated Air Suspension
WARNING: This page is about a different car, the 2004 Lexus LS 430, 2003 Lexus LS 430, and 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

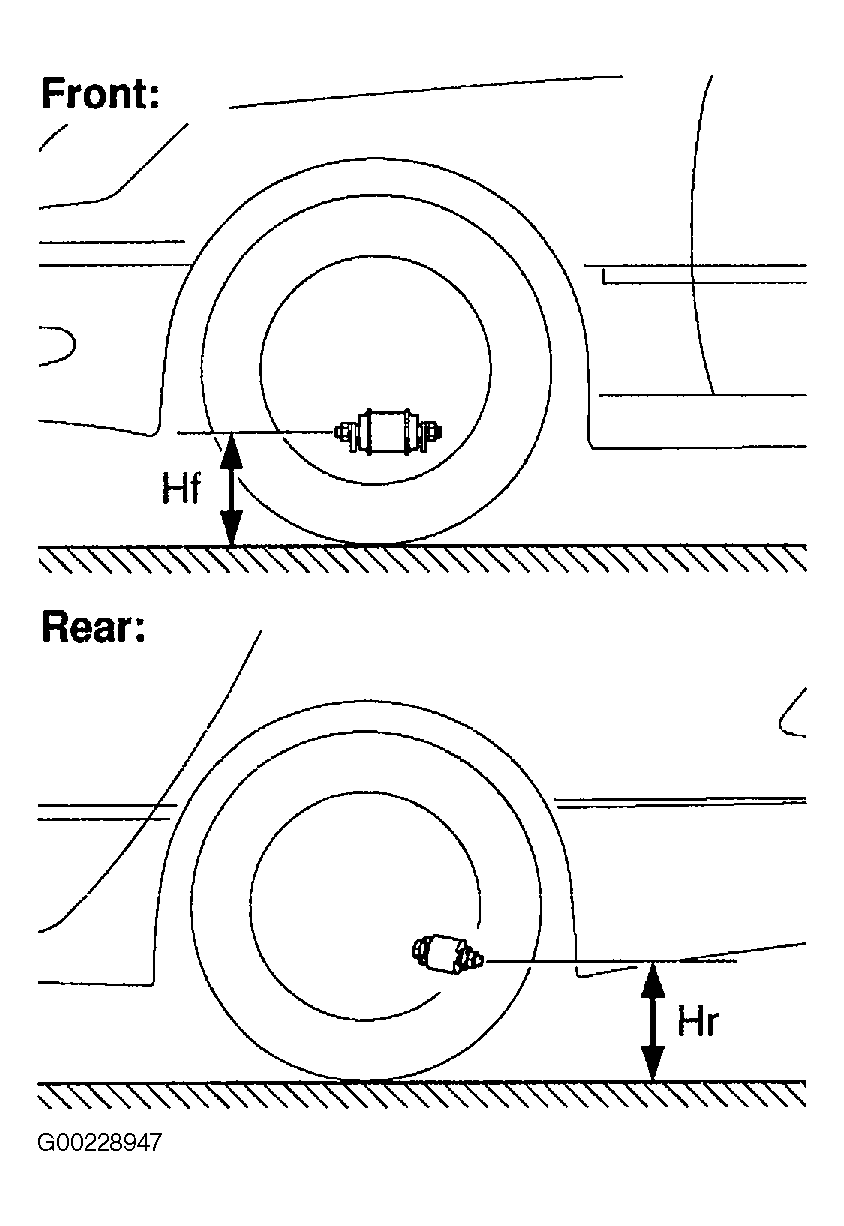

- Measure front vehicle height from ground to center of lower control arm mounting bolt. See Figure.
- Measure rear vehicle height from ground to center of lower control arm No. 2 mounting bolt. See Figure.
- When radius of a wheel is 12.4 inches (315 mm) or 12.52 inches (318 mm), vehicle height should be standard. For standard vehicle height specification, see STANDARD VEHICLE HEIGHT SPECIFICATION WITHOUT ELECTRONIC MODULATED AIR SUSPENSION table.
- If vehicle height is not within specification, try to adjust by pushing down or lifting body.
STANDARD VEHICLE HEIGHT SPECIFICATION WITHOUT ELECTRONIC MODULATED AIR SUSPENSION
| Tire Size | Front In. (mm) | Rear In. (mm) |
|---|---|---|
| P225/60R16 | 8.35 (212) | 9.02 (229) |
| P225/55R17 | 8.46 (215) | 9.13 (232) |
