Bearing Backlash & Axle Hub Deviation
WARNING: This page is about a different car, the 2004 Lexus LS 430, 2003 Lexus LS 430, and 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

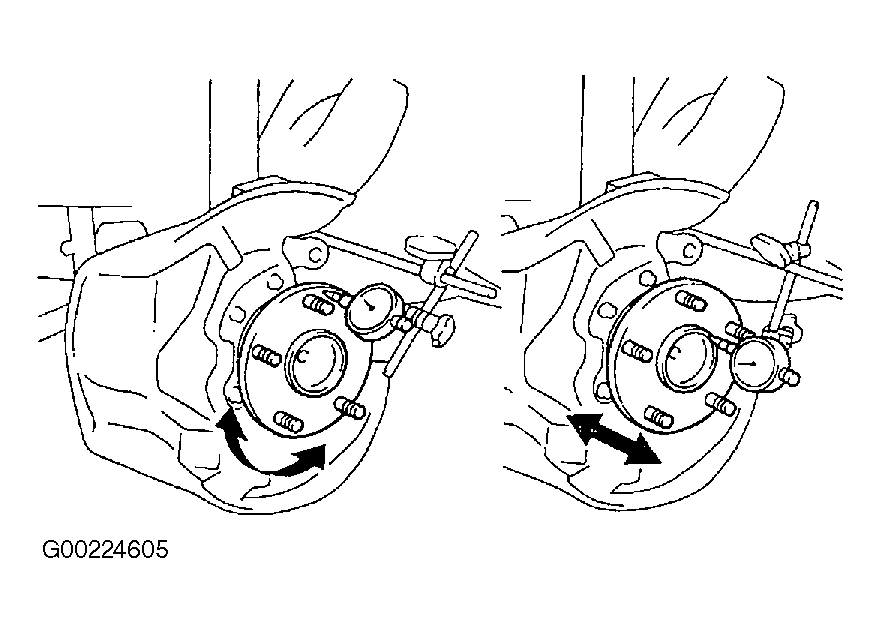

- Using a dial indicator near center of axle hub, check backlash in bearing shaft direction. See Fig 1. If backlash exceeds .0020 inches (.05 mm), replace bearing.
- Using a dial indicator, check deviation at the surface of axle hub outside hub bolt. See Fig 1. If deviation exceeds .0020 inches (.05 mm), replace axle hub.
