Removal & Installation (Prius)
WARNING: This page is about a different car, the 2002 Toyota Prius, 2002 Toyota Land Cruiser, 2002 Toyota 4Runner, 2001 Toyota Prius, and 2001 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

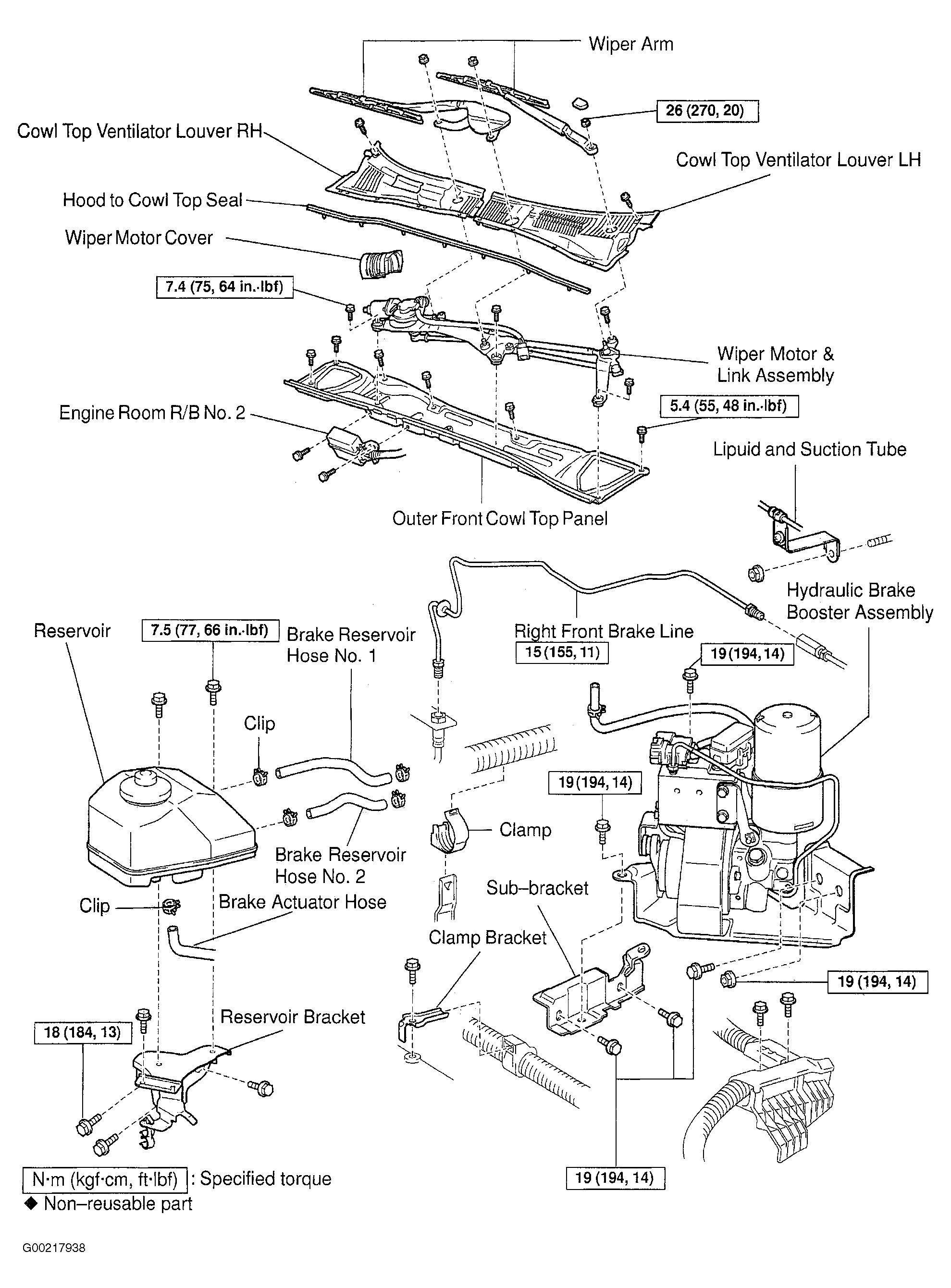

- Draw out brake fluid with syringe. Remove outer front cowl top panel. Remove reservoir, brake actuator hose, brake reservoir hose No.1 & No.2, and reservoir bracket. See Fig 1.
- Disconnect fluid level warning switch connector from the reservoir. Remove 2 bolts from reservoir. Disconnect 3 hoses from the reservoir and remove. Disconnect 3 hoses from the reservoir bracket clamp. Remove 4 bolts and reservoir bracket.

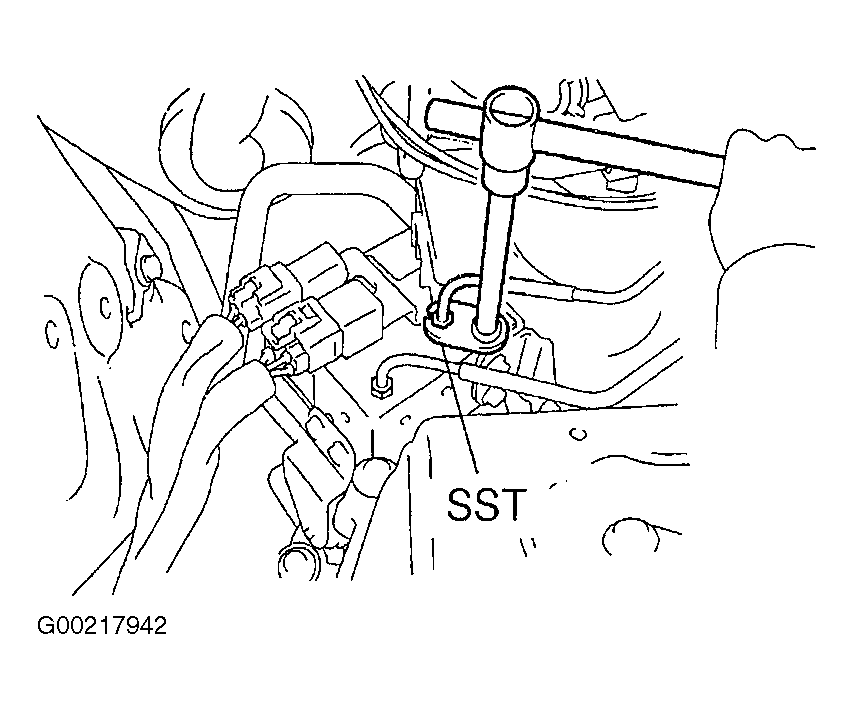

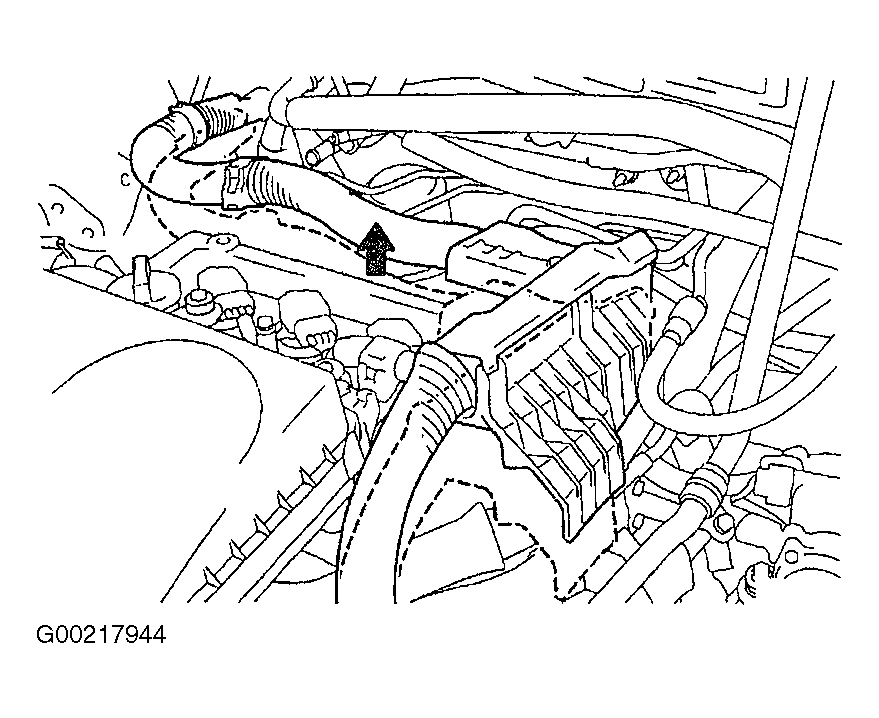

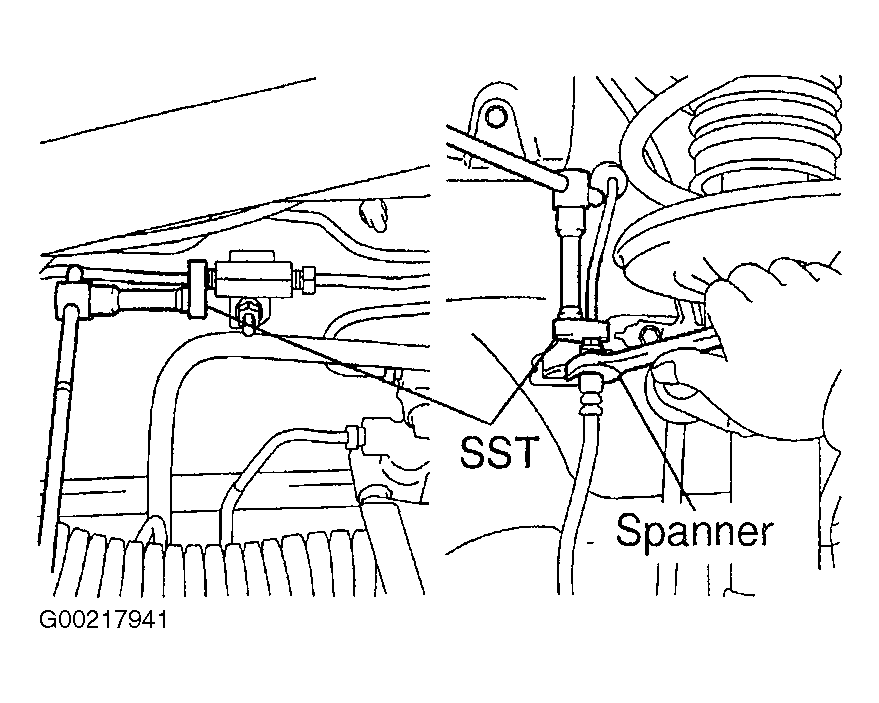

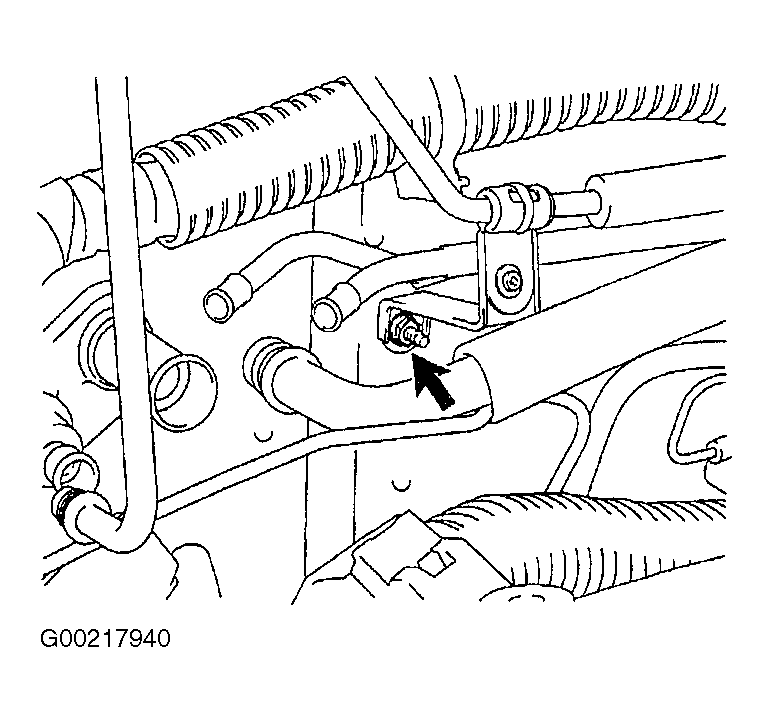

- Disconnect liquid and suction tubes. Remove the nut and release liquid and suction tubes. See Fig 2. Using tool (09023-00100) and spanner, disconnect the right front brake line from the flexible hose and 2 way. See Fig 3. Using same tool, disconnect the brake line from the HBB assembly. See Fig 4.

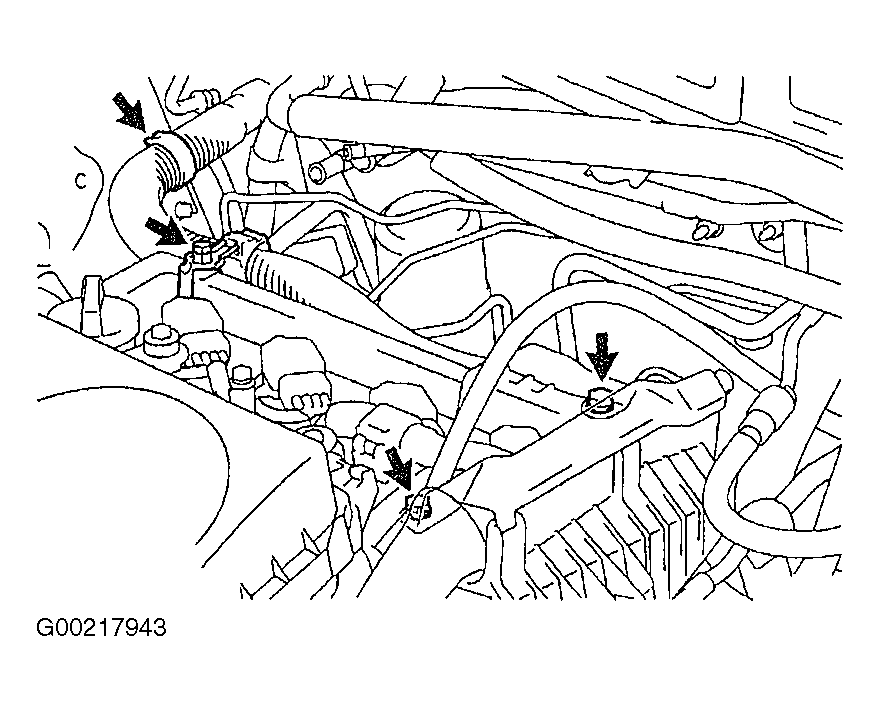

- Disconnect 2 connectors. To remove HBB assembly, remove the clamp, clamp bracket and 3 bolts. See Fig 5. Release the wire harness to remove the HBB assembly. See Fig 6.

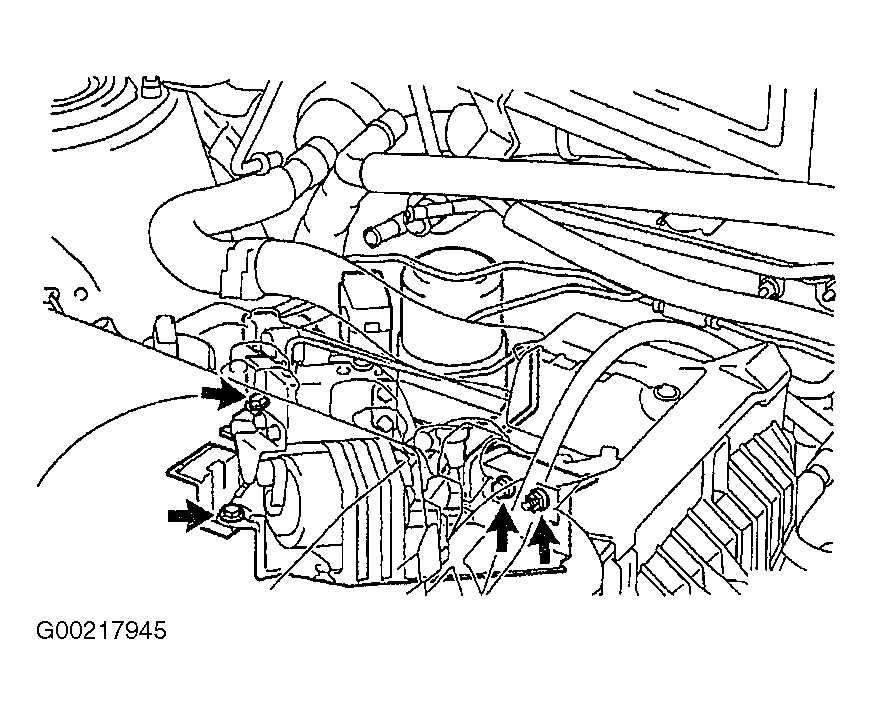

- Remove the 3 installation bolts and nut. Remove HBB assembly. Remove 2 bolts and sub-bracket. See Fig 7.
NOTE:
Before starting work, ensure ignition switch is OFF and depress brake pedal more than 40 times.
