Removal & Installation (Land Cruiser)
WARNING: This page is about a different car, the 2002 Toyota Prius, 2002 Toyota Land Cruiser, 2002 Toyota 4Runner, 2001 Toyota Prius, and 2001 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before starting procedure, turn ignition OFF. Depress brake pedal more than 40 times to deplete booster pressure. DO NOT turn ignition on until booster is reinstalled.
- Draw out fluid with syringe.

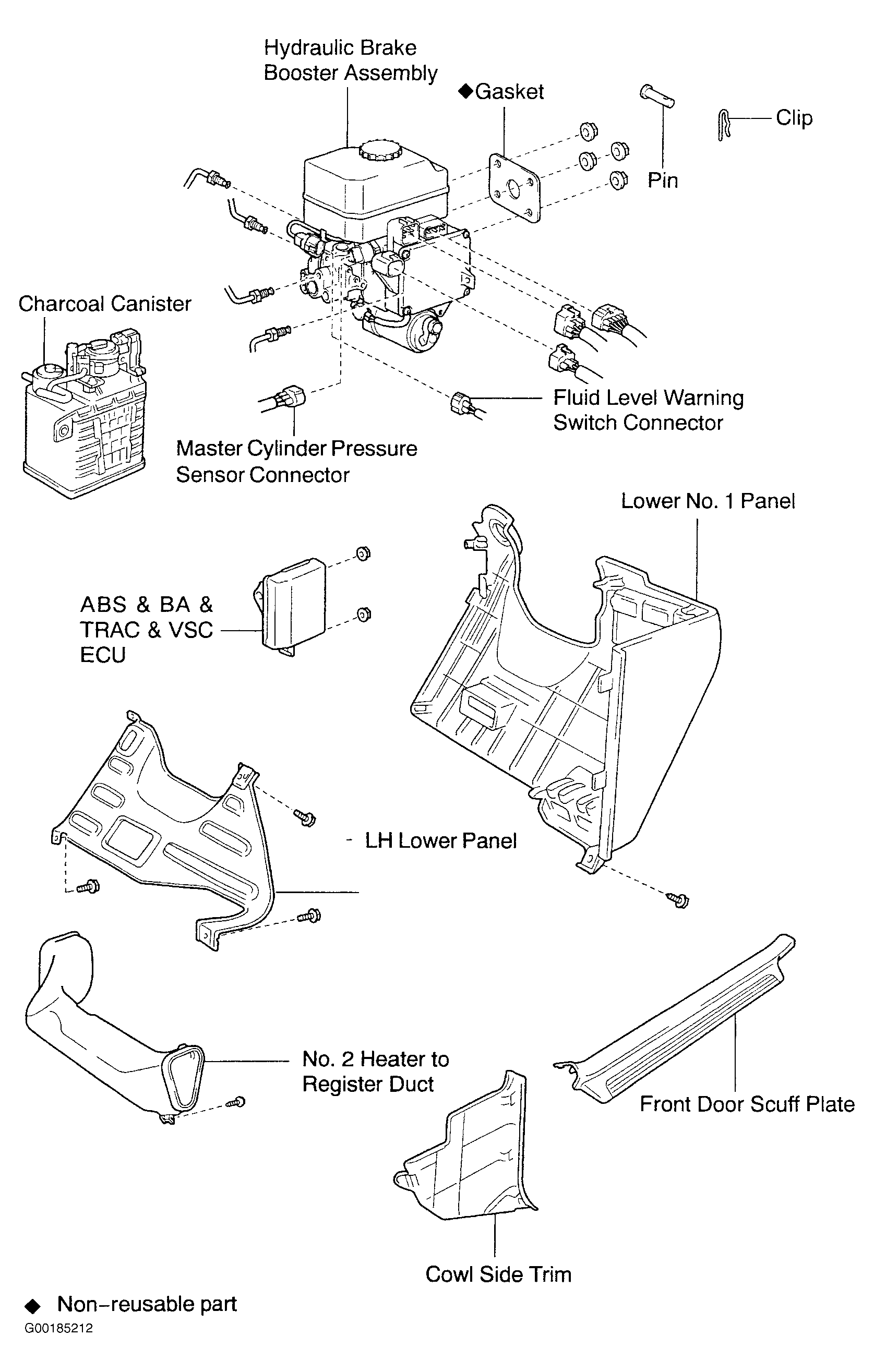

- Remove scuff plate, cowl side trim, lower No. 1 panel, left lower panel and No. 2 heater to register duct. See Fig 1.
- Remove the 2 nuts and ABS & TRAC & VSC ECU.
- Remove charcoal canister.
- For vehicles with ABS only, remove 4 connectors. For vehicles with ABS /TRAC/VSC, remove 5 connectors.
- Disconnect brake lines using special tool (09023-00100).
- Remove clip and clevis pin.
- Remove the 4 booster installation nuts and remove hydraulic brake booster assembly and gasket.
- To install, reverse removal procedure. Tighten all installation nuts to specification. See TORQUE SPECIFICATIONS .
- Check for leaks.
