Removal & Installation (4Runner)
WARNING: This page is about a different car, the 2002 Toyota Prius, 2002 Toyota Land Cruiser, 2002 Toyota 4Runner, 2001 Toyota Prius, and 2001 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

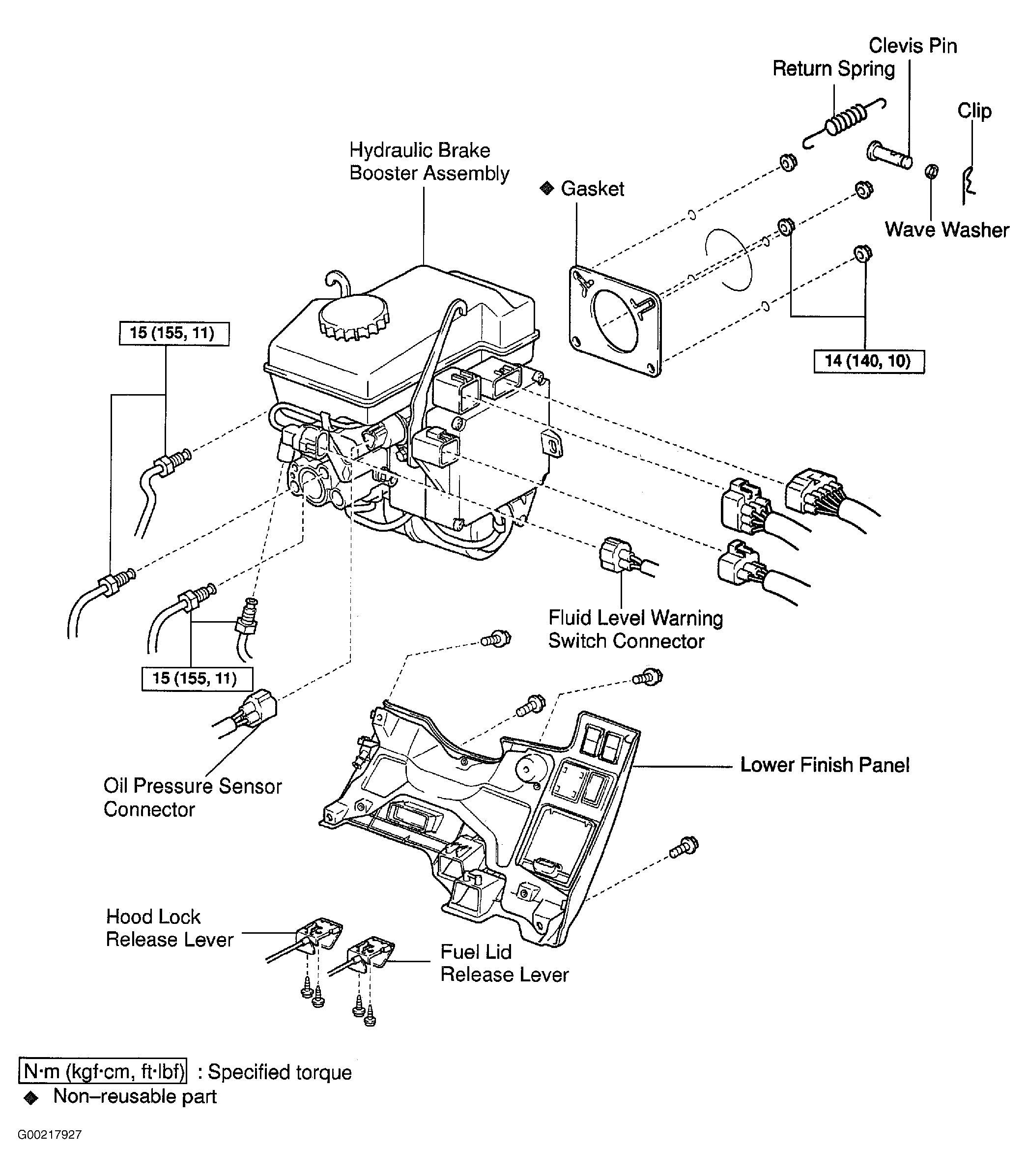

- Draw out fluid from booster with syringe. Remove lower finish panel, hood lock release lever and fuel lid release lever. See Fig 1. Disconnect 5 connectors.
- Using tool (09023-00100), disconnect 4 brake lines. Remove return spring, clip, wave washer and clevis pin. See Fig 1. Remove 4 booster installation nuts, remove booster assembly and gasket.
CAUTION:
As high pressure is applied to the brake actuator No. 1 tube, never deform tube.
NOTE:
Do not turn on ignition until work is complete.
