Removal (Front)

WARNING: This page is about a different car, the 2003 Lexus LS 430, 2002 Lexus LS 430, and 2001 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

Remove right front wheel and fender liner.
Disconnect harness connector. See Fig 1.
Remove holder. Spread clip. Slowly pull air tube connected to height control compressor straight out.
Using special tool (09730-00010), disconnect the other 3 air tubes. See Fig 2.
Remove 2 nuts and front height control valve.
Remove 2 cushions and spacers.

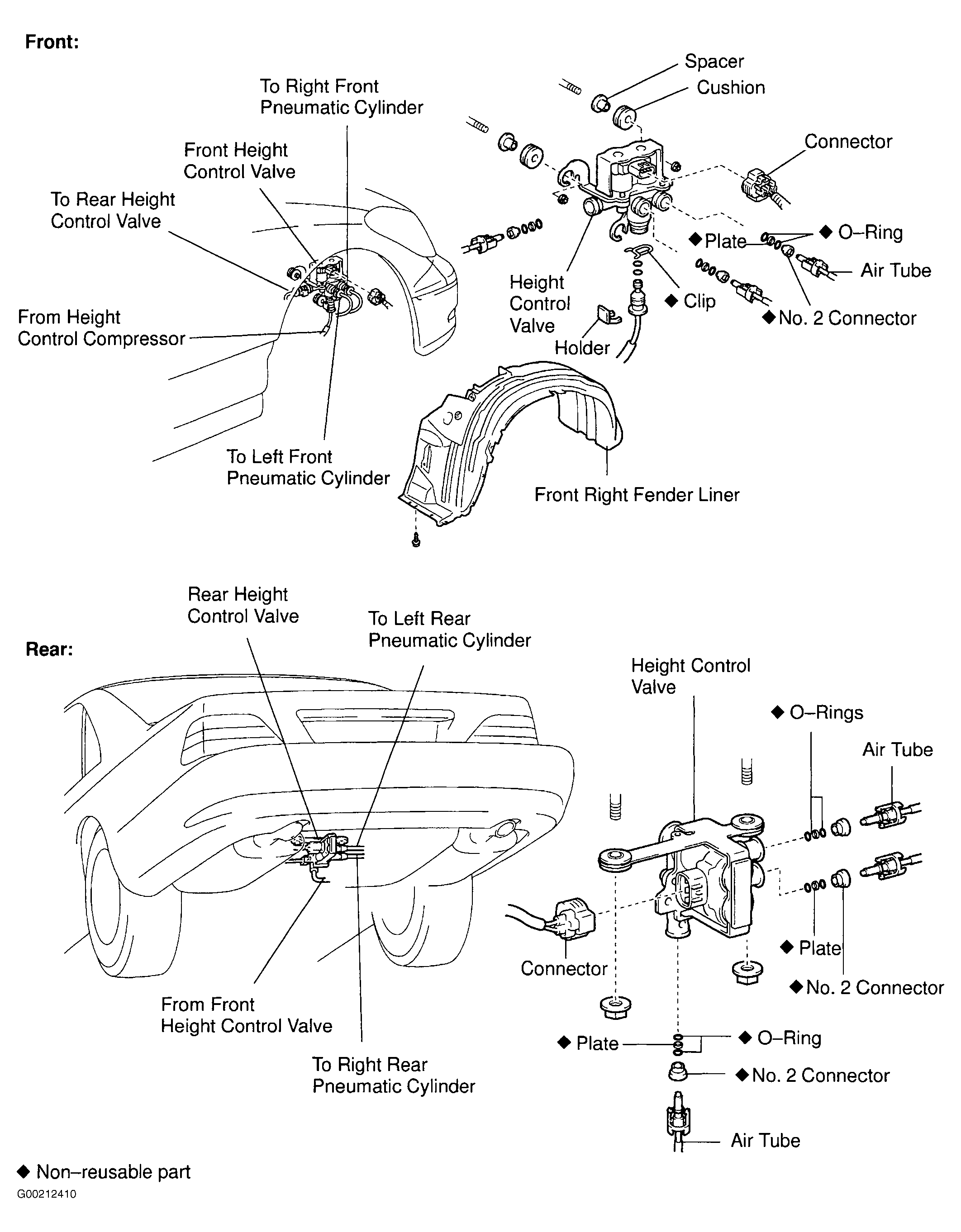

Fig 1: Locating Height Control Valve Components

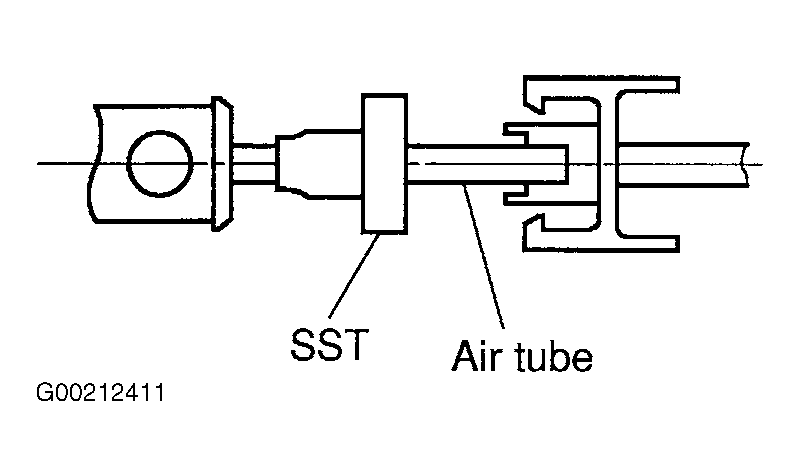

Fig 2: Removing Air Tube
