Height Control Sensor (Rear): Removal

WARNING: This page is about a different car, the 2003 Lexus LS 430, 2002 Lexus LS 430, and 2001 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear wheel.
Disconnect harness connector. See Fig 1.
Place matchmarks on height control sensor link and bracket. See Fig 2.
Remove link-to-bracket nut and disconnect sensor link.
Remove 2 bolts and rear height control sensor.

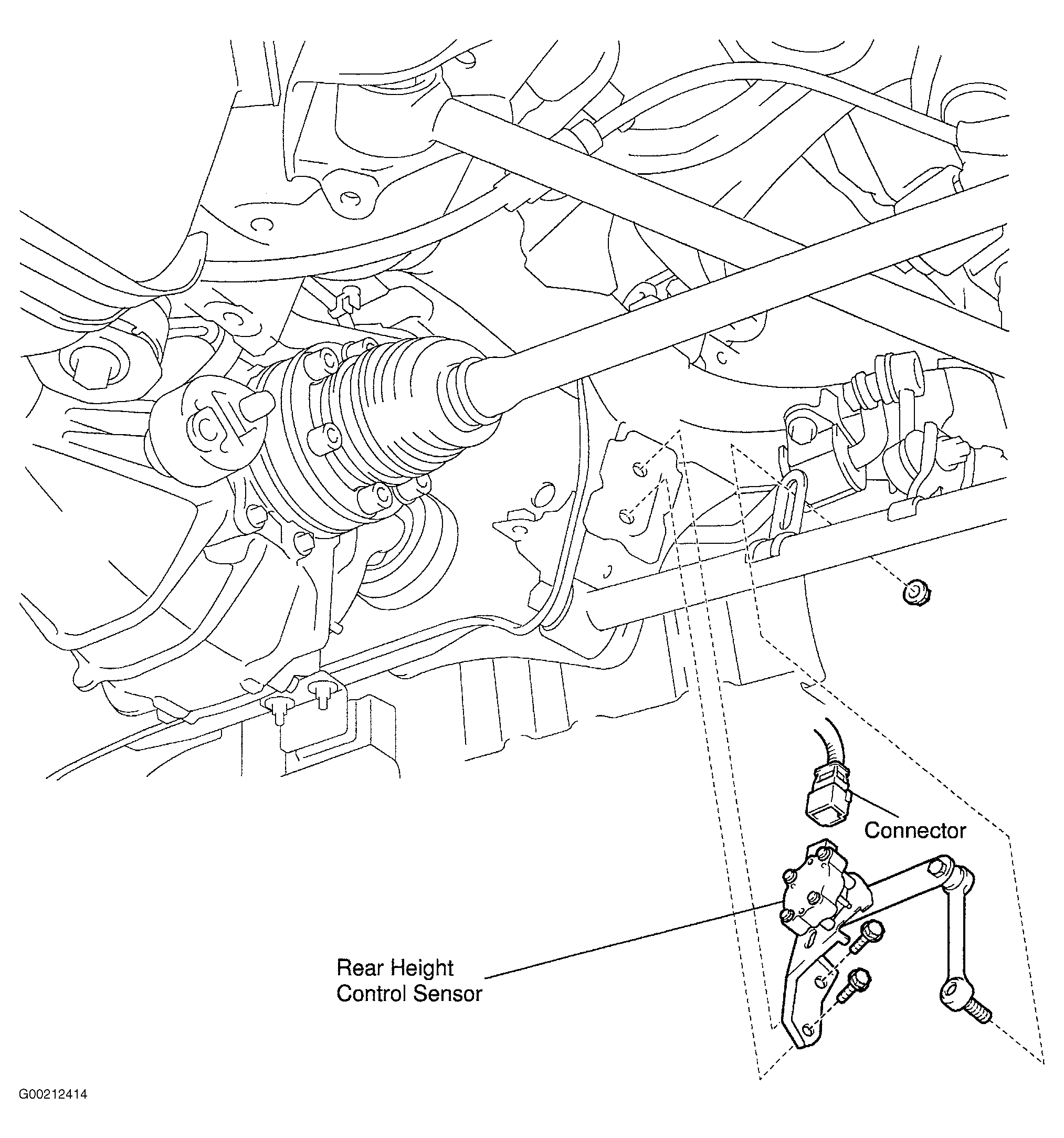

Fig 1: Locating Rear Height Control Sensor Components

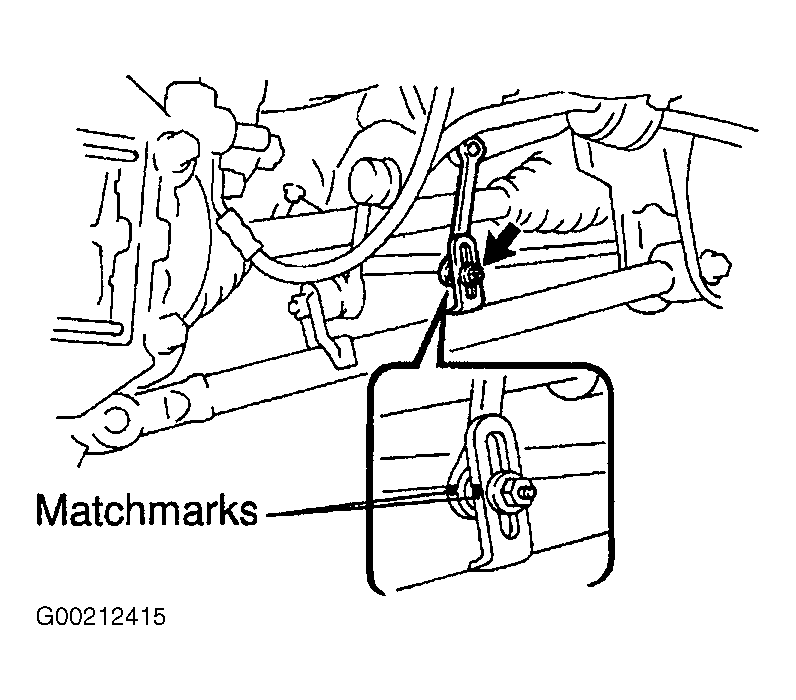

Fig 2: Locating Matchmarks For Rear Height Control Sensor
