Height Control Sensor & Acceleration Sensor (Front): Removal

WARNING: This page is about a different car, the 2003 Lexus LS 430, 2002 Lexus LS 430, and 2001 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

Remove left front wheel and fender liner. See Fig 1.
Disconnect harness connector.
Place matchmarks on the link and bracket. See Fig 2.
Remove nut and disconnect sensor link.
Remove 2 bolts and height control sensor.

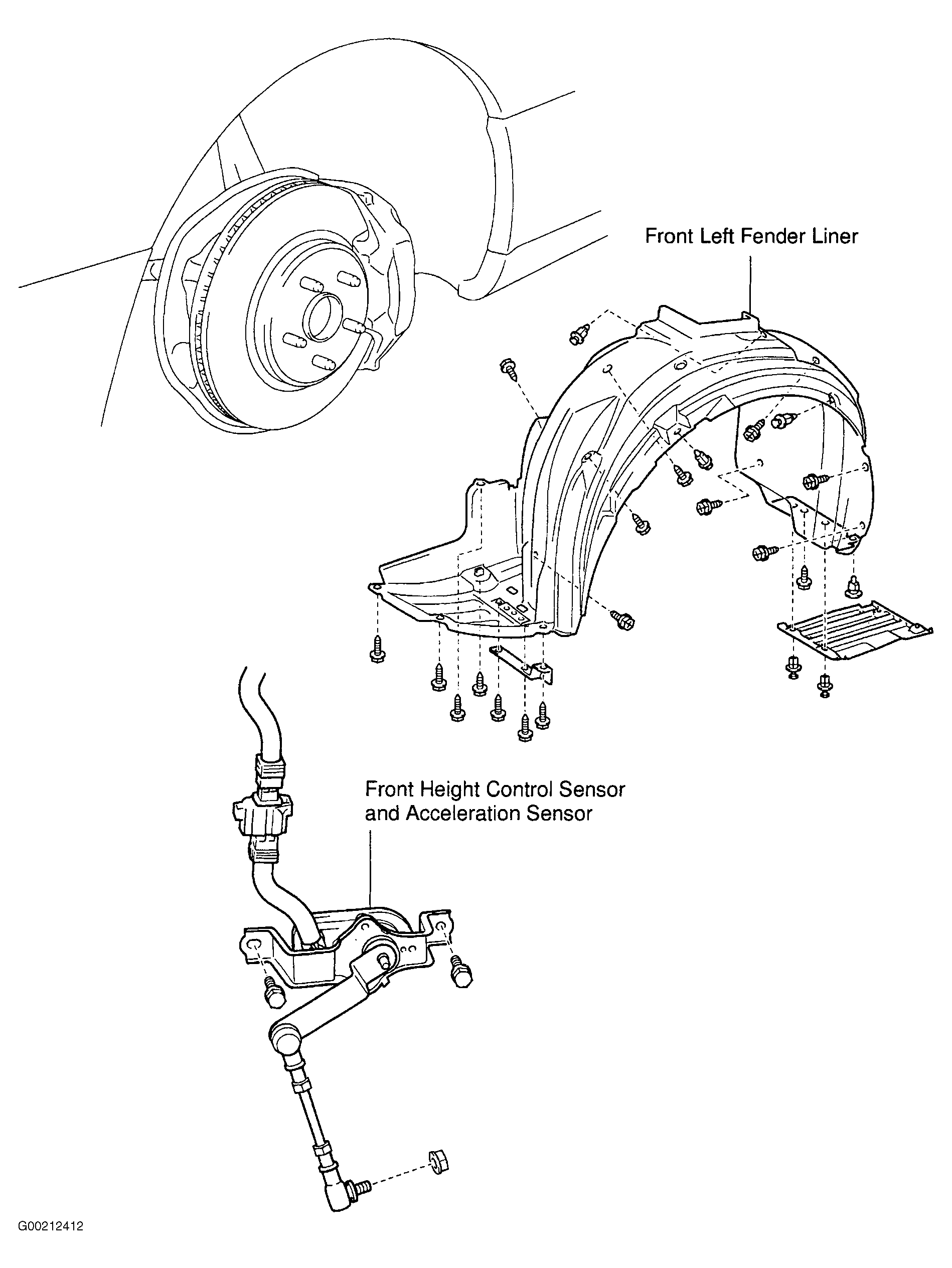

Fig 1: Locating Front Height Control Sensor & Acceleration Sensor Components

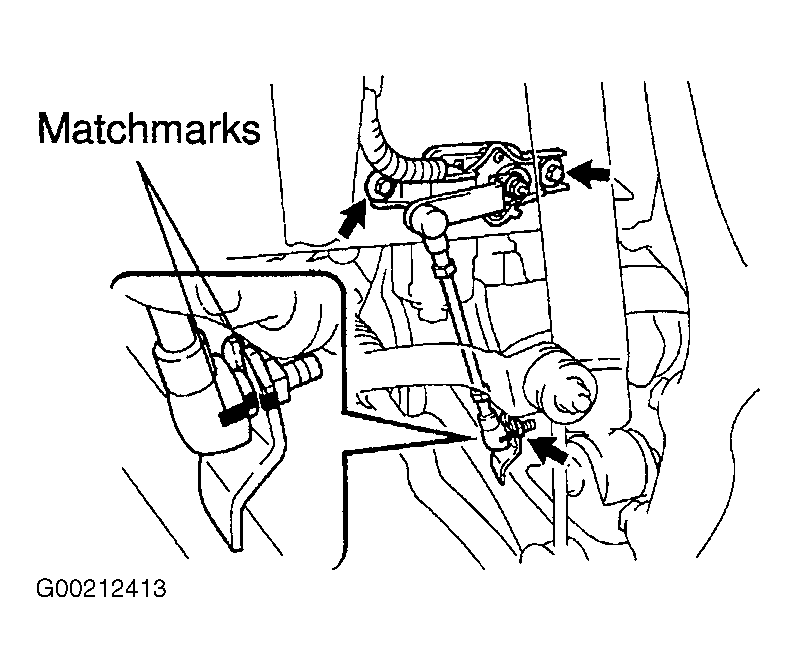

Fig 2: Placing Matchmarks On Link & Bracket
