Height Control Compressor & Dryer: Removal

WARNING: This page is about a different car, the 2003 Lexus LS 430, 2002 Lexus LS 430, and 2001 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove right front wheel.
  2. Remove right front fender liner. See Fig 1.
  3. Disconnect the harness connector.
  4. Remove holder, spread clip and slowly pull air tube straight out.
  5. Remove 4 bolts and height control compressor and dryer with bracket. See Fig 2.
  6. Remove 3 bolts, bushing and bracket from height control compressor. See Fig 3.
  7. Remove bolt and slowly pull out dryer along the dryer axis from height control compressor. Do not damage O-ring on compressor side.

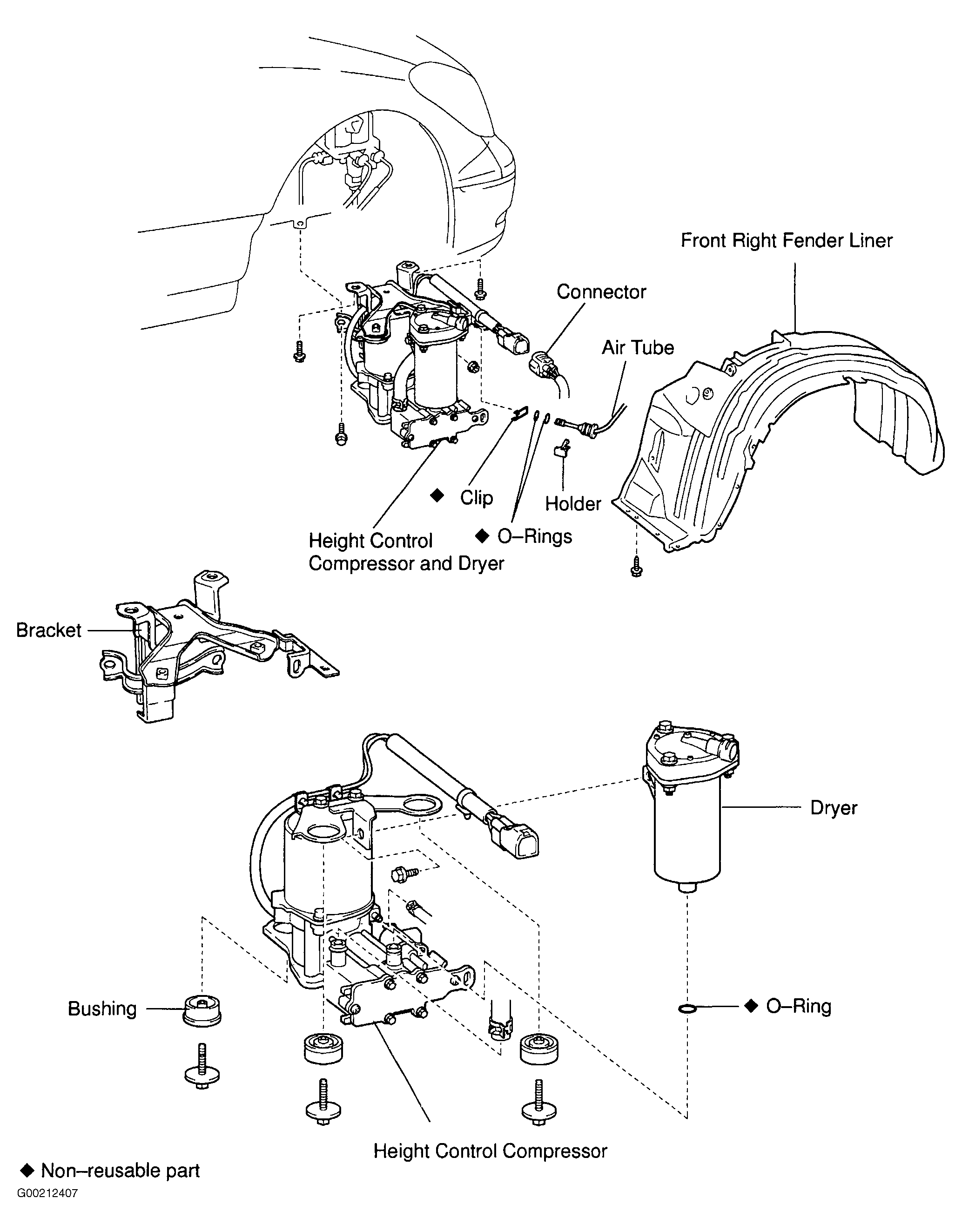

Fig 1: Locating Height Control Compressor & Dryer Components
G00212407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

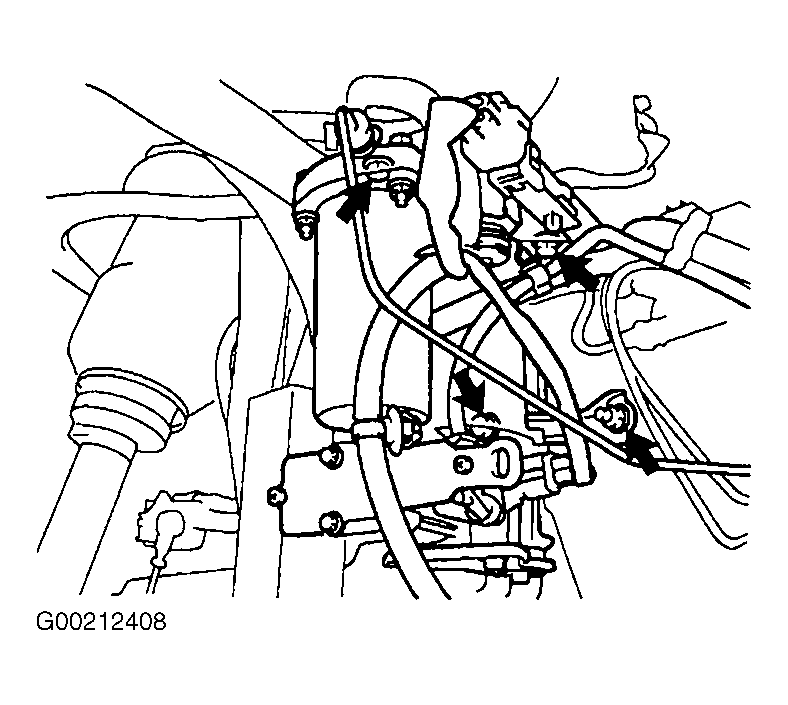

Fig 2: Removing Height Control Compressor & Dryer With Bracket
G00212408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

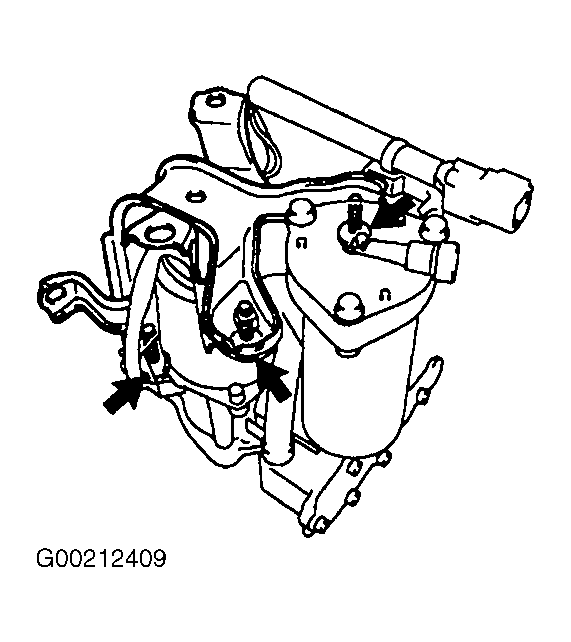

Fig 3: Removing Bracket From Height Control Compressor
G00212409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
