Rear Vehicle Height
WARNING: This page is about a different car, the 2003 Lexus LS 430, 2002 Lexus LS 430, and 2001 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

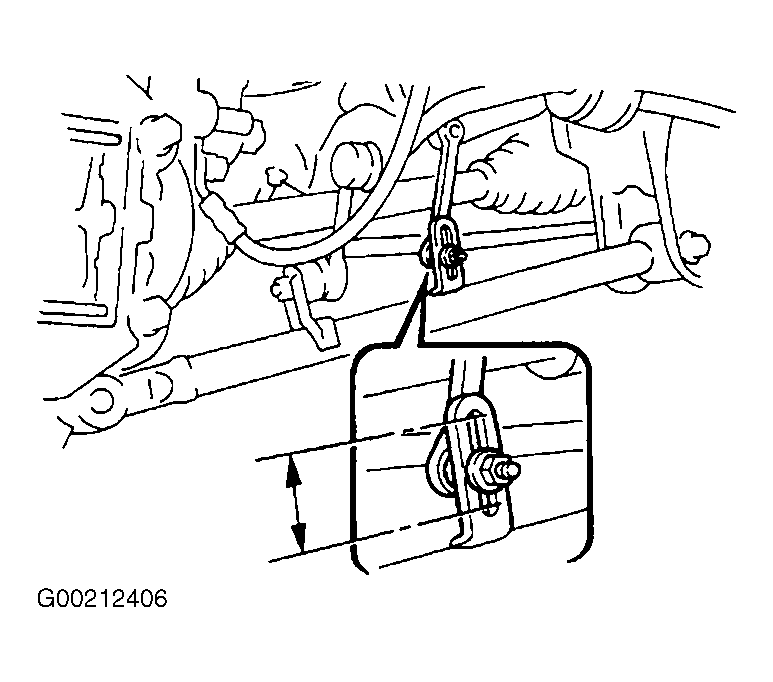

To adjust rear vehicle height, move the installation position of the link on lower arm. See Fig 1. When the link is moved .04 inches (1 mm), vehicle height is adjusted approximately .08 inches (2 mm).
