Front Wiper Motor: Installation

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Ensure snow clutch is in normal position. Tighten all fastening devices to specification. See TORQUE SPECIFICATIONS . To install wiper arms, operate front wiper motor once and turn wiper/washer switch off. Install wiper arms and tighten nuts by hand.
Adjust wiper arms to correct position. See WIPER ARMS under ADJUSTMENTS . Tighten wiper arm nuts to specification. See TORQUE SPECIFICATIONS .

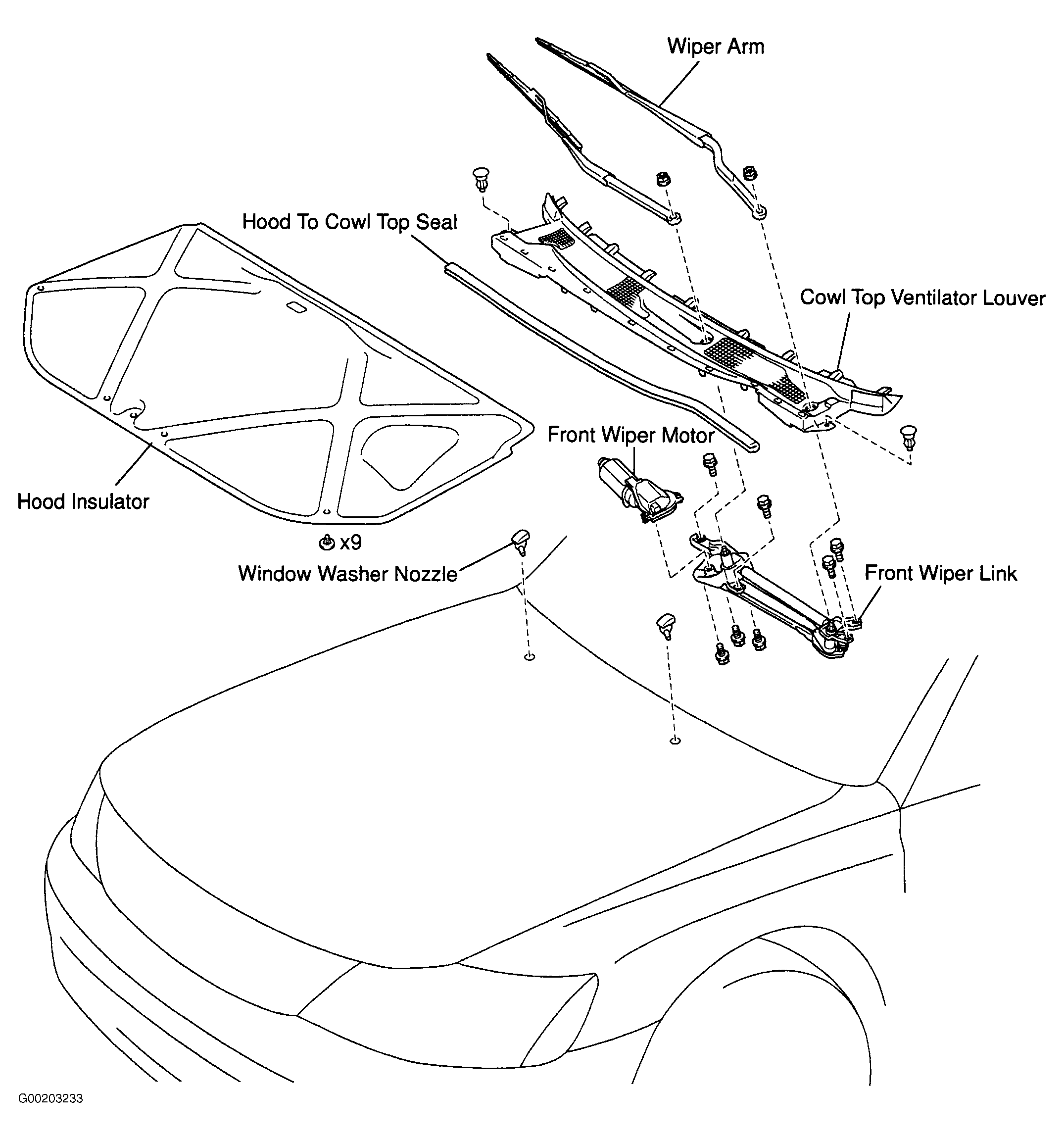

Fig 1: Exploded View Of Front Wiper Motor Components
