Washer Nozzles
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

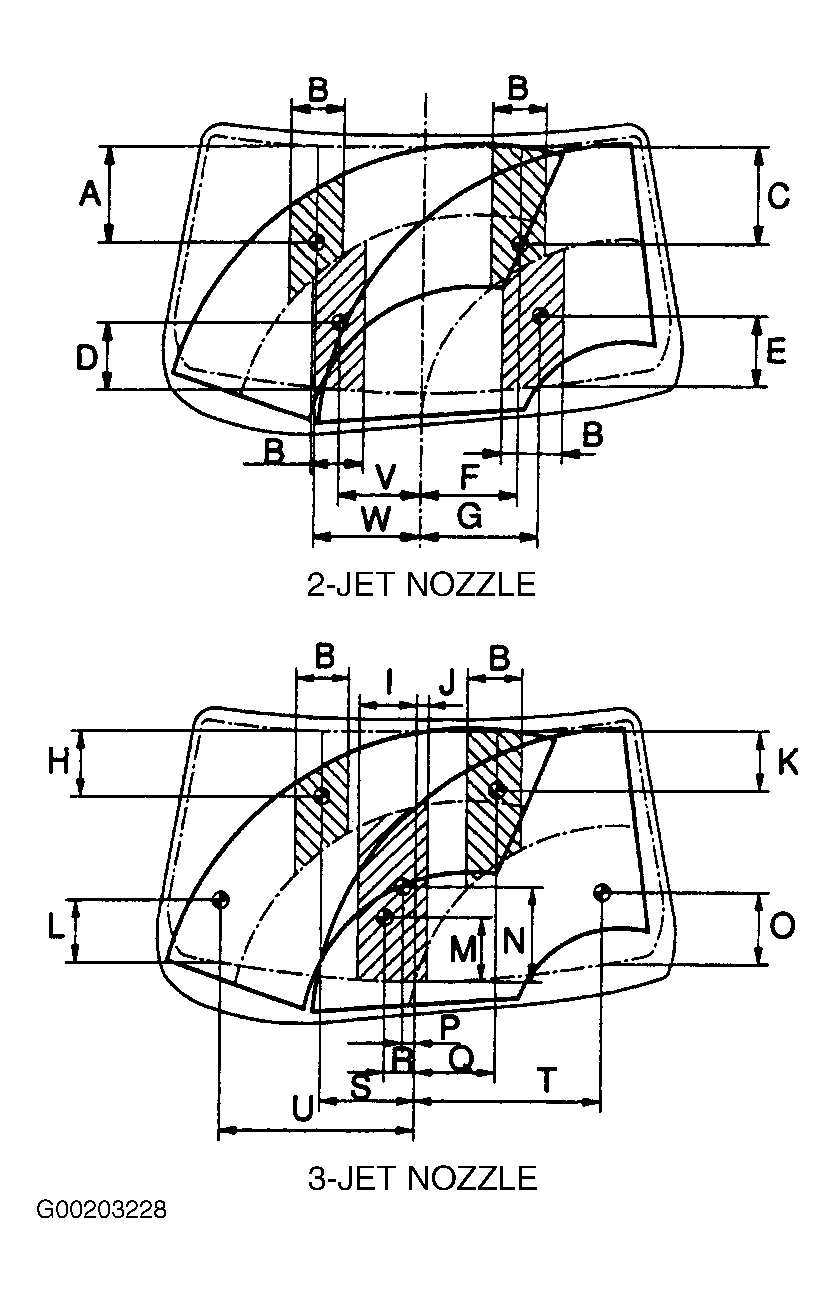

Adjust washer nozzles to ensure point where washer fluid from upper nozzles hits the windshield and the upsurge area are within specified range. See Fig 1. See WASHER NOZZLE ADJUSTMENT table. To adjust nozzle, fabricate a washer nozzle adjusting tool as shown in illustration to change direction of nozzle. See Fig 2.
WASHER NOZZLE ADJUSTMENT
| Nozzle Spray Area | In. (mm) |
|---|---|
| A | 14.17 (360) |
| B | 5.91 (150) |
| C | 14.57 (370) |
| D | 7.48 (190) |
| E | 7.87 (200) |
| F | 8.66 (220) |
| G | 16.93 (430) |
| H | 10.43 (265) |
| I | 6.50 (165) |
| J | 1.38 (35) |
| K | 8.46 (215) |
| L | 7.09 (180) |
| M | 6.89 (175) |
| N | 10.43 (265) |
| O | 7.68 (195) |
| P | 1.57 (40) |
| Q | 9.06 (230) |
| R | 3.54 (90) |
| S | 10.63 (270) |
| T | 21.46 (545) |
| U | 19.88 (505) |
| V | 5.12 (130) |
| W | 13.78 (350) |
