Testing Procedure

WARNING: This page is about a different car, the 2003 Lexus LS 430, 2002 Lexus LS 430, and 2001 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram see Fig 1. For testing procedure see Fig 2-Fig 4 .

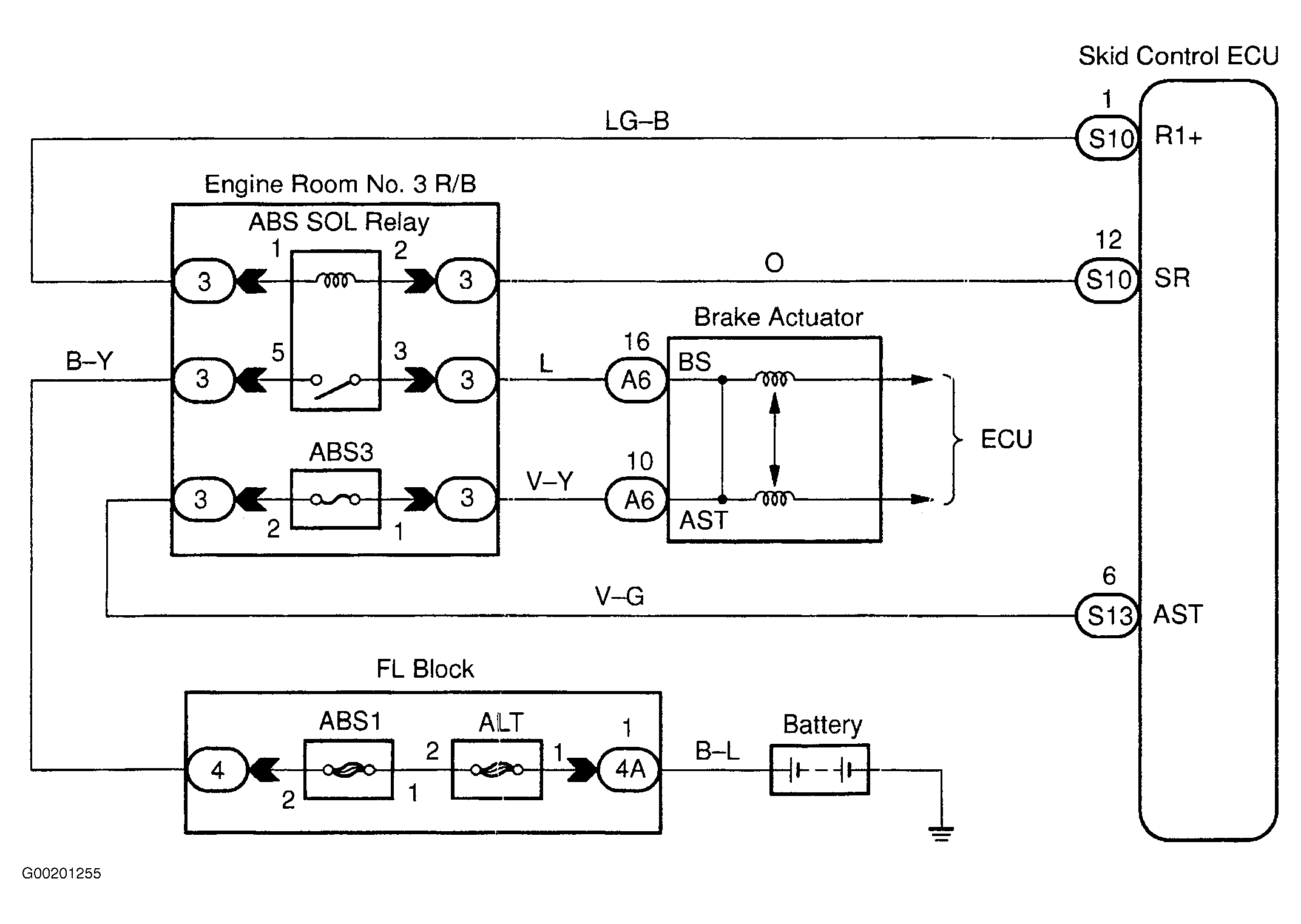

Fig 1: ABS SOL Relay Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

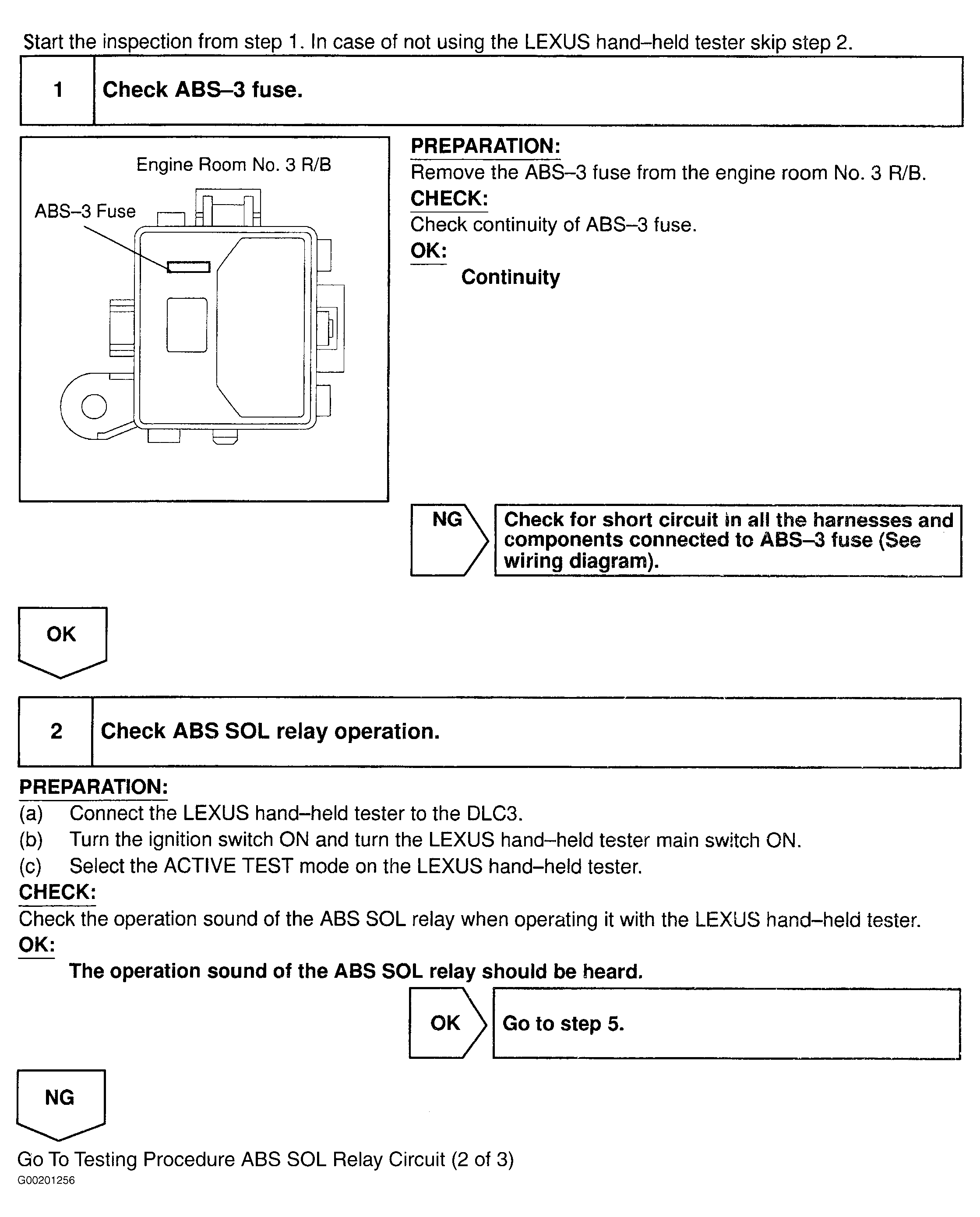

Fig 2: Testing Procedure ABS SOL Relay Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

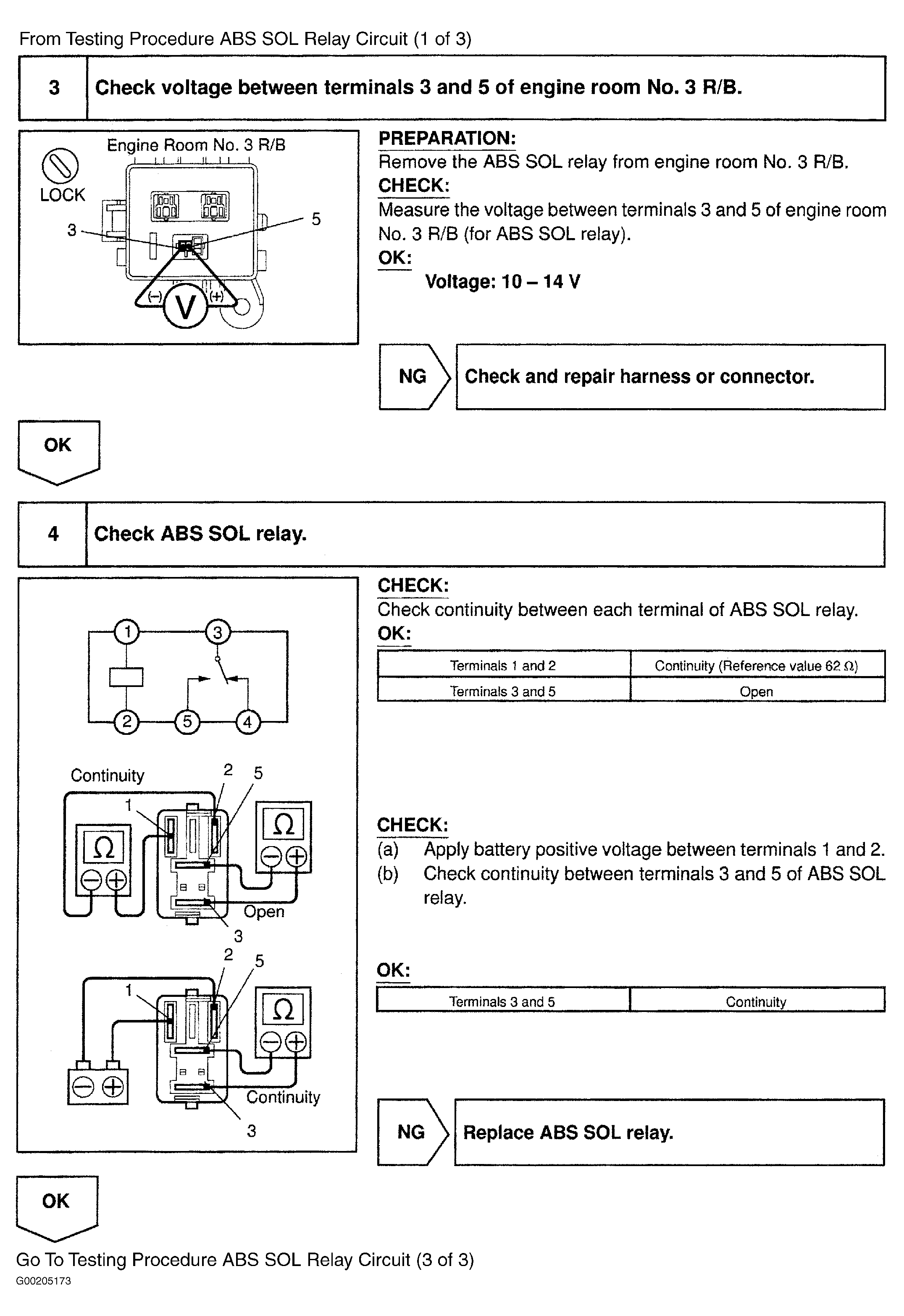

Fig 3: Testing Procedure ABS SOL Relay Circuit (2 Of 3)

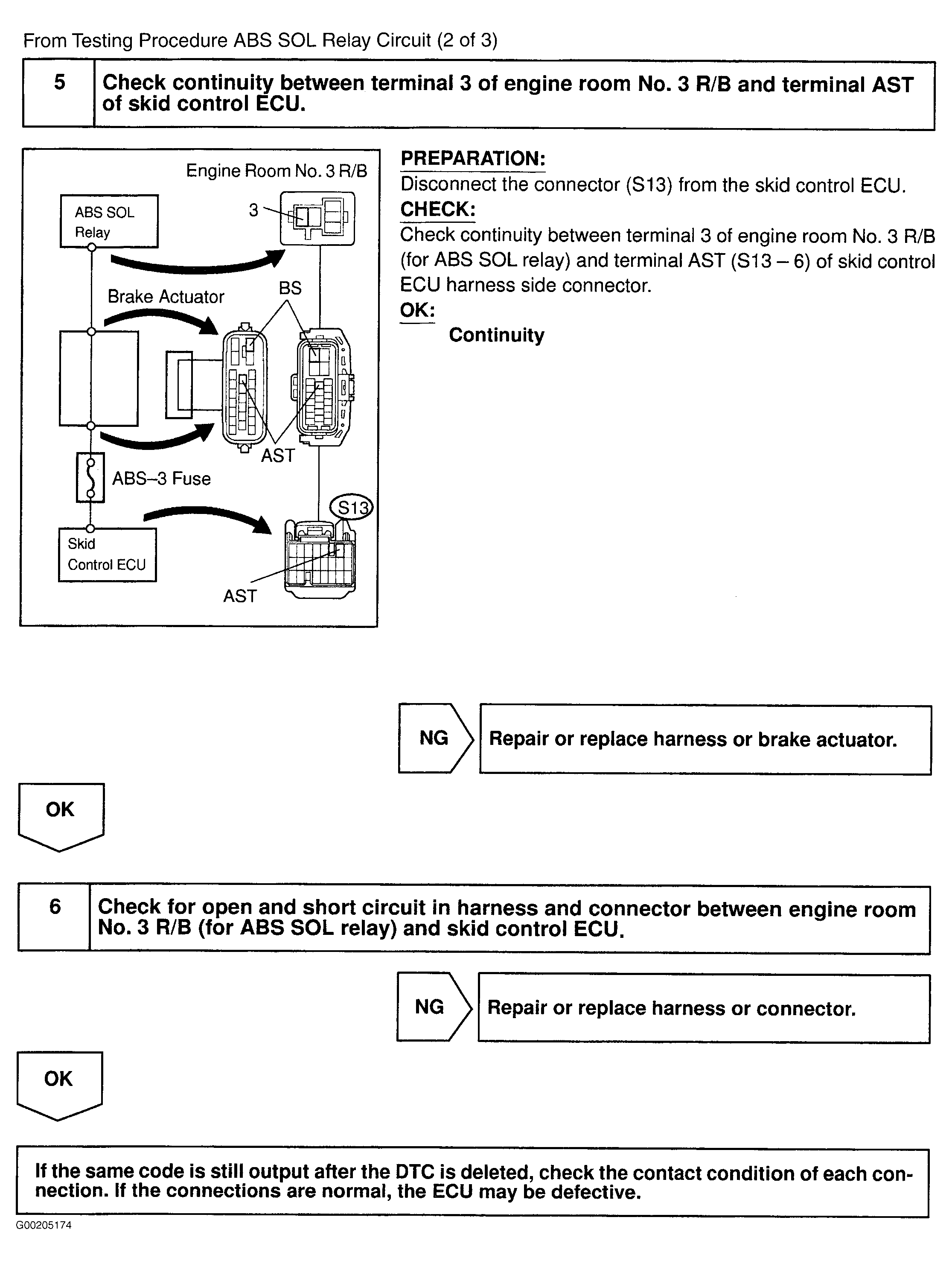

Fig 4: Testing Procedure ABS SOL Relay Circuit (3 Of 3)
