Circuit Description

WARNING: This page is about a different car, the 2003 Lexus LS 430, 2002 Lexus LS 430, and 2001 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

For description see Fig 1.

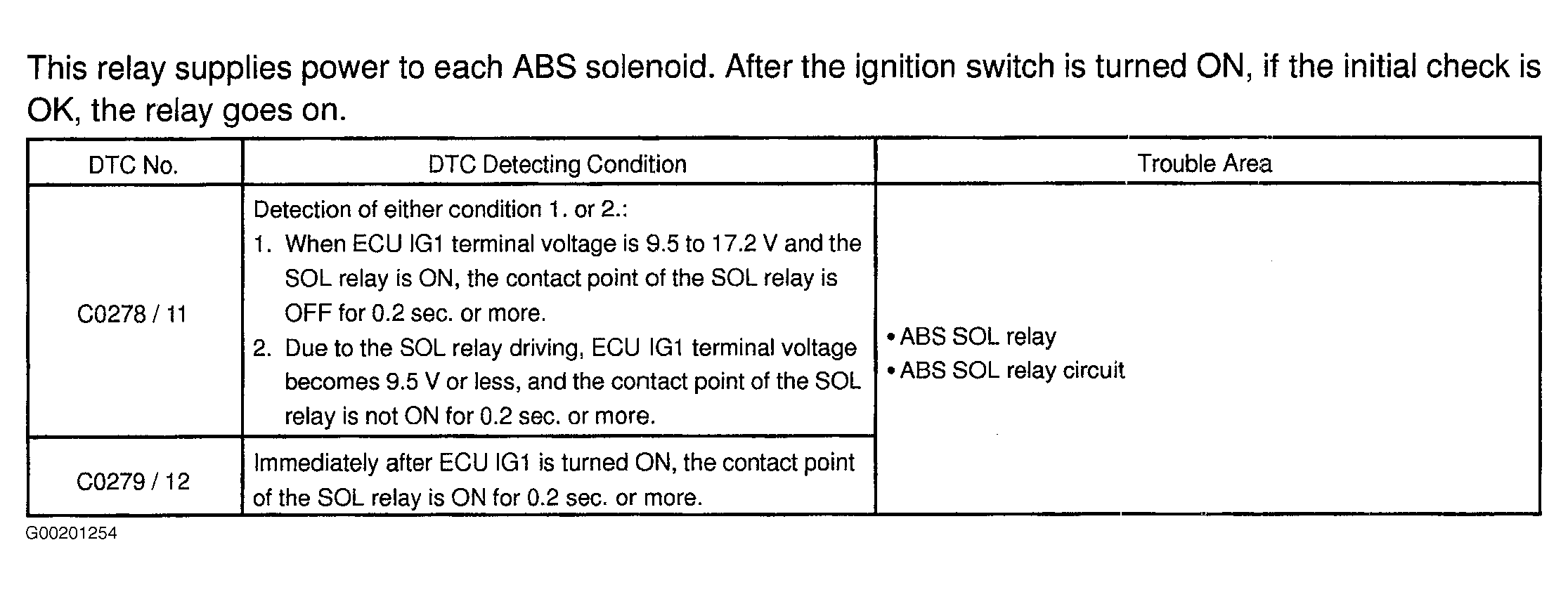

Fig 1: Circuit Description ABS SOL Relay Circuit
