Circuit Description

WARNING: This page is about a different car, the 2003 Lexus LS 430, 2002 Lexus LS 430, and 2001 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description see Fig 1. To calibrate see YAW RATE SENSOR ZERO POINT CALIBRATION under PROGRAMMING.

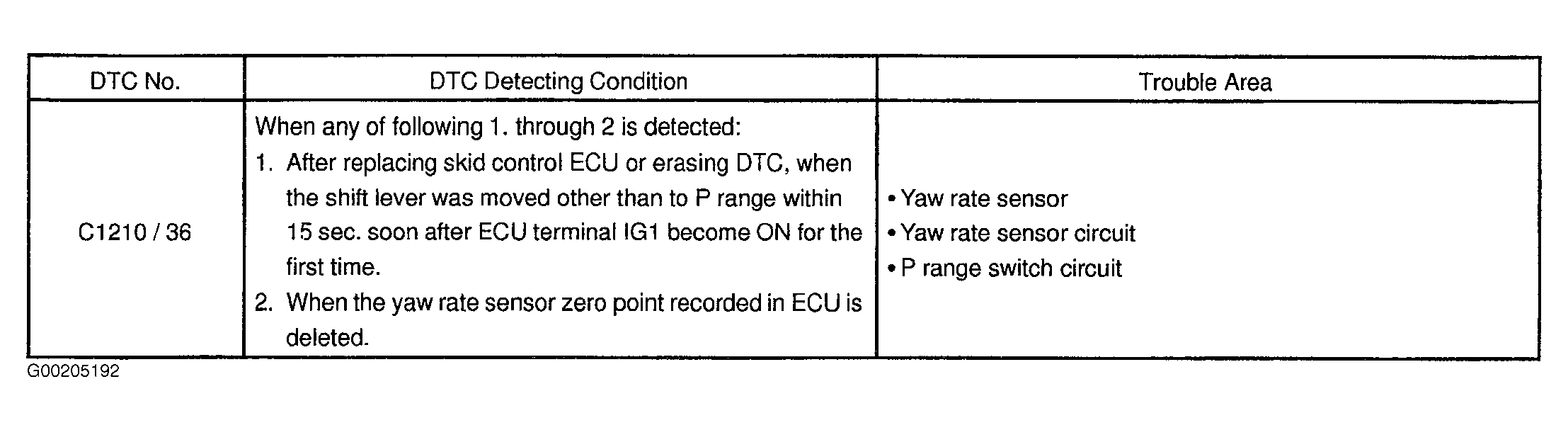

Fig 1: Circuit Description Zero Point Calibration Of Yaw Rate Sensor Undone
