Power Seats - With Driving Position Memory
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Trouble shooting of the power seat with driving position memory MUST begin with the multiplex communication system. See MULTIPLEX CONTROL SYSTEMS - AVALON
article under COMMUNICATION DEVICES in ACCESSORIES & EQUIPMENT. If the multiplex communication system is functioning properly and no diagnostic trouble codes are stored, the body control system must be interrogated next to determine if the power seat ECU can properly communicate with body control ECU. See BODY CONTROL SYSTEMS - AVALON
article under COMMUNICATION DEVICES in ACCESSORIES & EQUIPMENT.

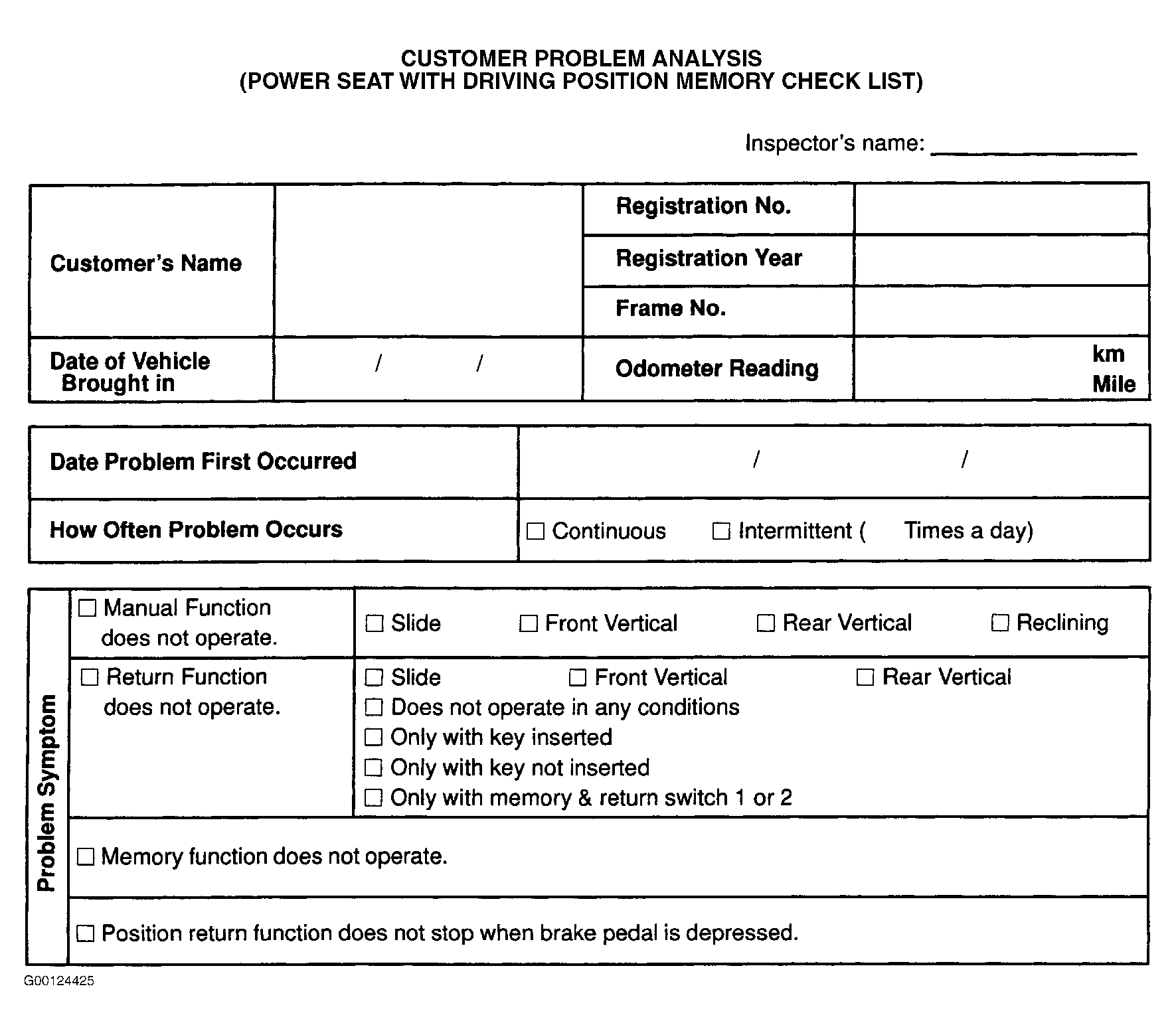

- Trouble shooting of a power seat with driving position memory complaint begins with verification of the customer problem. Perform Customer Problem Analysis (Power Seat With Driving Position Memory Check List). See Fig 1. If problem occurs, go to step 3. If problem does not occur, go to next step.
- If problem does not occur, review conditions under which problem occurred for customer. For example, if the problem occurs on rainy days or during high humidity conditions, sprinkle water onto vehicle and see if malfunction occurs. DO NOT sprinkle water directly into engine compartment or onto electronic components. Visually inspect for signs of mechanical and electrical damage. Inspect for blown fuses and damaged relays. Inspect for loose or corroded connections, damaged wiring harnesses and/or switches. Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Ensure any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. If problem still cannot be created, go to next step.
- Trouble shoot power seat with driving position memory by symptom and perform associated test. See POWER SEATS - WITH DRIVING POSITION MEMORY under SYSTEM TESTS. When performing trouble shooting for power seat with driving position memory, it may be necessary to perform pin voltage tests on power seat ECU to ensure proper voltage or input/output signals exist. See PIN VOLTAGE TESTS when directed by trouble shooting procedure.
- After problem has been identified and repaired, confirm repairs have resolved complaint. See CONFIRMATION TEST under SYSTEM TESTS.
