Removal & Installation
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

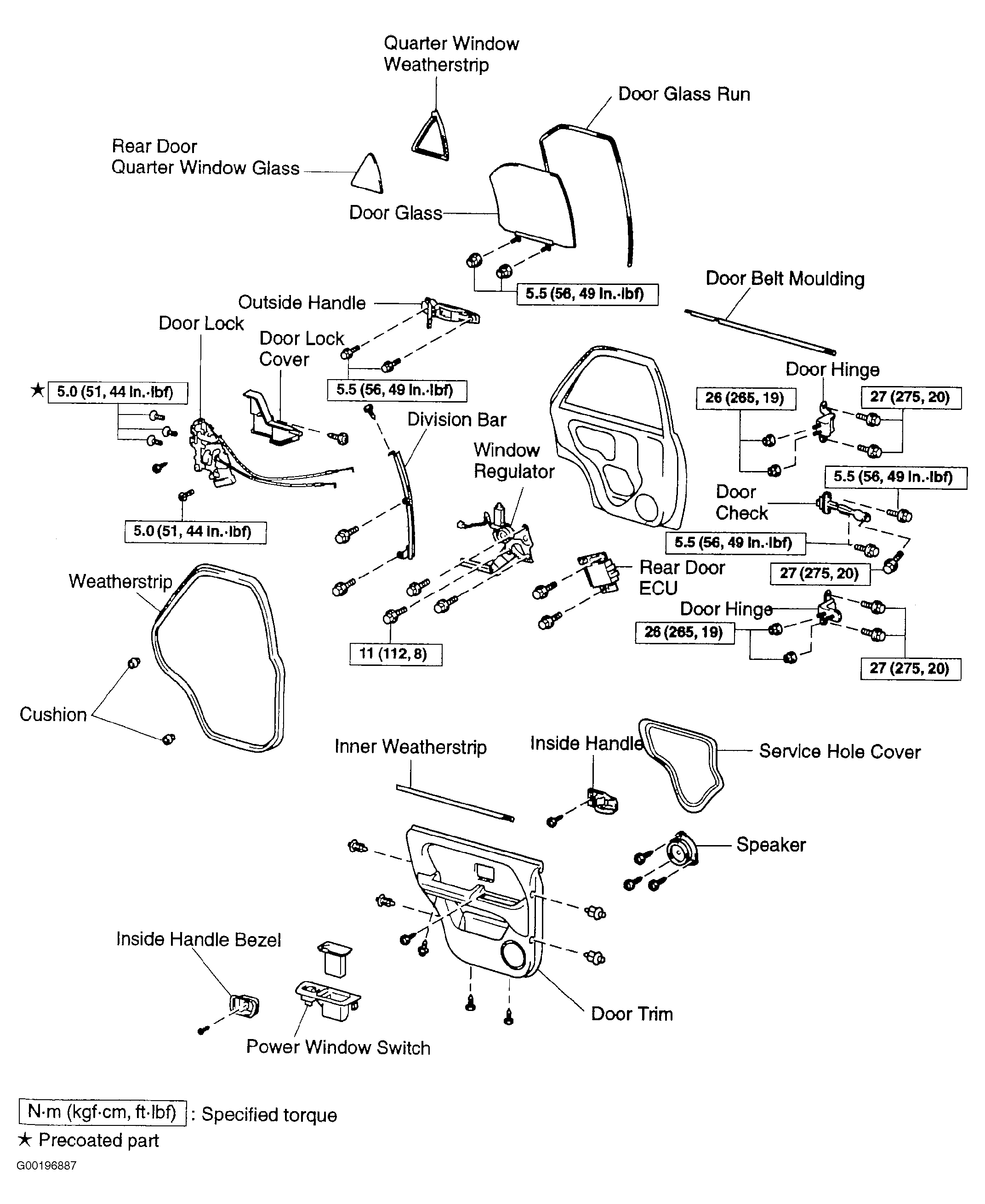

- Remove the door inside handle bezel. See Fig 1. Open the cap, then remove the screw. Using a screwdriver, remove the inside handle bezel.
- Using a screwdriver, remove the power window switch. Push in on the clip at front outside edge of switch panel. Push switch panel forward and remove it from armrest base. Disconnect electrical connectors.
- Remove the door trim panel. Remove the screw cover, 4 screws and 4 clips. Insert a screwdriver between the door trim and door panel to pry the door trim. Pull the door trim upward to remove the door trim. Release the claws, then remove the inner weatherstrip from the door trim.
- For installation, reverse the removal procedure.
NOTE:
Tape the screwdriver tip before use.
NOTE:
Tape the screwdriver tip before use.
NOTE:
Tape the screwdriver tip before use.
