Door Lock Assembly (Front): Installation
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
- Install the door lock cover with the 2 screws to the door lock.
- Put the door lock in the service hole.
- Connect the 2 connectors.
- Install the door lock with the 4 Torx screws. Torque the screws to 44 in. lbs. (5.0 N.m).
- Install the front door trim panel. See DOOR TRIM PANEL (FRONT) .
NOTE:

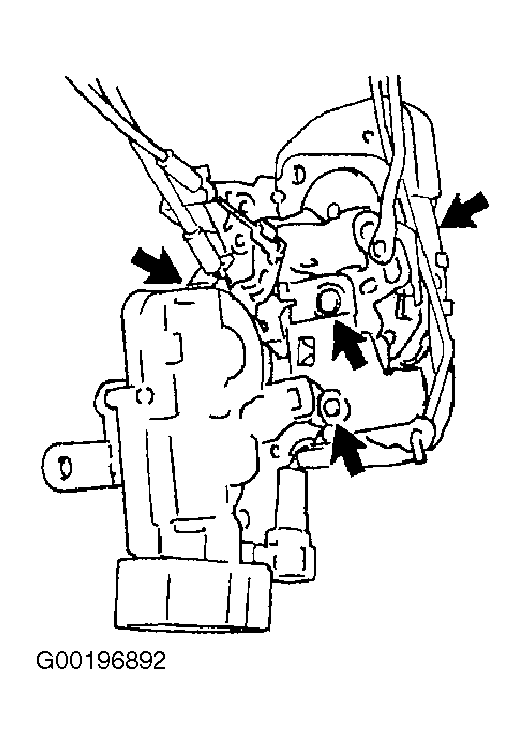

Apply MP grease to the sliding surface of the door lock. See Fig 1.
