Circuit Description

WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

This circuit provides power to operate the rear left door ECU. See Fig 1.

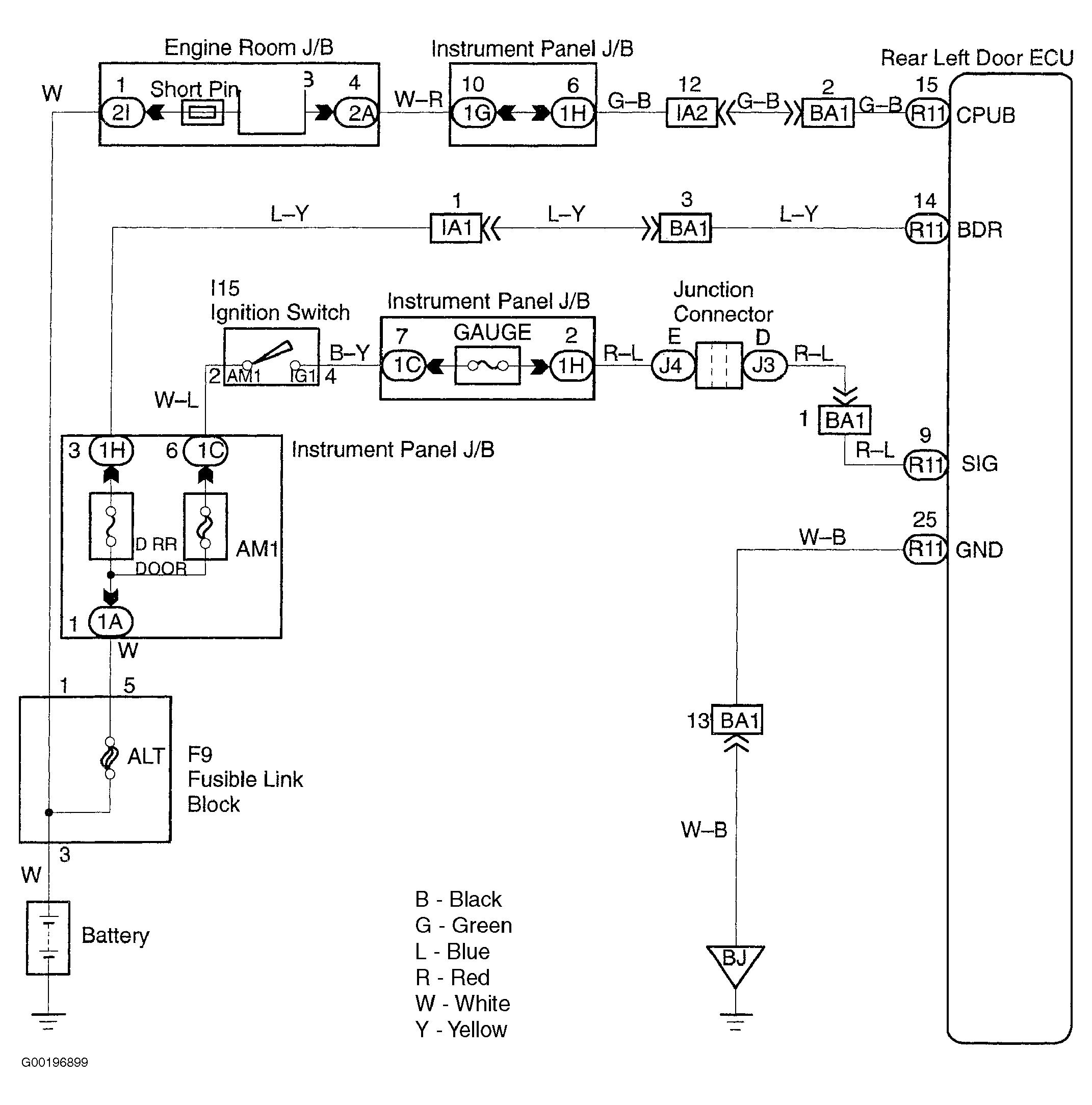

Fig 1: Identifying Rear Left Door Power Source Circuit
G00196899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
