Circuit Description

WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For rear left door lock motor circuit diagram, see Fig 1. For rear right door lock motor circuit diagram, see Fig 2.

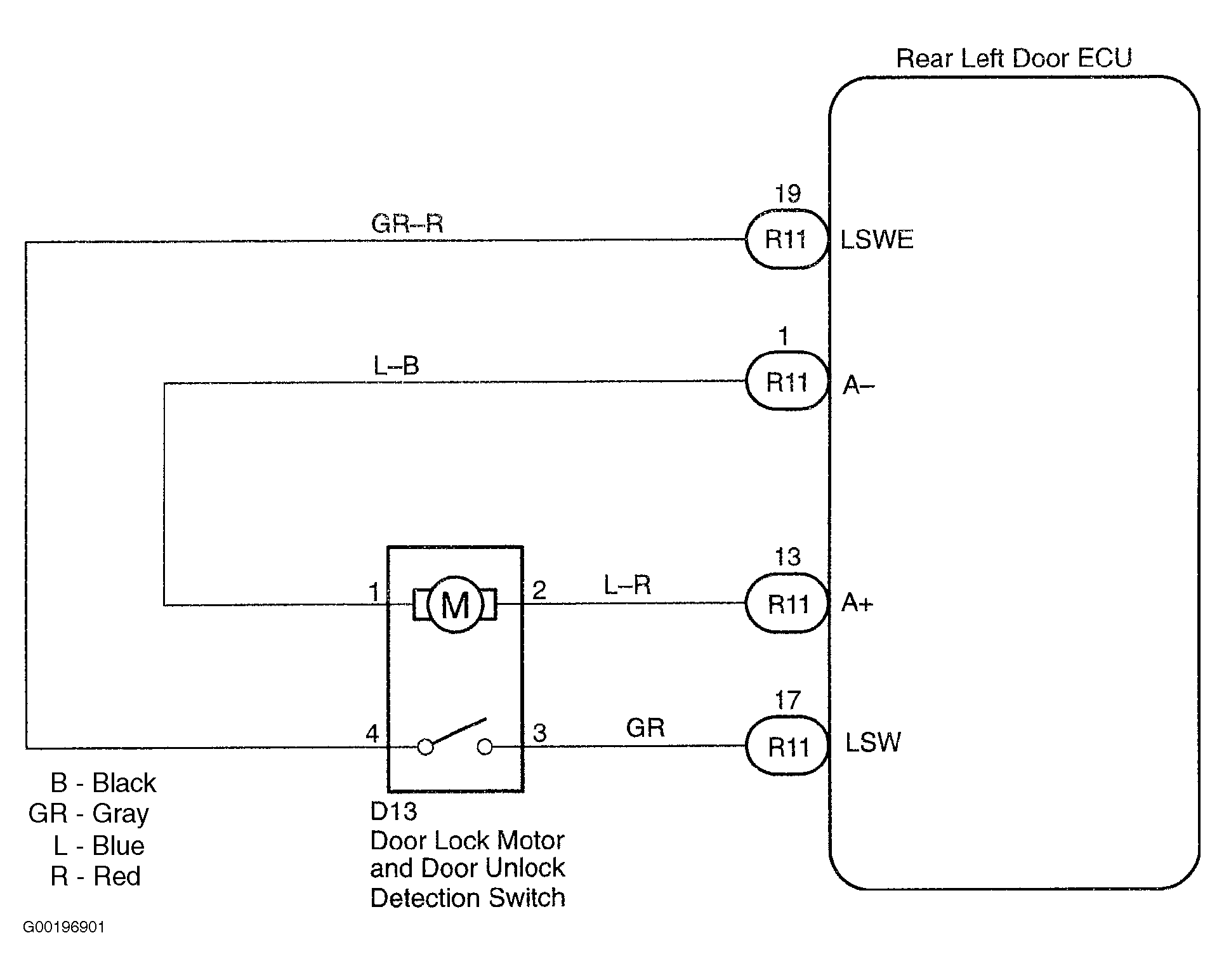

Fig 1: Identifying Rear Left Door Lock Motor & Unlock Detection Switch Circuit

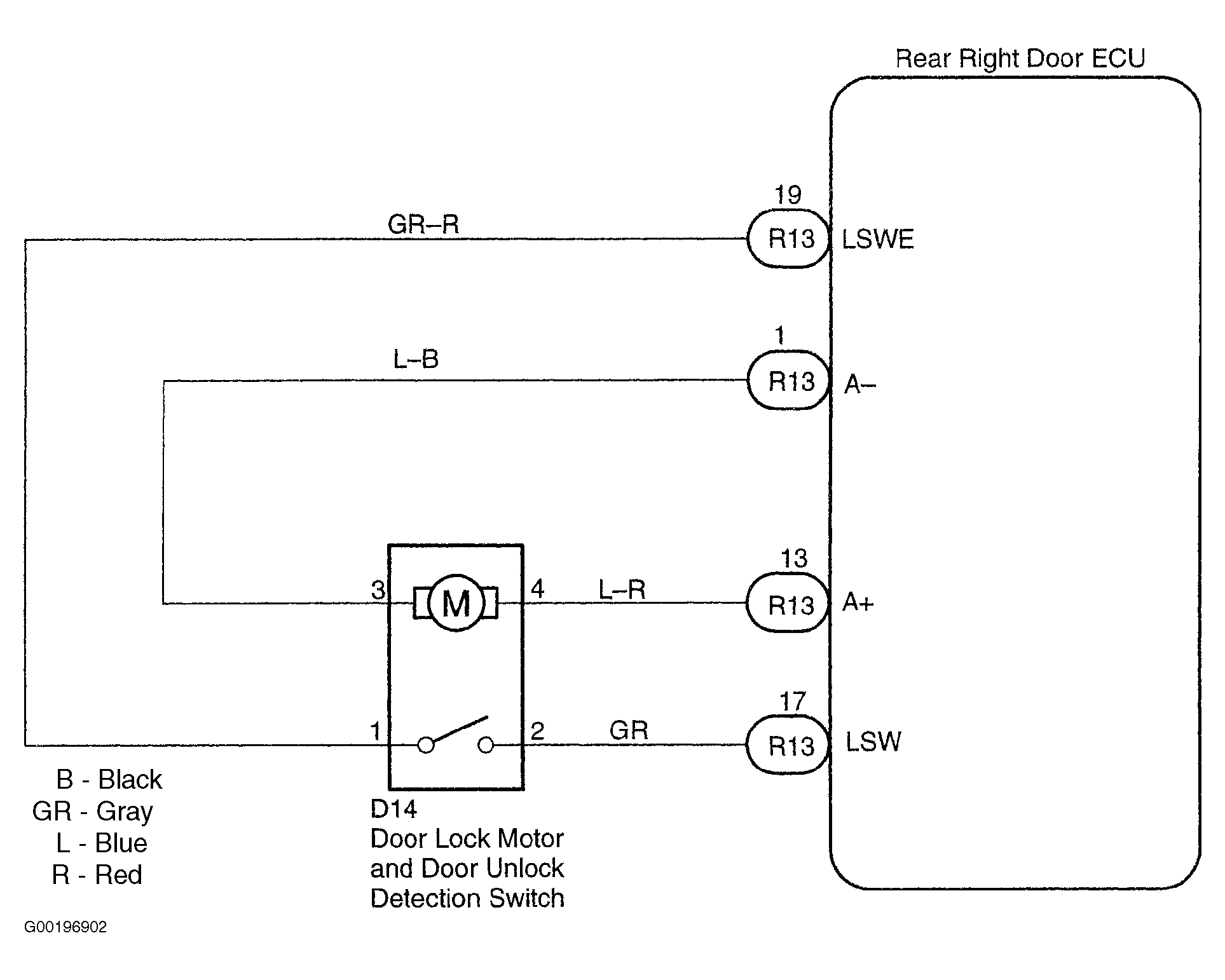

Fig 2: Identifying Rear Right Door Lock Motor & Unlock Detection Switch Circuit
