Window Regulator (Front Door): Installation
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

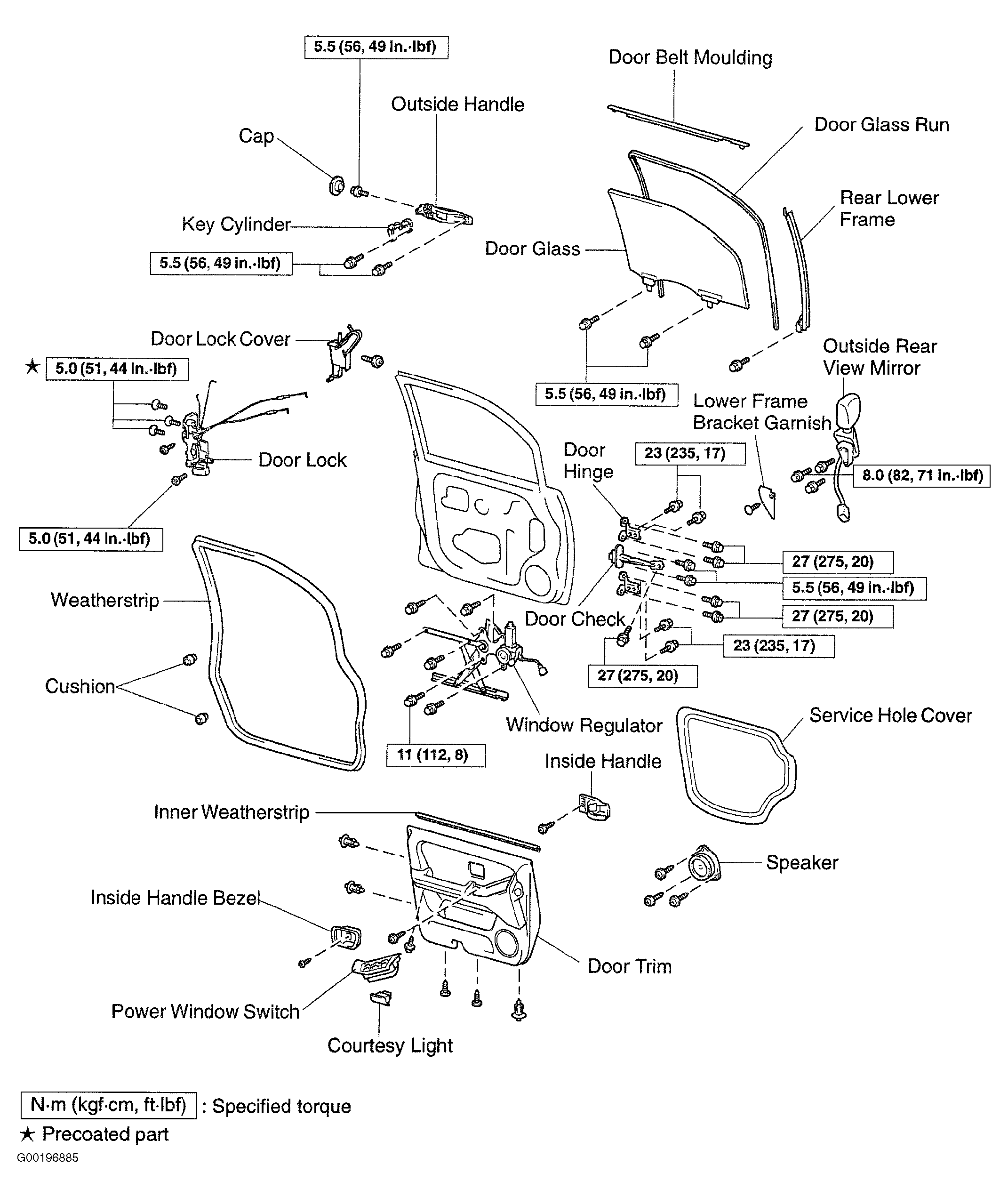

- Install the window regulator with the 6 bolts, through the service hole. See TORQUE SPECIFICATIONS table. Connect the connector. See Figure.
- Install the door glass run. Install the window glass. Put the door glass in the door panel carefully. Install the door glass with the 2 bolts to the window regulator. See TORQUE SPECIFICATIONS table.
- Install the door belt moulding. See Figure.
- Install the service hole cover to the door panel. Install the 2 grommets.
- Install the speaker with the 3 screws. Connect the connector.
- Install the inside handle. Connect the 2 cables, then install the inside handle with the screw. Check that the door lock knob moves securely to the LOCK and UNLOCK positions when moving the door lock knob. When the knob doesn't move to the LOCK and UNLOCK stop positions, move the locking cable installation position back and forth to adjust it.
- Install the door trim panel. See DOOR TRIM PANEL (FRONT) under REMOVAL & INSTALLATION under POWER DOOR LOCKS & LIFTGATE RELEASE article under DOOR LOCKS & ANTI-THEFT SYSTEMS in ACCESSORIES & EQUIPMENT.
NOTE:
Apply MP grease to the sliding and rotating parts of the window regulator. See Fig 1.
NOTE:
When installing the service hole cover, pull out the cables and connectors through the service hole cover.
