Moon Roof: Installation
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

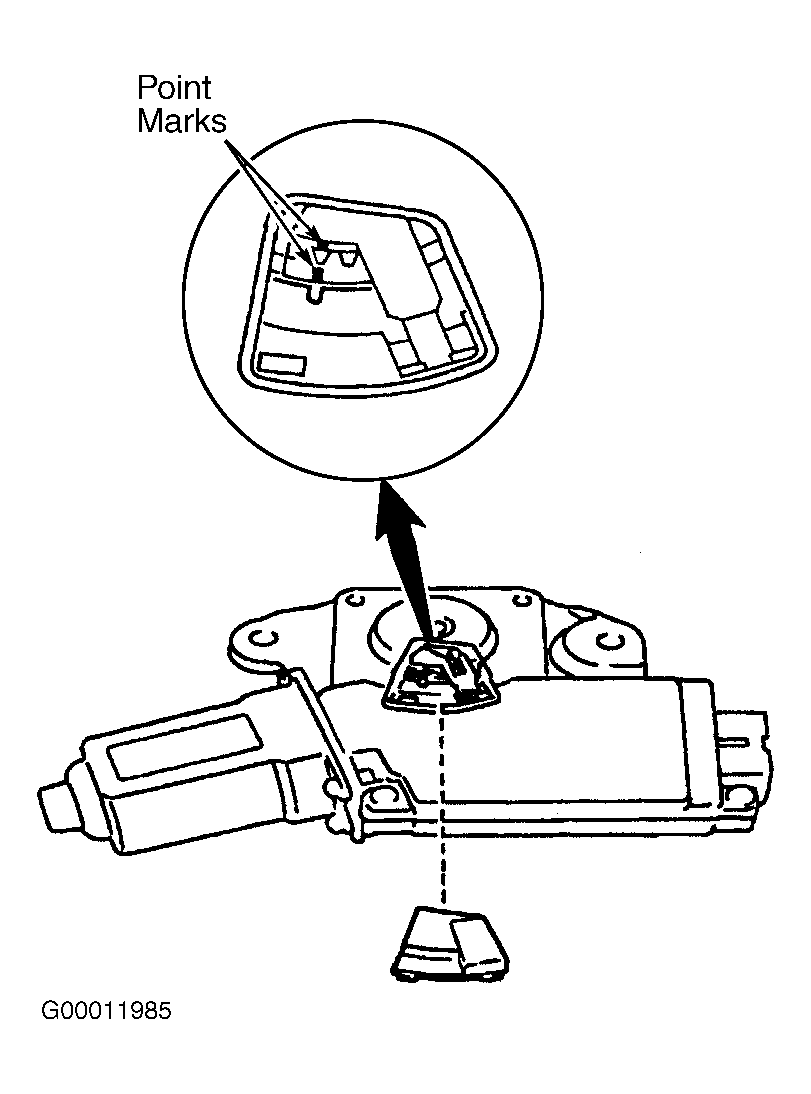

- Install the drive gear assembly. Using a screwdriver, remove the motor cover. Turn the drive shaft with the screwdriver to align the housing with gear point mark as shown in the illustration. See Fig 1. Install the motor cover. Install the front personal light bracket with the 2 screws to the gear assembly. Install the drive gear assembly with the 2 bolts.
- For rest of installation, reverse removal procedure. For torque specifications, see TORQUE SPECIFICATIONS table.
NOTE:
Tape the screwdriver tip before use.
