Removal & Installation: Headlining: Installation
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For torque specifications, see TORQUE SPECIFICATIONS table.
For installation, reverse the removal procedure and for installation of accessory socket, refer to specified procedure below:

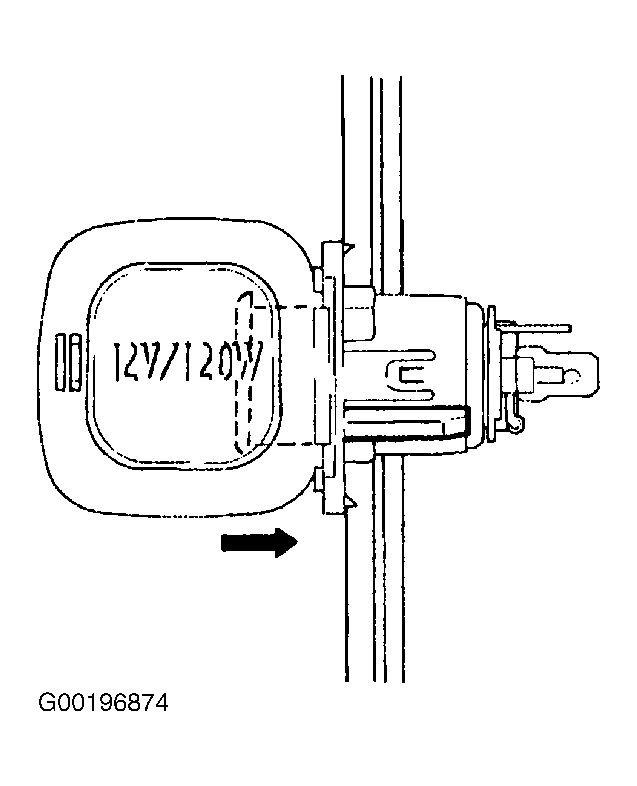

- Install the accessory socket. Assemble the accessory socket to the accessory socket cover at the position 10 mm (0.39 in.) away from full lock position and ensure that they are temporarily locked. Align the cutout on the body with the claw on the accessory socket cover and install the accessory socket and cover to the body. See Fig 1. After installing them, push in the accessory socket approximately 10 mm (0.39 in.) to lock it.
