Rear Wiper Motor: Removal
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

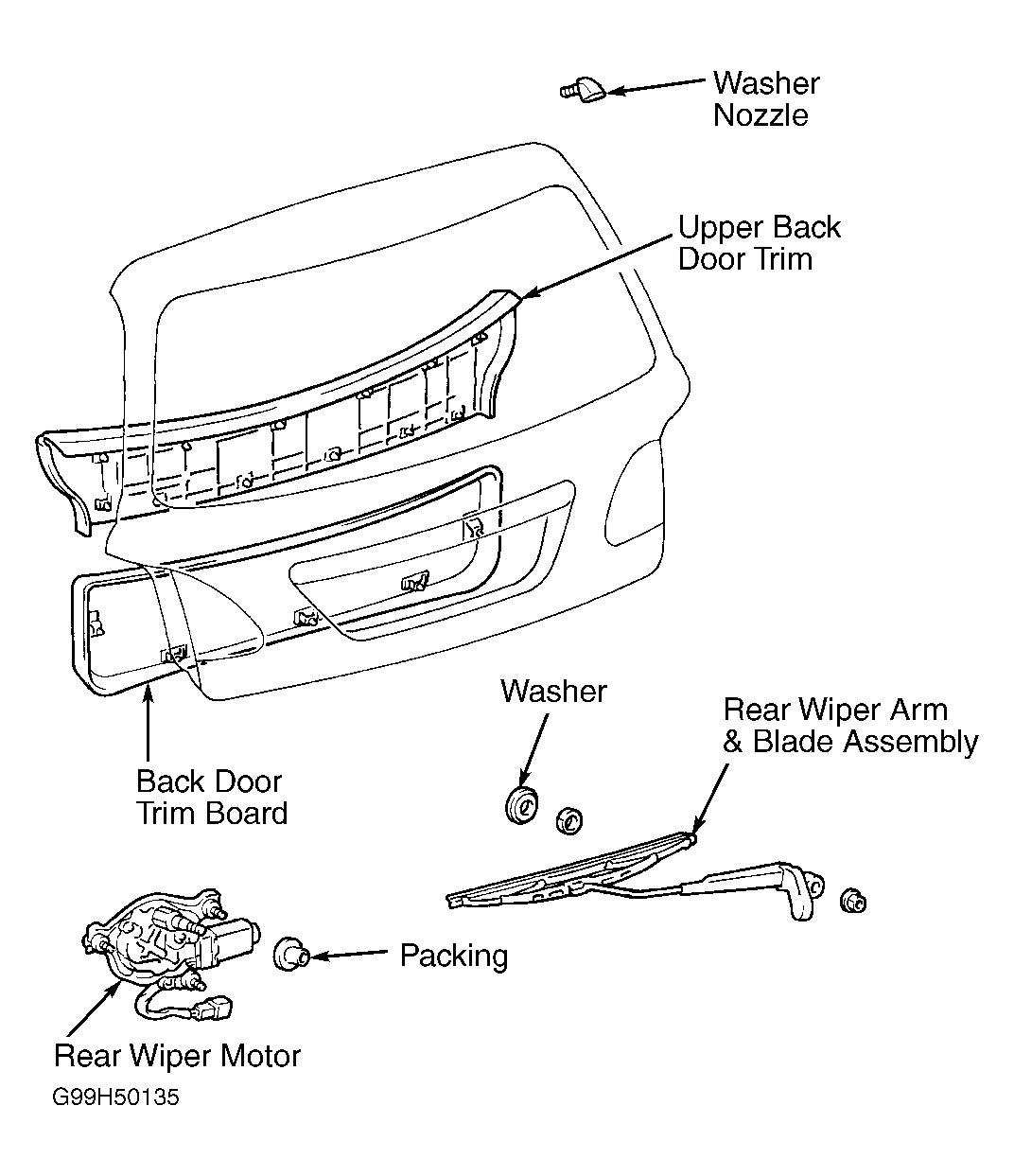

- Remove the upper back door trim. Insert a screwdriver between the back door panel and upper back door trim to pry the trim. See Fig 1.
- Remove the back door trim board. Insert a screwdriver between the back door panel and back door trim board to pry the trim board.
- Remove the rear wiper arm by removing the nut.
- Remove the rear wiper motor. Remove the nut and washer on the outer side of the back door panel. Disconnect the connector. Loosen the 3 bolts and remove the rear wiper motor. Remove the packing from the motor.
NOTE:
Tape the screwdriver tip before use.
NOTE:
Tape the screwdriver tip before use.
