Removal & Installation: Headlights: Removal
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

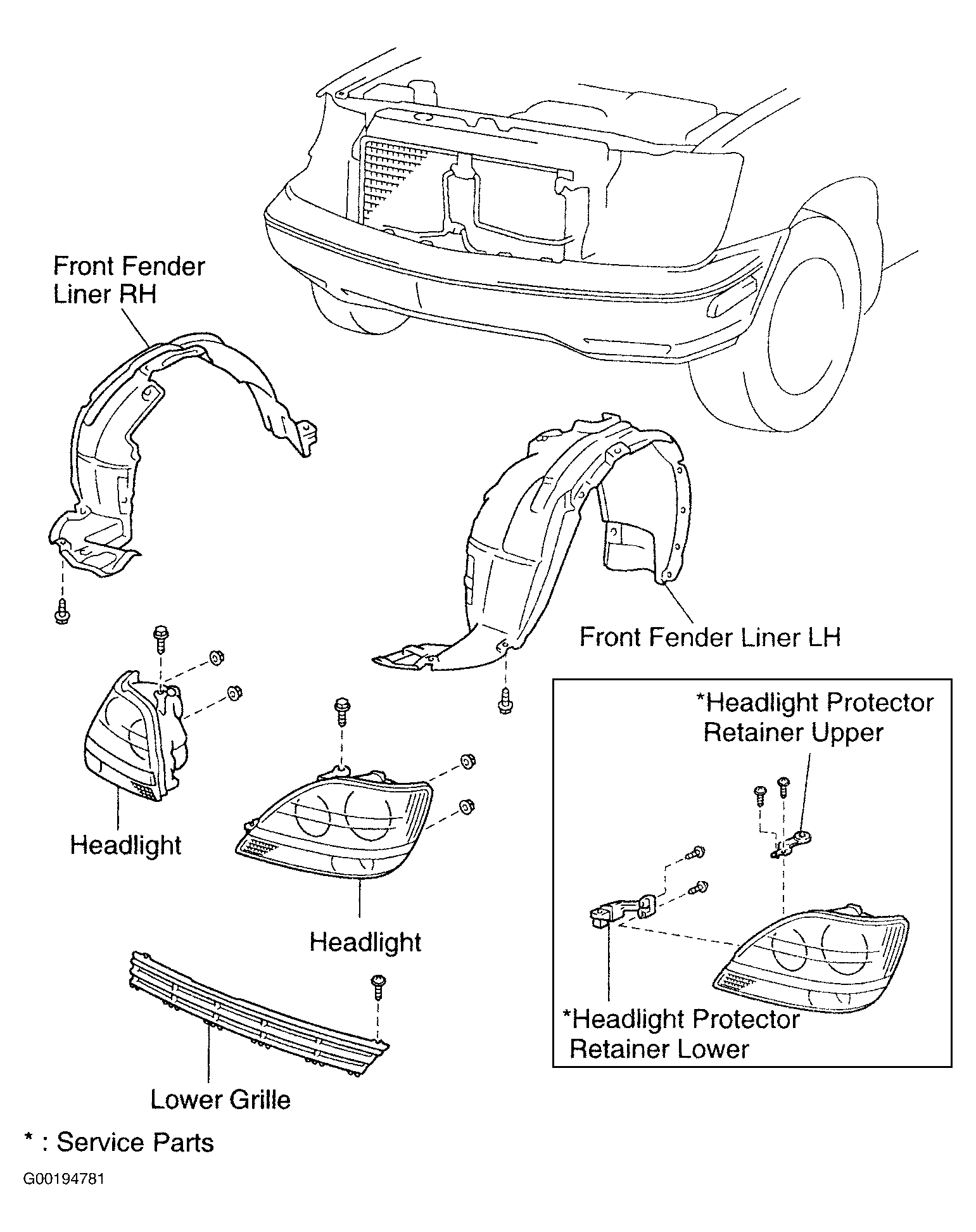

- Remove the lower grille by removing 7 screws and disconnecting 6 claws. See Fig 1.
- Remove the front fender liner.
- Remove the headlight. Disconnect the connectors. Remove the bolt and 2 nuts. Pull out the headlight forward, then disconnect the bracket of the body side.
