Removal & Installation: Headlights: Installation
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
- Install the headlight.

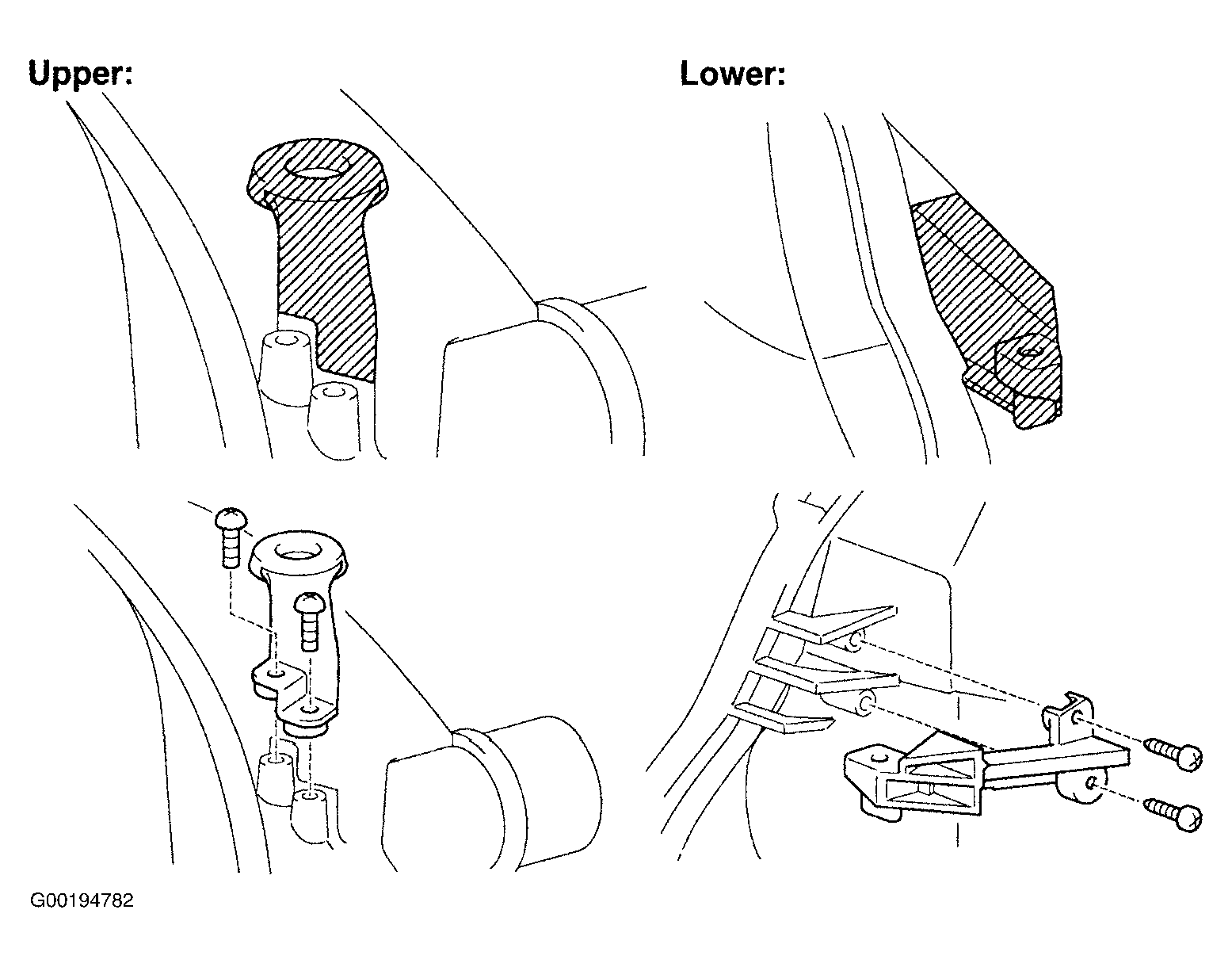

- If the shown part of the headlight is damaged, the headlight can be reinstalled to the body by installing a retainer to it. See Fig 1. After cutting off the damaged part (shaded part in the illustration) of the headlight housing, properly smooth it using sandpaper, etc. Install the retainers (supply parts) to the boss of the headlight with screws.
- Install the headlight with the bolt and 2 nuts Connect the connectors.
- Install the front fender liner and lower grill.
