COMPONENT LOCATIONS
| Component | Location |
|---|---|

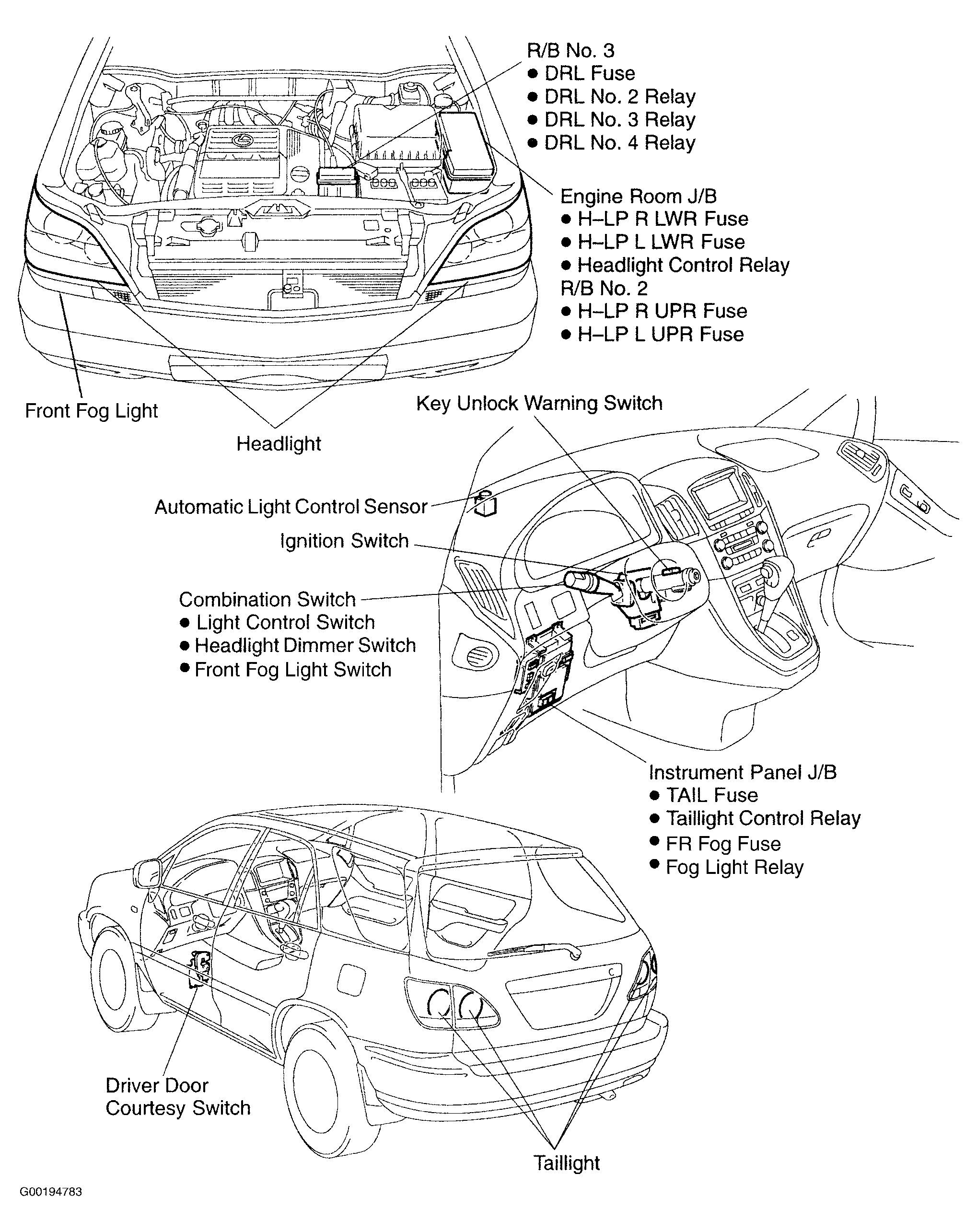

| Automatic Light Control Sensor | Fig 1 |
| Combination Switch | Fig 1 |

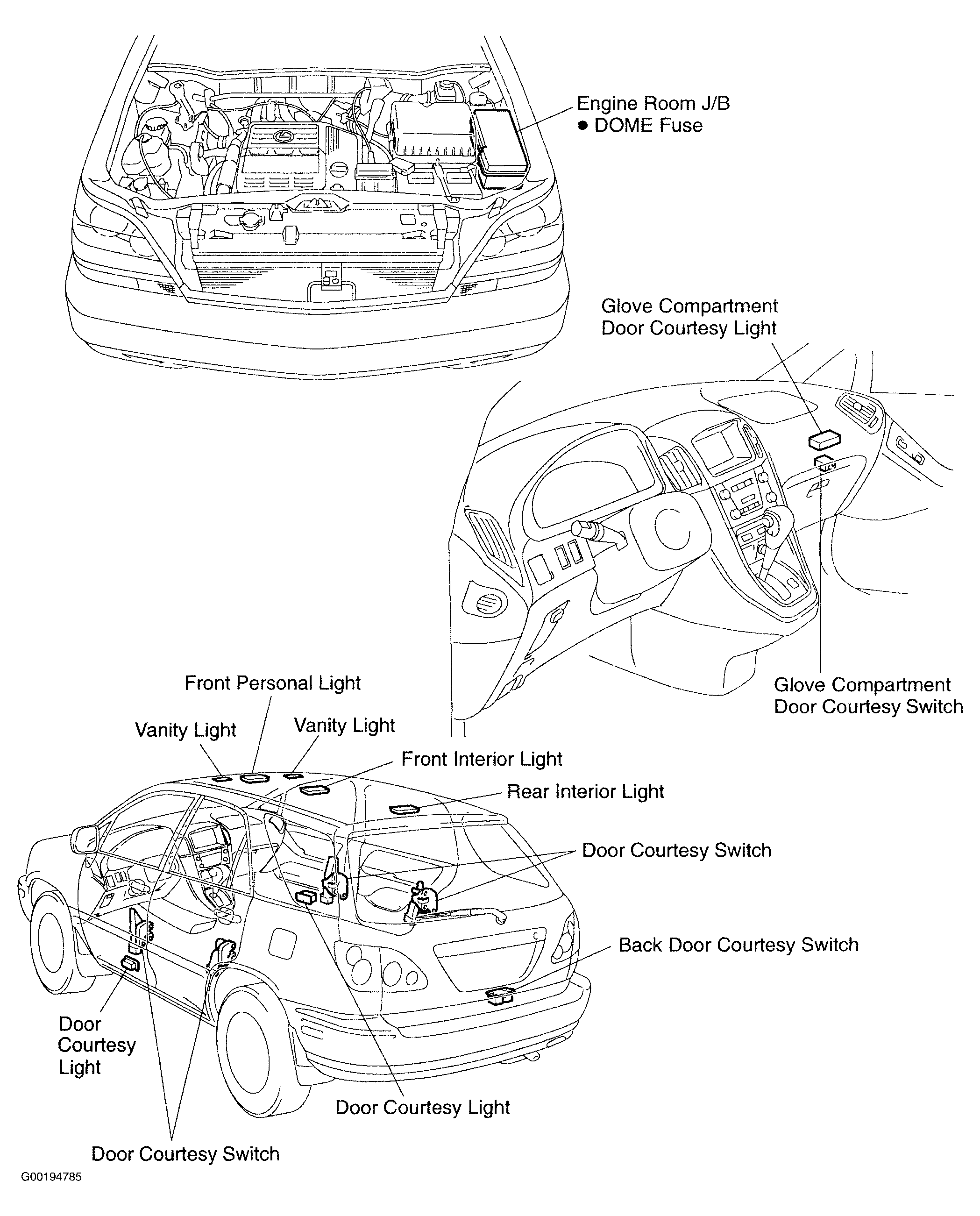

| Door Courtesy Lights | Fig 3 |
| Door Courtesy Switches | Fig 1 & Fig 3 |
| Engine Room Junction Block | Fig 1 & Fig 3 |
| Fog Lights | Fig 1 |
| Front Personal Light | Fig 3 |
| Glove Compartment Door Courtesy Light | Fig 3 |
| Glove Compartment Door Courtesy Switch | Fig 3 |
| Headlights | Fig 1 |

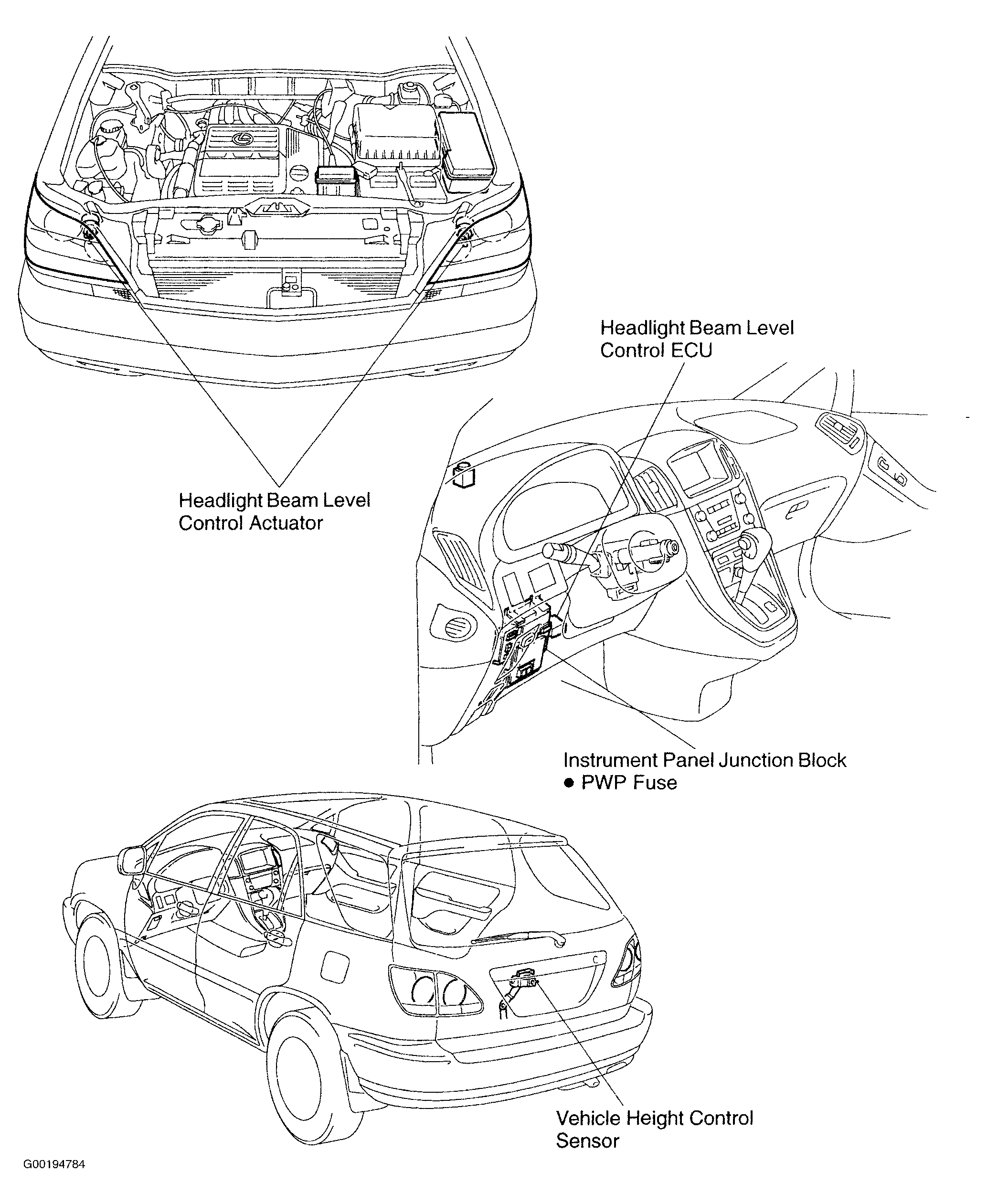

| Headlight Beam Level Control Actuator | Fig 2 |
| Headlight Beam Level Control ECU | Fig 2 |
| Instrument Panel Junction Block | Fig 1 & Fig 2 |
| Interior Lights | Fig 3 |
| Relay Block No. 2 | Fig 1 |
| Relay Block No. 3 | Fig 1 |
| Taillights | Fig 1 |
| Vanity Lights | Fig 3 |
| Vehicle Height Control Sensor | Fig 2 |
