Camry & Highlander

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

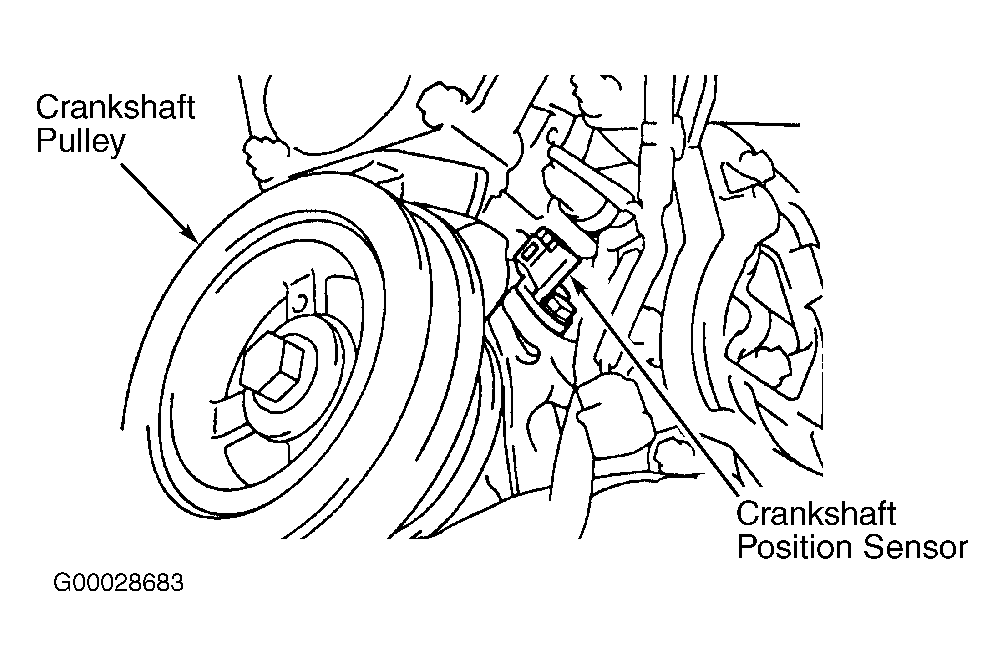

  1. Crankshaft position sensor is located at front of crankshaft, near crankshaft pulley. See Figure.
  2. Remove necessary components for access to crankshaft pulley and crankshaft position sensor. Disconnect electrical connector at crankshaft position sensor. Using ohmmeter, check resistance between electrical terminals on crankshaft position sensor. Replace crankshaft position sensor if resistance is not within specification. See CRANKSHAFT POSITION SENSOR RESISTANCE  table.
