Disassembly & Reassembly
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the column cover by removing 3 screws.

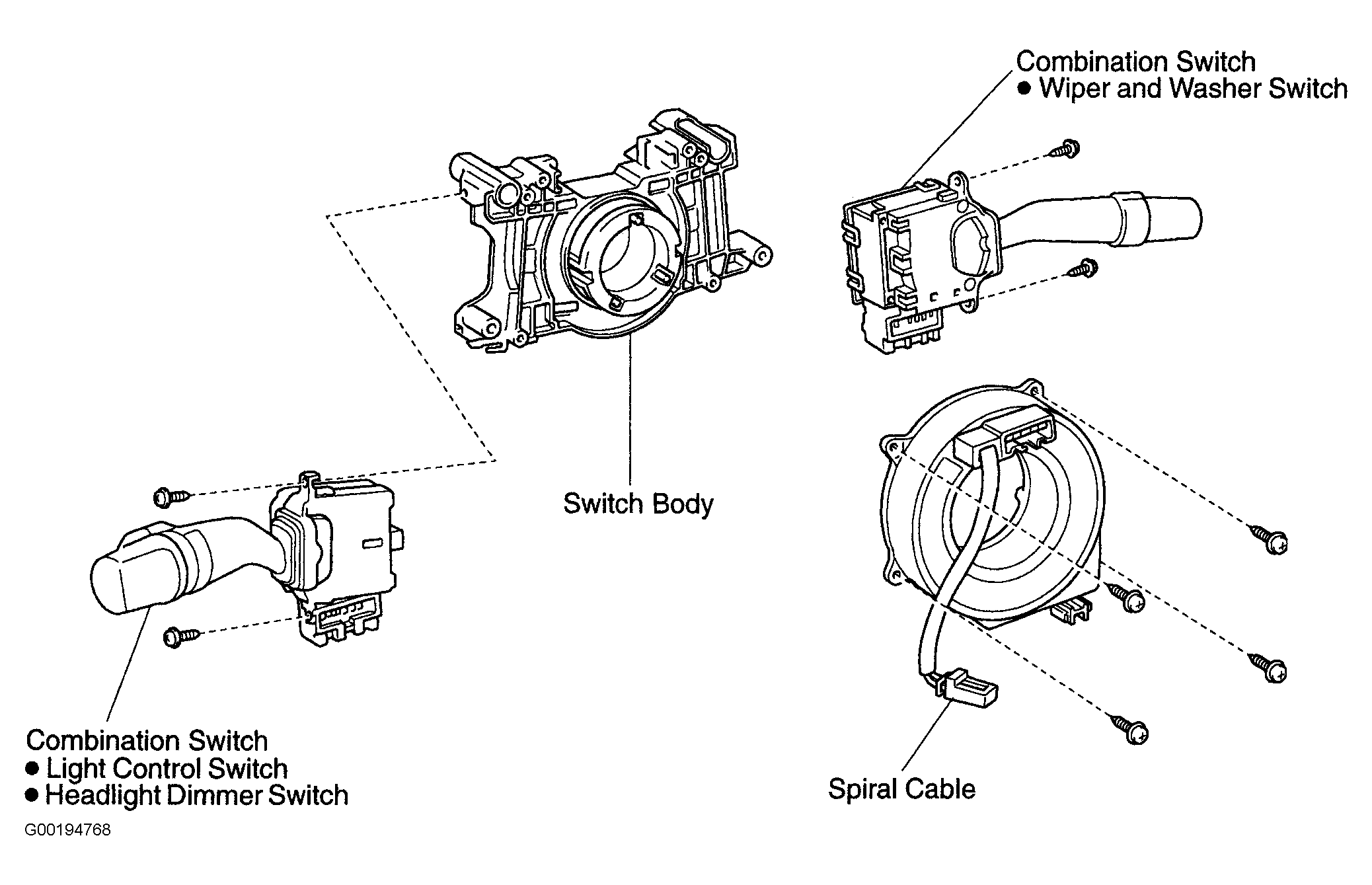

- Remove the light control switch. Disconnect the connector and remove the 2 screws. See Fig 1.
- Remove the wiper and washer switch. Disconnect the connector and remove the 2 screws.
- For reassembly, reverse the disassembly procedure.
