Circuit Description

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description, see Fig 1.

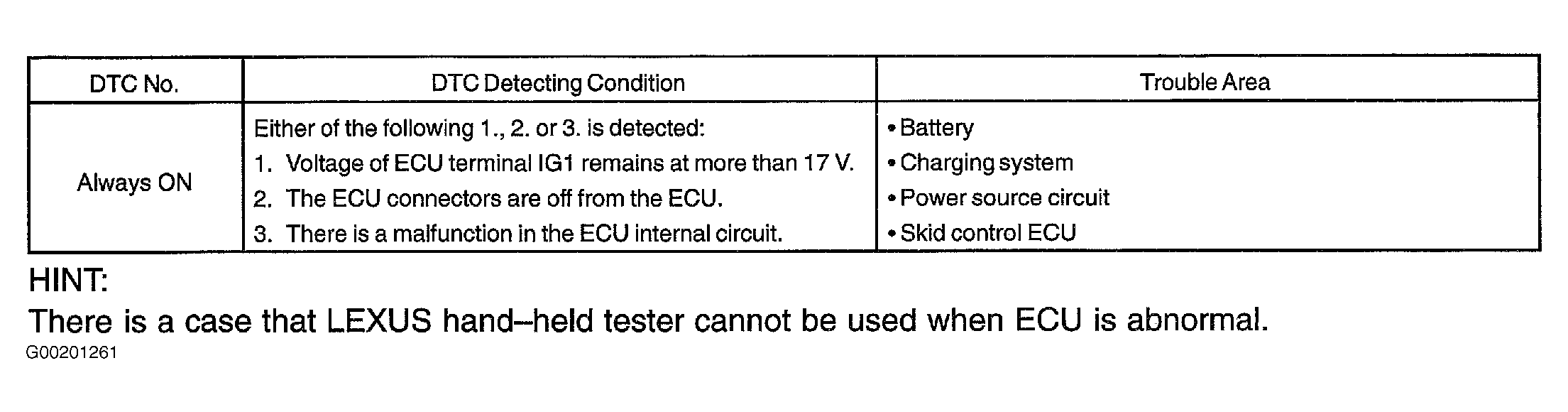

Fig 1: Circuit Description ABS Warning Light Always On
G00201261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
