Brake Actuator Assembly: Removal

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove right front wheel and right front fender liner.
  2. Remove PS gear tube clamp bolt. See Fig 1.
  3. Disconnect engine coolant reservoir, slide upward and remove from bracket.
  4. Disconnect harness connectors and brake hose from brake actuator assembly. See Fig 2.
  5. Using special tool (09751-36011), disconnect brake lines from actuator. Use tags or make a note to identify positions to reconnect brake lines. See Fig 3.
  6. Remove bolts, nut and brake actuator assembly. See Fig 4.
  7. Remove nuts and brake actuator from actuator bracket. Remove holders and 3 cushions from brake actuator.

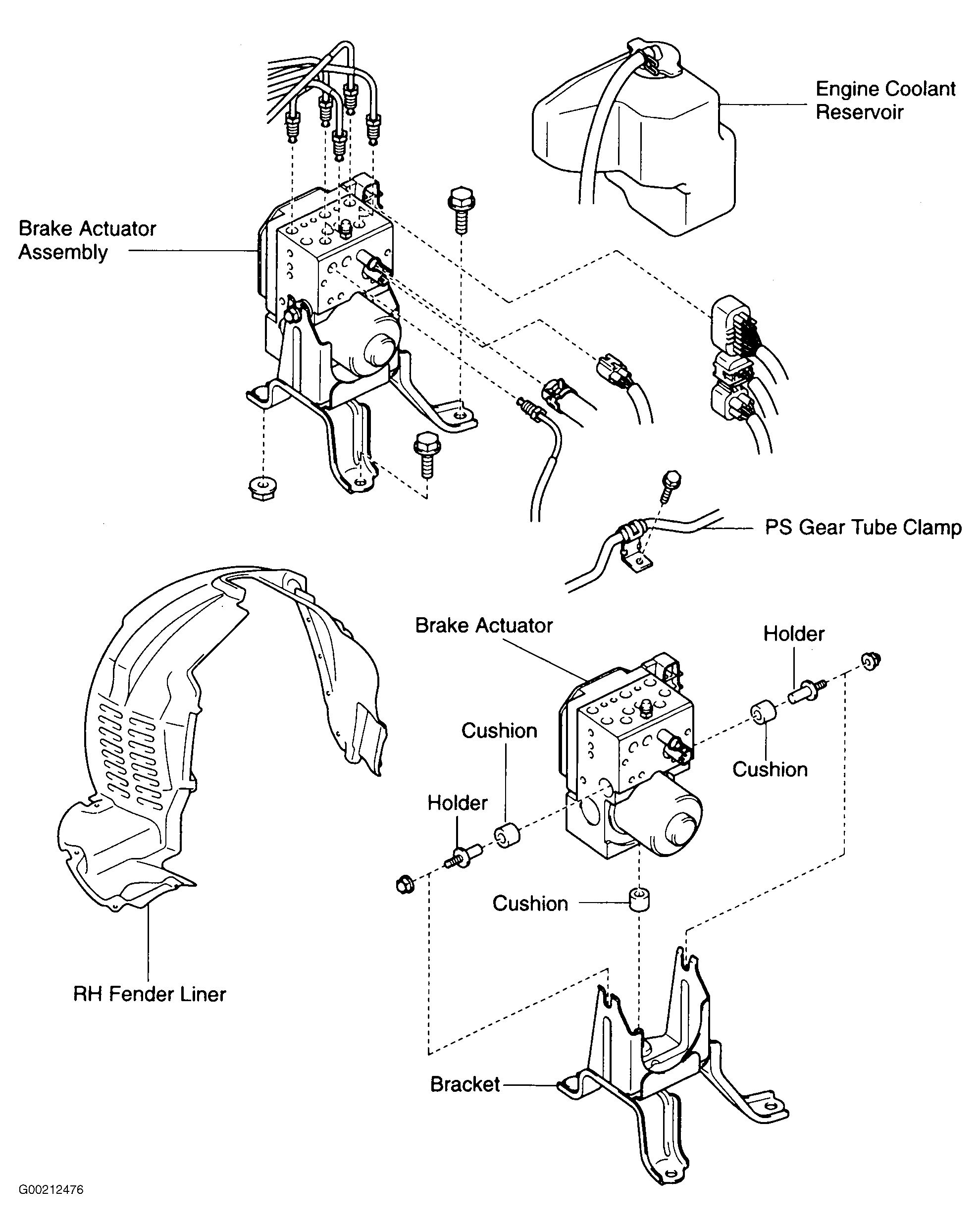

Fig 1: Locating Brake Actuator Components
G00212476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

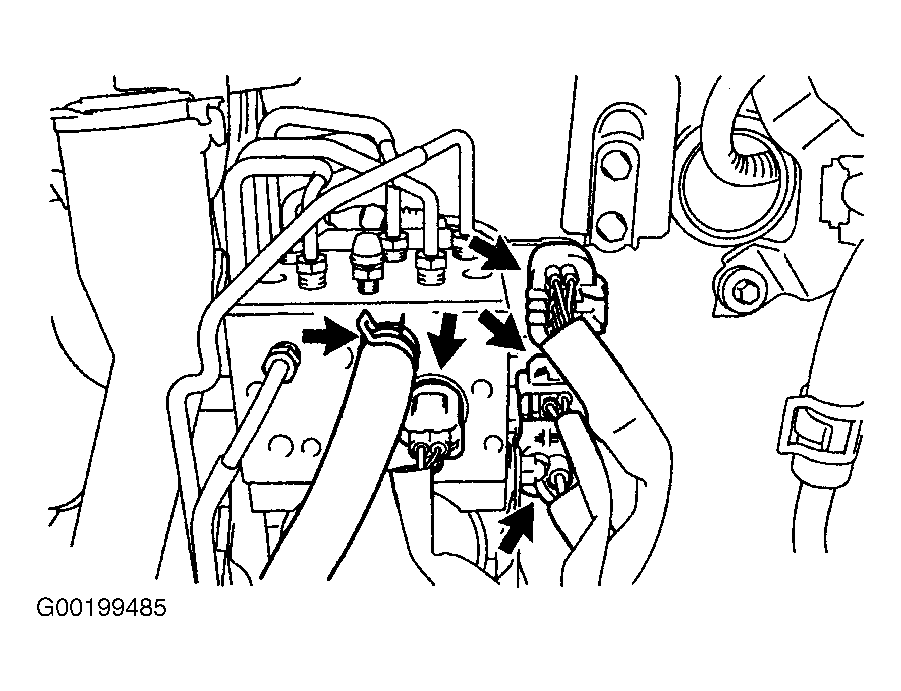

Fig 2: Disconnecting Connectors & Brake Hose
G00199485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

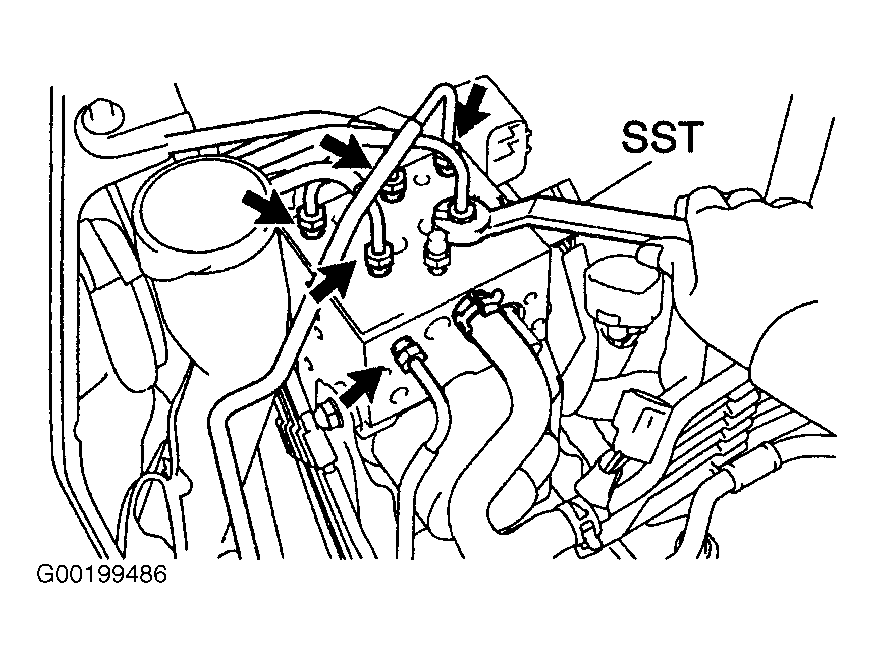

Fig 3: Disconnecting Brake Lines
G00199486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

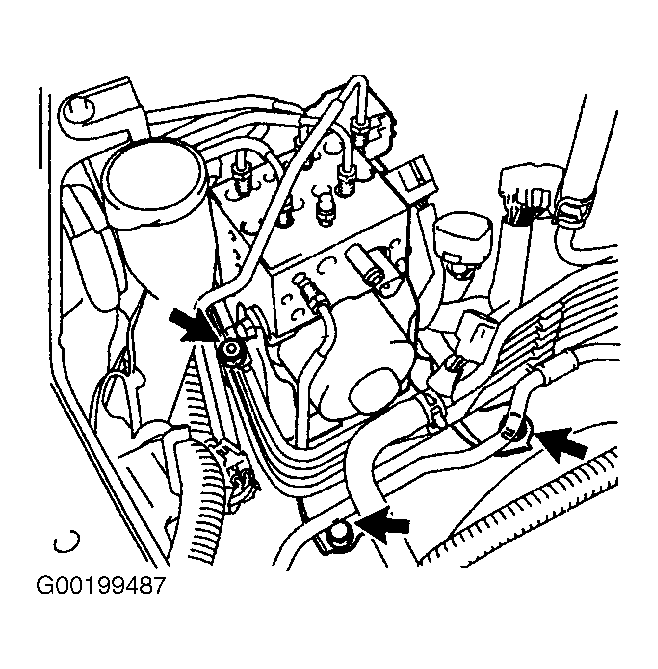

Fig 4: Removing Brake Actuator Assembly
G00199487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
