Crankshaft Position Sensor: Echo

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

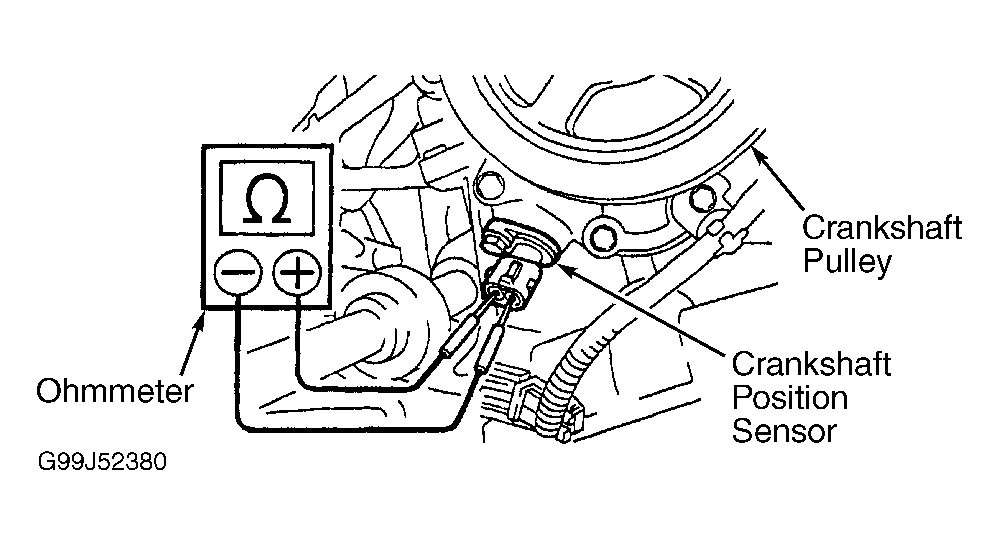

  1. Remove passenger's side engine cover for access to crankshaft pulley. Disconnect crankshaft position sensor electrical connector at crankshaft position sensor. Crankshaft position sensor is located on front of engine, near crankshaft pulley. See Figure.
  2. Using ohmmeter, check resistance between electrical terminals on crankshaft position sensor. Ensure crankshaft position sensor resistance is within specification. See CRANKSHAFT POSITION SENSOR RESISTANCE  table. Replace crankshaft position sensor if resistance is not within specification. See CRANKSHAFT POSITION SENSOR under IGNITION SYSTEMS in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article. Reinstall crankshaft position sensor electrical connector.
