Celica & Corolla

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

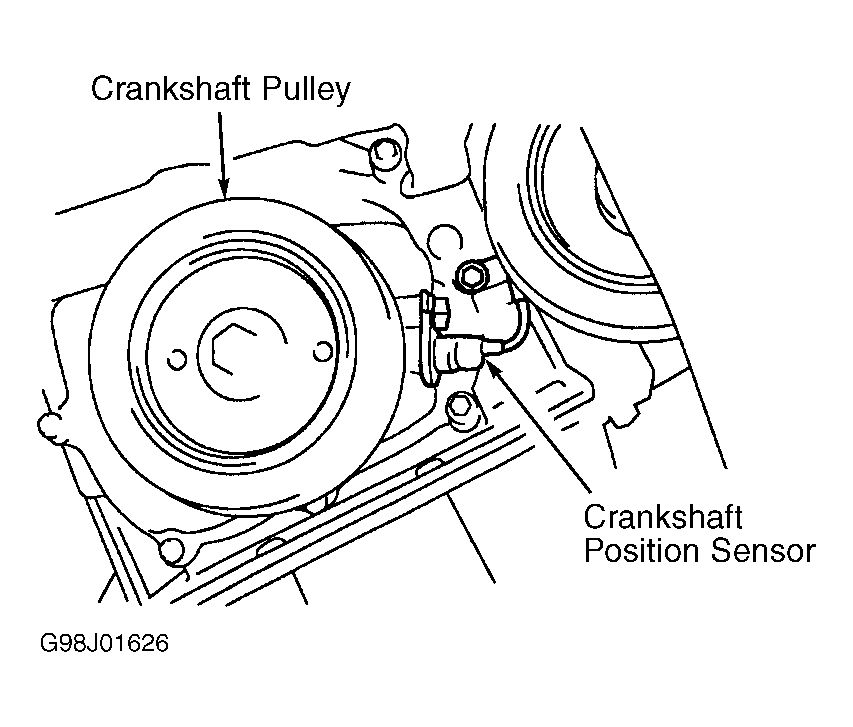

  1. Crankshaft position sensor is located on front of engine, near crankshaft pulley. See Figure.
  2. Manufacturer recommends removing crankshaft position sensor before checking the resistance. Manufacturer states intake manifold must be removed for removal of crankshaft position sensor. Remove crankshaft position sensor. See CRANKSHAFT POSITION SENSOR under IGNITION SYSTEMS in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.
  3. Using ohmmeter, check resistance between electrical terminals on crankshaft position sensor. Replace crankshaft position sensor if resistance is not within specification. See CRANKSHAFT POSITION SENSOR RESISTANCE  table. Reinstall crankshaft position sensor.
