Camshaft Position Sensor: Tacoma

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electrical connector at camshaft position sensor. Camshaft position sensor is located on cylinder head, just in front of intake manifold. See Fig 8. Using ohmmeter, check resistance between electrical terminals on camshaft position sensor.
  2. Ensure camshaft position sensor resistance is within specification. See CAMSHAFT POSITION SENSOR RESISTANCE  table. Replace camshaft position sensor if resistance is not within specification. See CAMSHAFT POSITION SENSOR under IGNITION SYSTEMS in REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article. Reinstall electrical connector on camshaft position sensor.
CAMSHAFT POSITION SENSOR RESISTANCE

Application Ohms
Camry, Camry Solara, Celica, Corolla, Highlander, MR2, RAV4 & Tacoma
Cold (1) 835-1400
Hot (2) 1060-1645
ECHO & Prius
Cold (1) 1630-2740
Hot (2) 2065-3225
(1) Cold is with temperature of 14-122°F (-10-50°C).
(2) Hot is with temperature of 122-212°F (50-100°C).

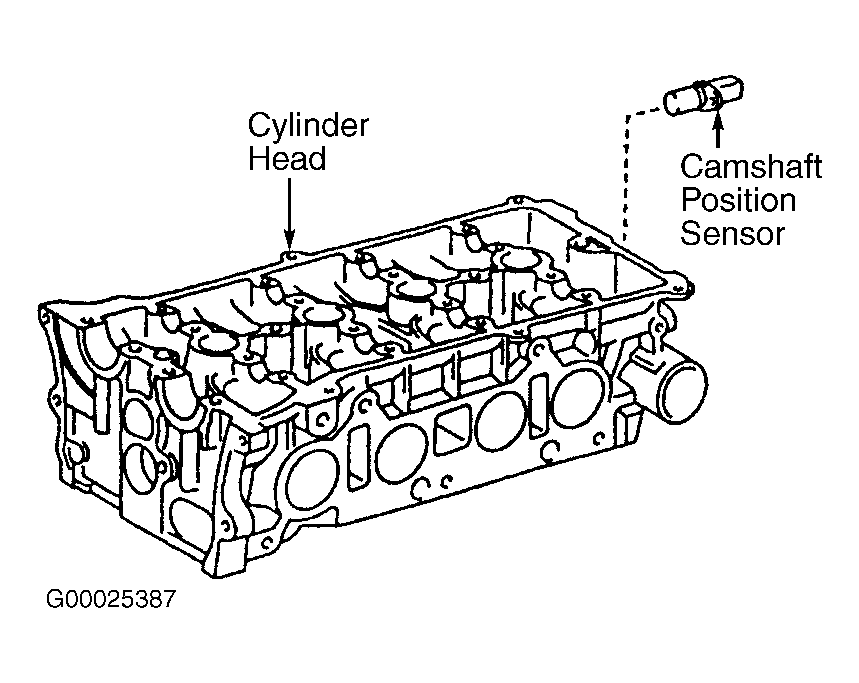

Fig 1: Locating Camshaft Position Sensor (Camry, Camry Solara & Highlander)
G00025387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

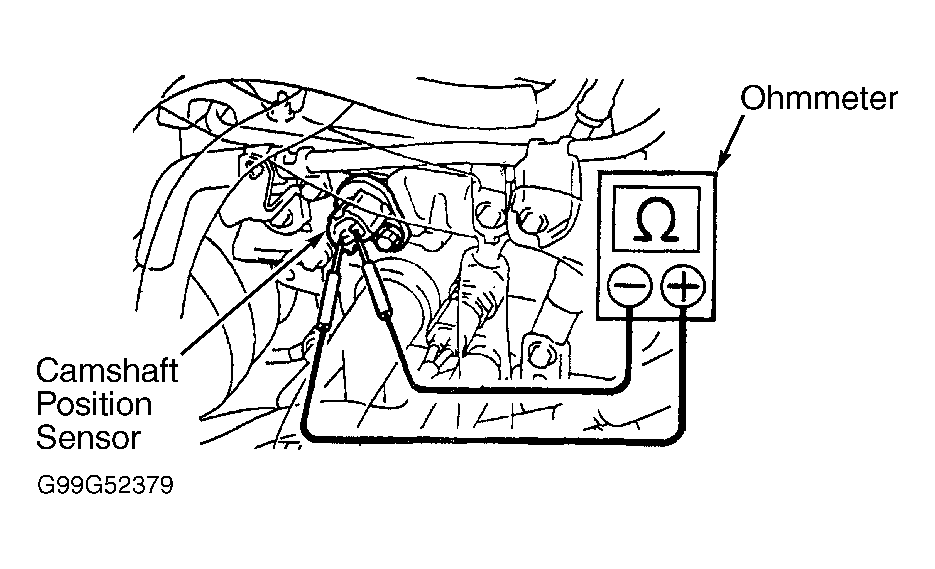

Fig 2: Locating & Testing Camshaft Position Sensor (ECHO)
G99G52379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Locating & Testing Camshaft Position Sensor (Celica 1.8L 1ZZ-FE & Corolla)
G98H01625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Locating & Testing Camshaft Position Sensor (Celica 1.8L 2ZZ-GE)
G99F52378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

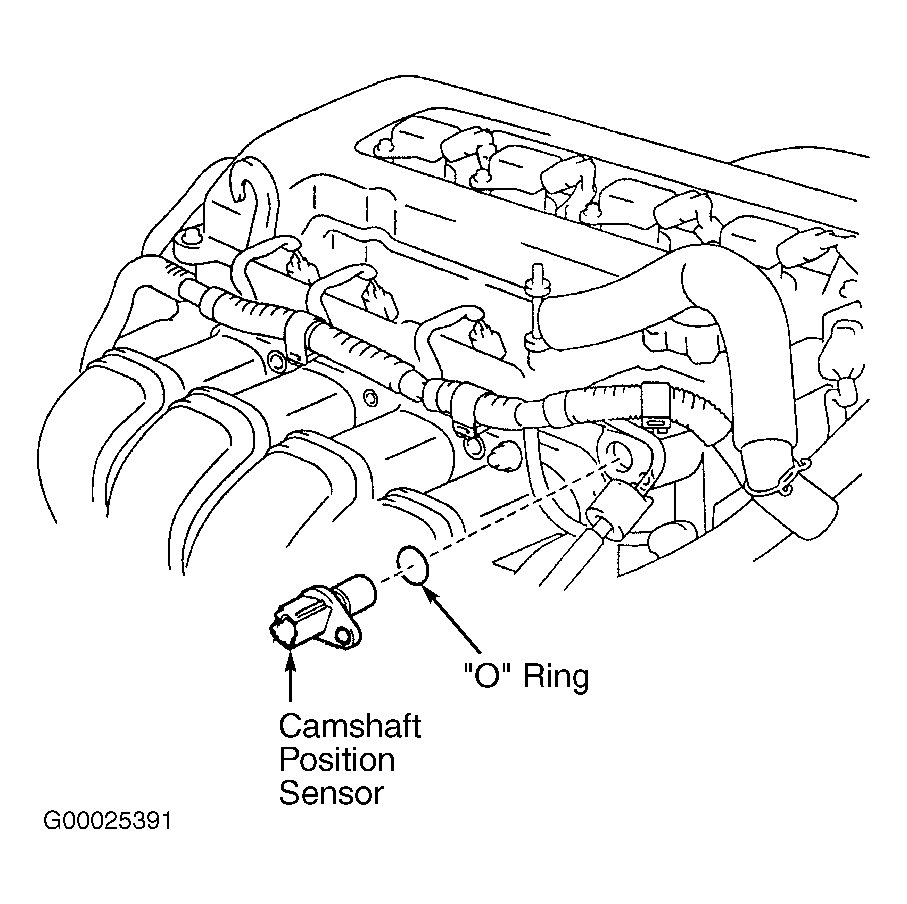

Fig 5: Locating Camshaft Position Sensor (MR2)
G00025391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Locating & Testing Camshaft Position Sensor (Prius)
G00025395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Locating & Testing Camshaft Position Sensor (RAV4)
G00025315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

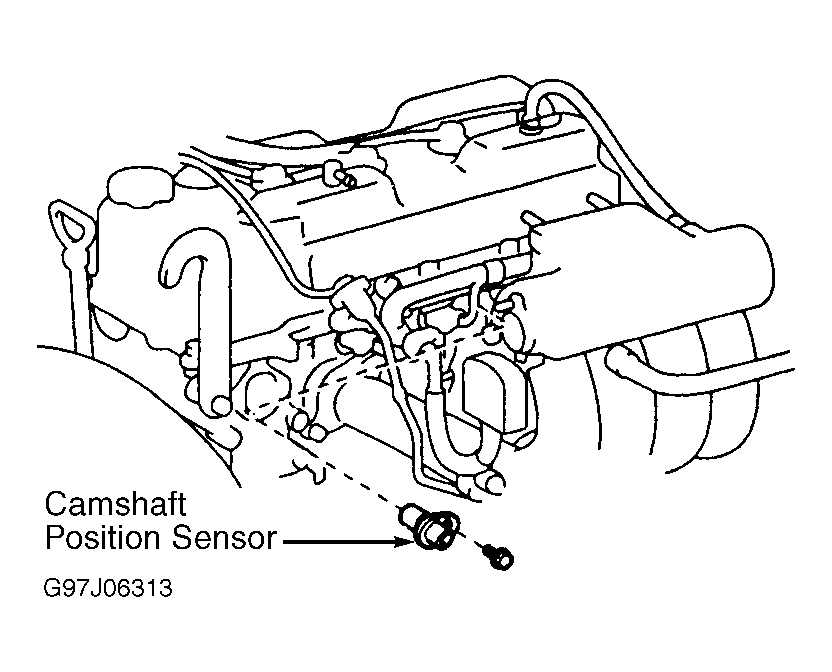

Fig 8: Locating Camshaft Position Sensor (Tacoma)
G97J06313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
