Wheel Speed Sensor (Rear): Installation
WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the contacting surface of the axle hub and a new speed sensor. Make sure the sensor rotor is clean.

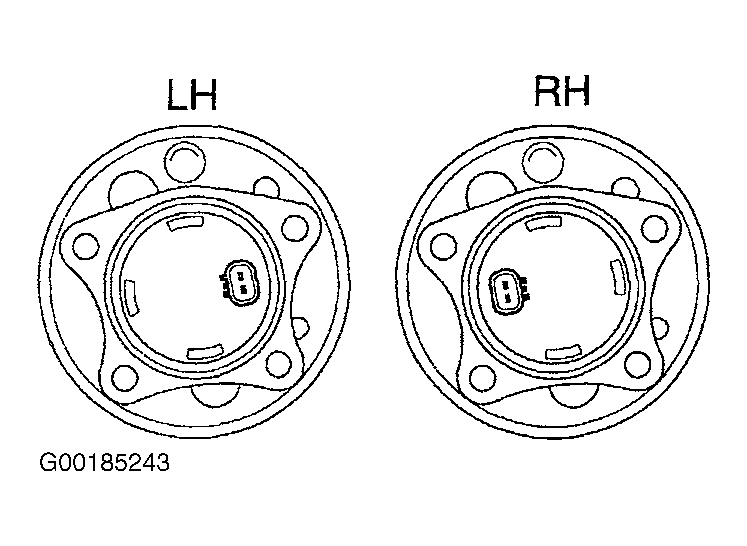

- Place the speed sensor on the axle hub so that the connector is positioned correctly. See Fig 1.

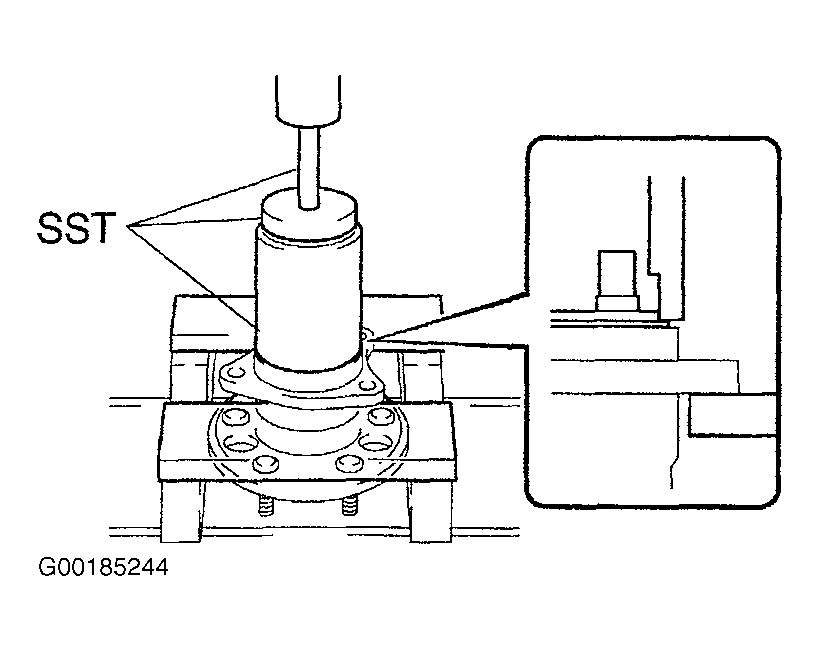

- Using special tools (09830-36010), (09950-60010), (09951-00650), (09950-70010) and (09951-07100) and a press, install the speed control sensor to the axle hub. Do not tap the speed sensor with a hammer. Press in the speed sensor straight and slowly. See Fig 2.
- Install the rear axle hub and bearing assembly with the 4 bolts and tighten to specification. See TORQUE SPECIFICATIONS .
- Install rear disc and brake caliper assembly. See DISC article.
- Connect speed control sensor wire.
- Install rear wheel and tighten lug nuts to specification. See TORQUE SPECIFICATIONS .
- Check and adjust wheel alignment. See ALIGNMENT SPEICIFCATIONS & PROCEDURES article in WHEEL ALIGNMENT.
- Check ABS speed sensor signal. See SPEED SENSOR SIGNAL CHECK .
