Wheel Speed Sensor (Front): Removal

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

Remove front wheel and front fender liner.
Disconnect speed sensor harness connector and clamp. See Fig 1.
Remove 2 clamp bolts (A, B) holding sensor harness and clamp from body and shock absorber. See Fig 2.
Remove bolt and wheel speed sensor. See Fig 3.

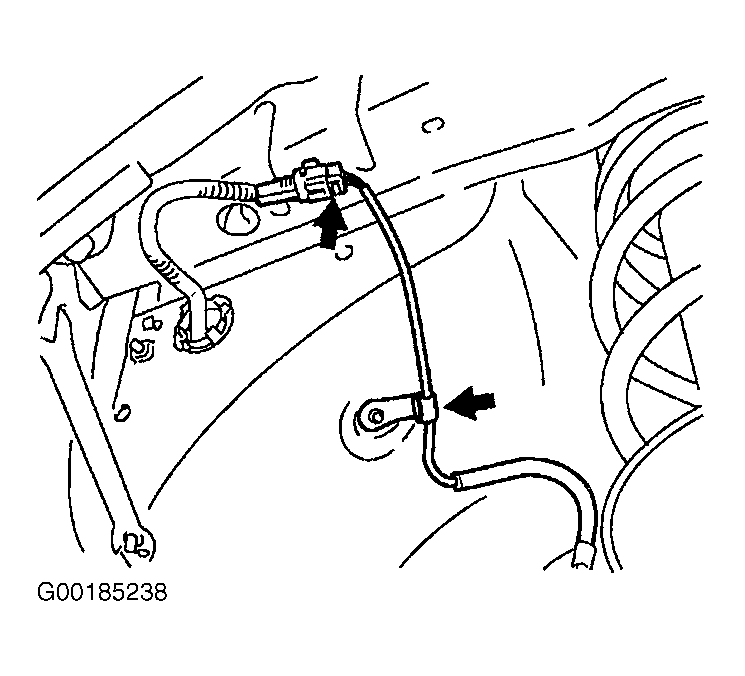

Fig 1: Disconnecting Front Speed Sensor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

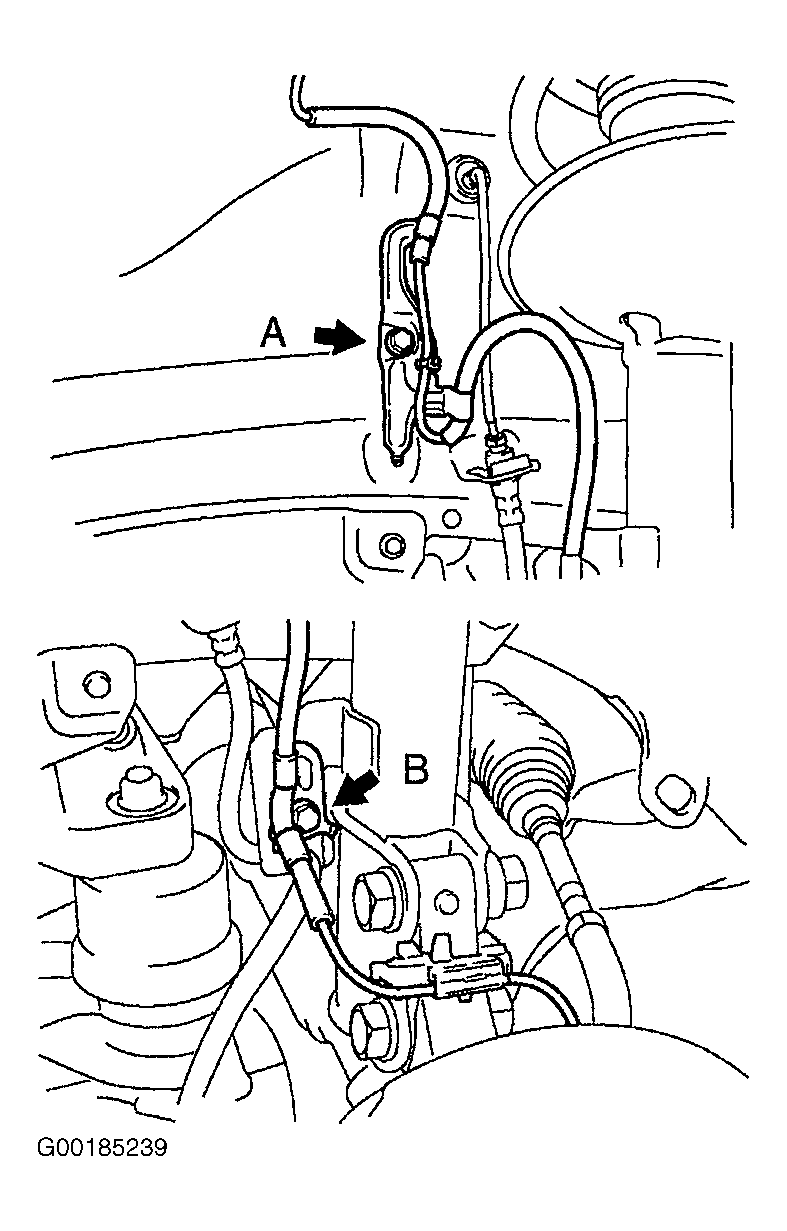

Fig 2: Locating Clamp Bolts

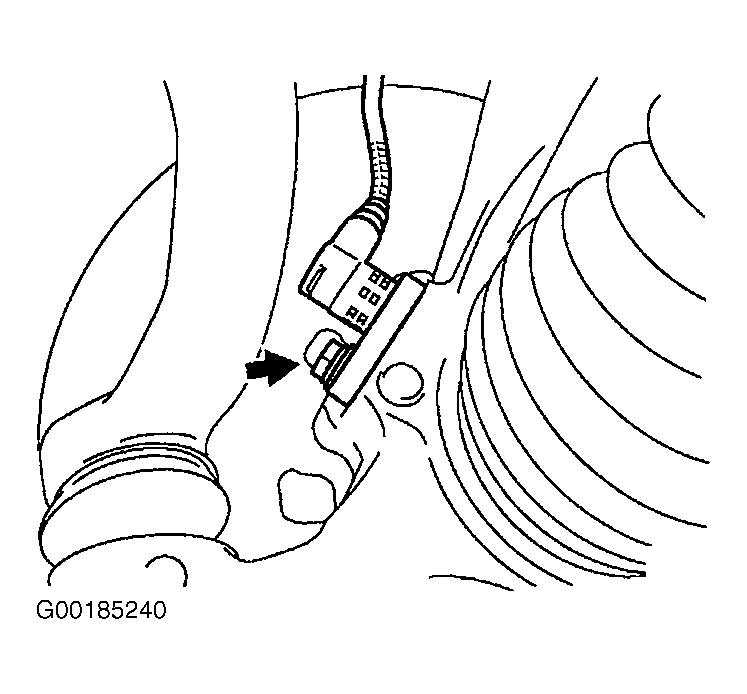

Fig 3: Removing Front Wheel Speed Sensor
