Brake Actuator Assembly: Removal
WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
- Drain brake fluid.

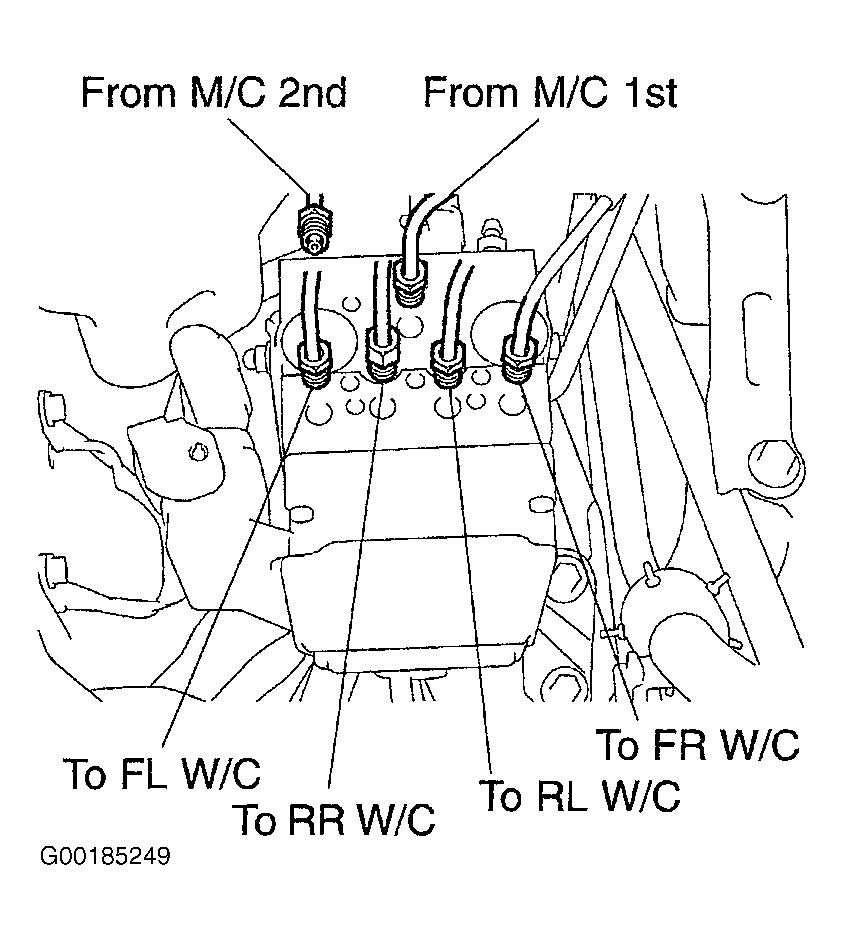

- Using special tool (09023-00100), disconnect 6 brake lines from actuator. Use tags or make a note to identify the place to reconnect brake lines. See Fig 1.
- Disconnect the brake actuator harness connector.
- Disconnect 3 nuts and remove brake actuator with bracket.
- Remove 2 nuts and brake actuator from bracket. Remove 2 holders and 3 cushions from brake actuator.
