Testing Procedure

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For testing procedure, see Fig 2-Fig 4 .

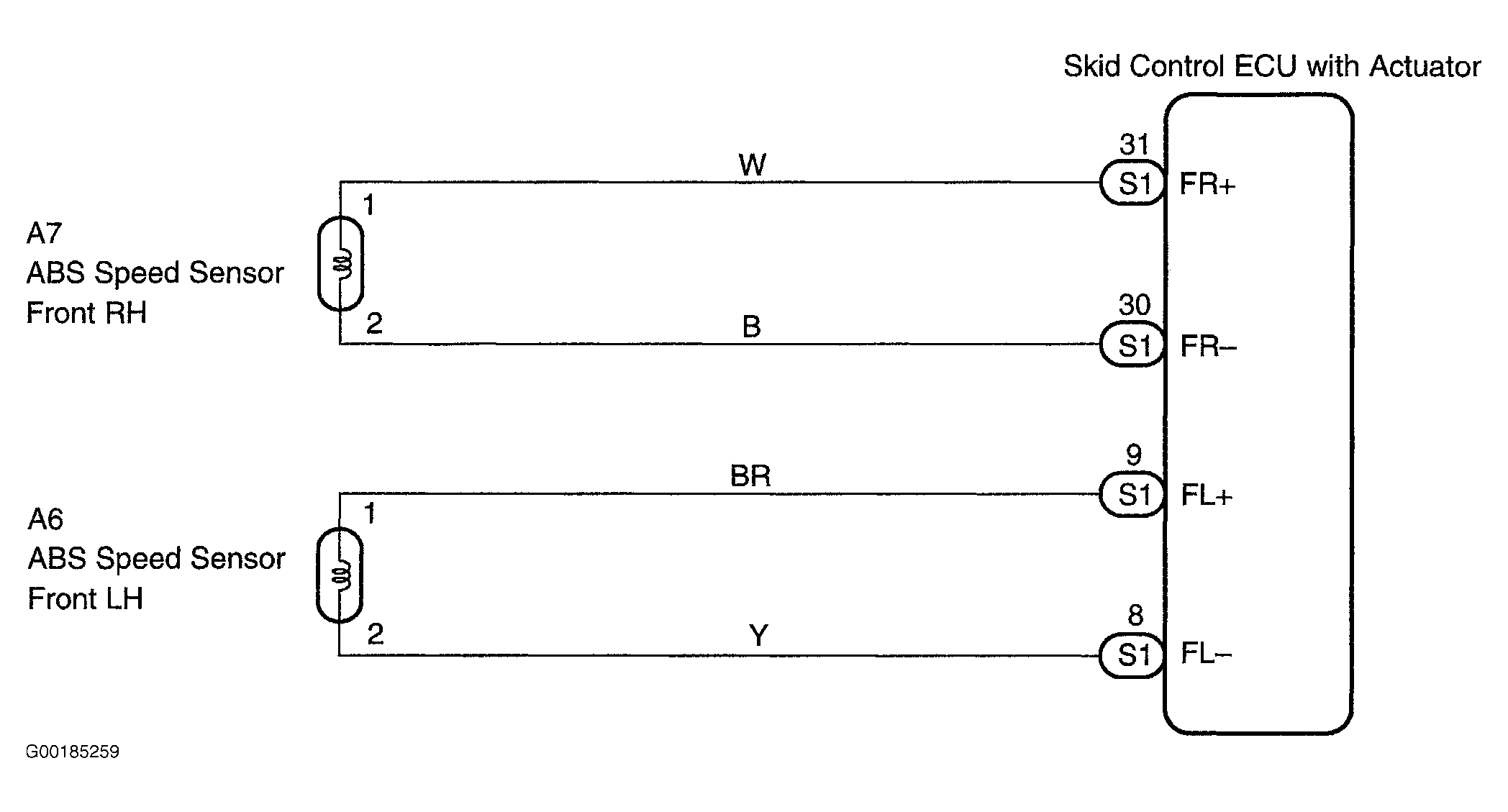

Fig 1: Wiring Diagram (Speed Sensor Circuit)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

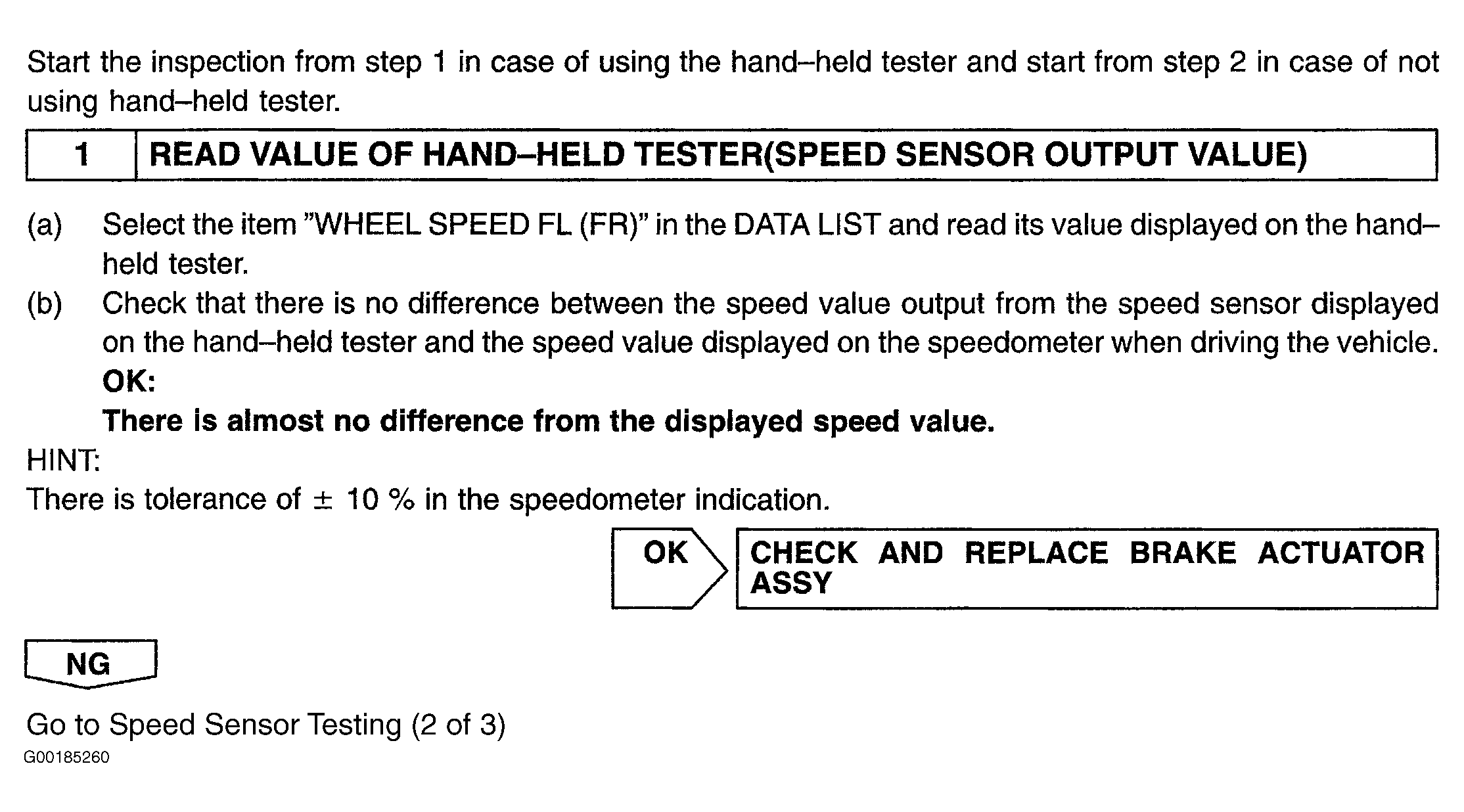

Fig 2: Front Speed Sensor Testing (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

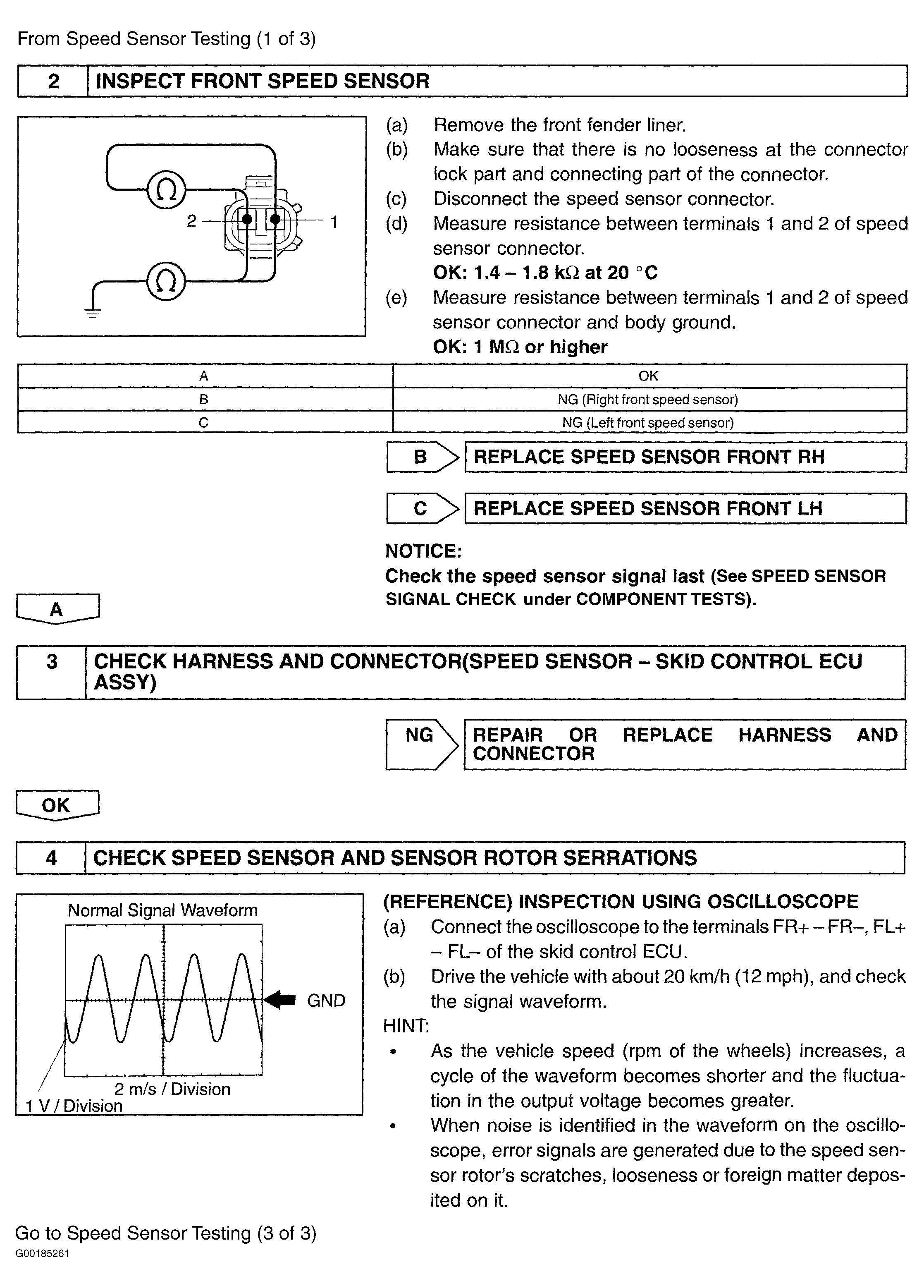

Fig 3: Front Speed Sensor Testing (2 Of 3)

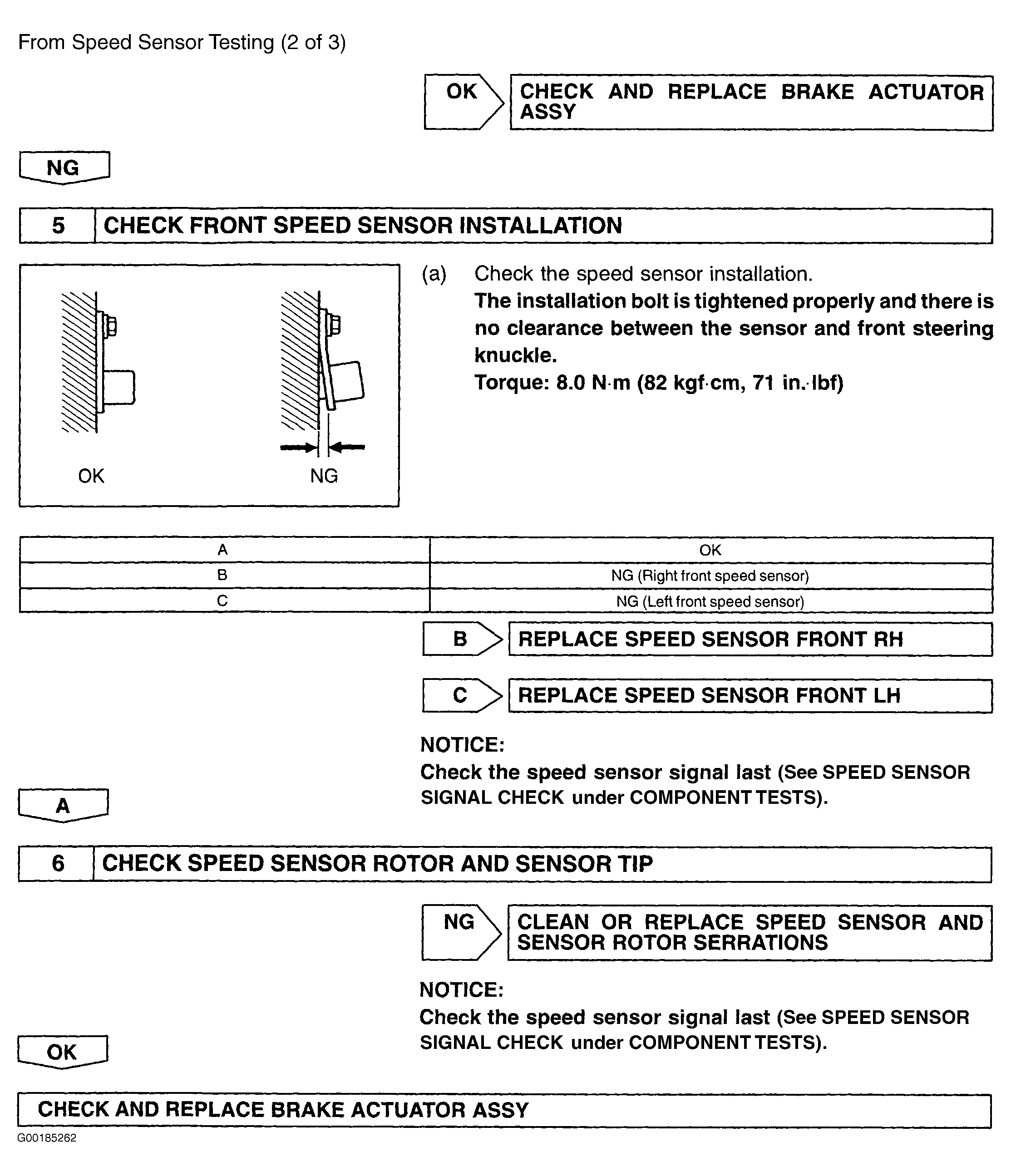

Fig 4: Front Speed Sensor Testing (3 Of 3)
