Testing Procedure

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

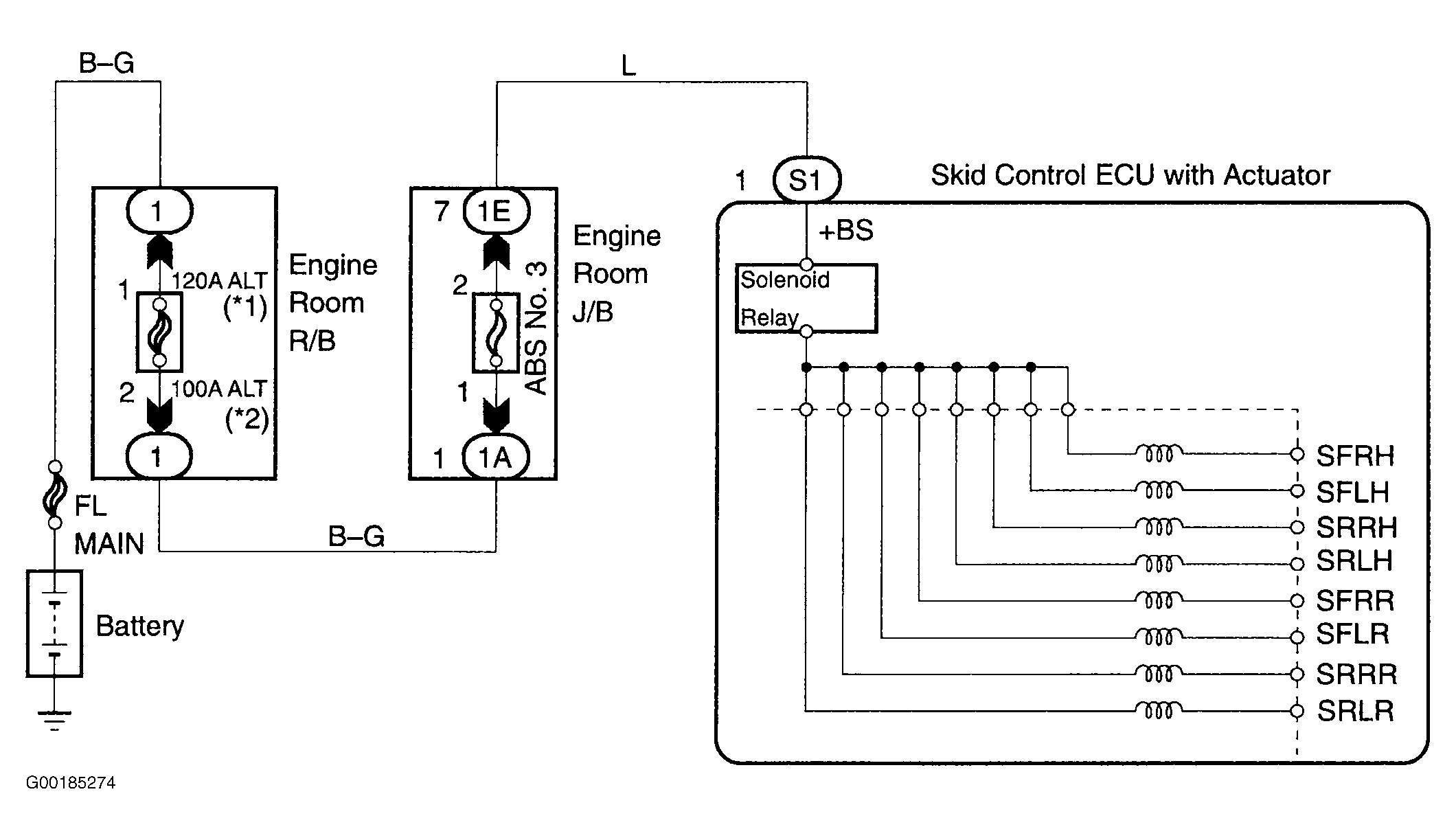

Fig 1: Wiring Diagram (ABS Solenoid Relay Circuit)
G00185274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

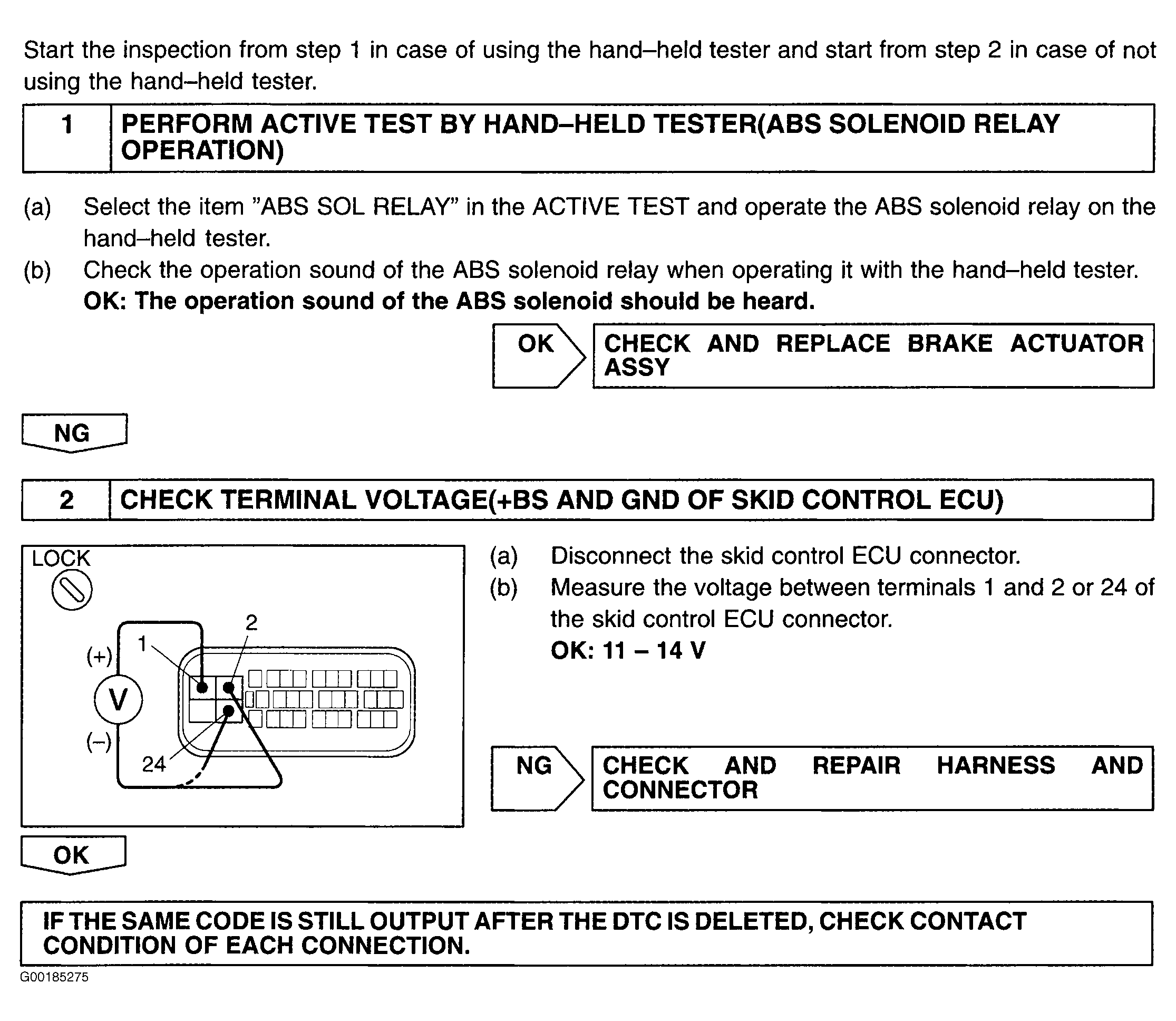

Fig 2: Testing Procedure (ABS Solenoid Relay Circuit)
G00185275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
