Roof Headlining Assembly: Removal

WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH and LH front seat assemblies. See REMOVAL & INSTALLATION in POWER SEATS article under SEATS in ACCESSORIES & EQUIPMENT.
  2. Remove the rear seat cushion assembly and the rear seat back assembly. See REAR SEAT ASSEMBLY .
  3. Remove the upper rear console panel, the lower instrument panel sub-assembly, the RH instrument panel finish panel end, the RR console box and the LH and RH instrument panel finish panel end. See INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT.
  4. Remove the rear air ducts No. 1 and 2, and remove the console box duct No. 1. See appropriate AUTOMATIC A/C-HEATER SYSTEMS article in HVAC.
  5. Remove the floor shift assembly. See SHIFT INTERLOCK SYSTEMS article in AUTOMATIC TRANSMISSIONS.
  6. Using a screwdriver, remove the RH and LH front door scuff plates. See Fig 1.
  7. Using a screwdriver, remove the RH and LH rear door scuff plates. See Fig 2.
  8. Remove the RH and LH front door opening trim weatherstrip.
  9. Remove the RH and LH rear door opening trim weatherstrip.
  10. Remove the RH and LH lower center pillar garnishes by pulling them upward. See Fig 3.
  11. Remove the RH and LH center pillar garnishes. Using a screwdriver, remove the lap belt outer anchor cover. See Fig 4. Remove the bolt and front seat outer belt flower anchor. Remove the 2 screws. See Fig 5. Using a screwdriver, remove the center pillar upper garnish.
  12. Remove the RH and LH inner roof side garnish. Push the pin portion of the inner roof side garnish, then pull and release the clip. See Fig 6. Using a screwdriver, remove the inner roof side garnish.
  13. Remove the RH and LH front pillar garnish. Push the pin portion of the front pillar garnish, then pull and release the clip. See Fig 7. Using a screwdriver, remove the front pillar garnish. Protect the curtain shield air bag. See Fig 8. Cover the curtain shield air bag with the protection cover as soon as the front pillar garnish is removed. Cover the air bag with cloth or nylon of 700 mm x 120 mm and fix the ends of the cover with tape.
  14. Remove the assist grip sub-assembly. Using a screwdriver, remove the assist grip cover. See Fig 9. Remove the 2 screws and assist grip.
  15. Remove the RH and LH visor assembly. Use a molding remover, remove the visor bracket cover. See Fig 10. Remove the 2 screws and the visor.
  16. Remove the roof console box assembly. Remove the 2 screws. See Fig 11. Using a screwdriver, remove the roof console box then disconnect the connector.
  17. Remove the room lamp assembly No. 1. Using a screwdriver, remove the lens. Using a screwdriver, remove the room lamp assembly No. 1 then disconnect the connector. See Fig 12.
  18. Remove the RH and LH visor holder by turning it to the left.
  19. Using a molding remover, remove the vanity lamp assembly then disconnect the connector. See Fig 13.
  20. Remove the roof headlining assembly. Remove the inner rear view mirror cover. Tear off the tape on the adhered part of the wire harness. See Fig 14. Remove the headlining assembly from the passenger's door.

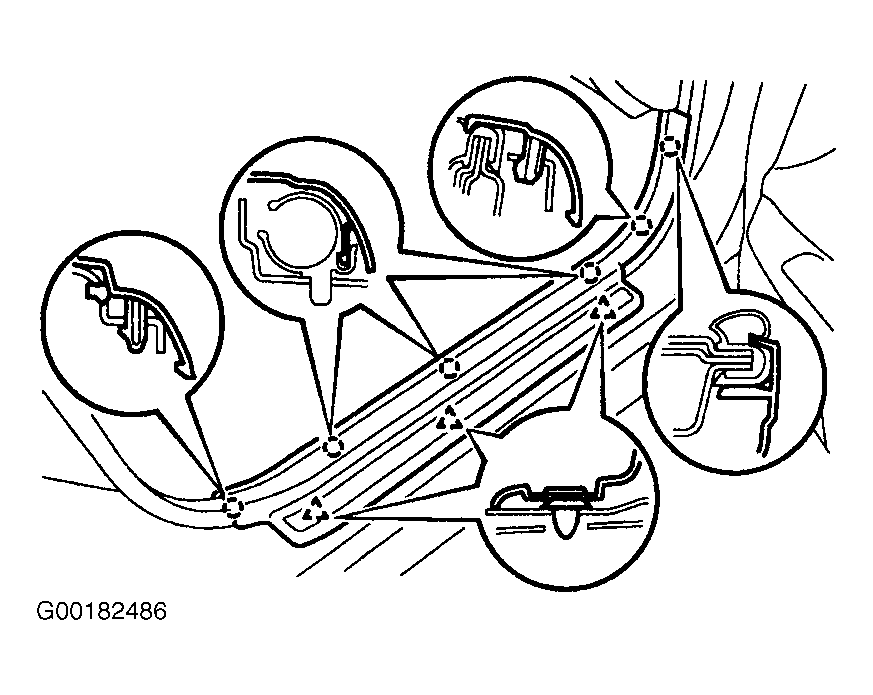

Fig 1: Removing Front Door Scuff Plate
G00182486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Removing Rear Door Scuff Plate
G00182487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Removing Lower Center Pillar Garnish
G00182488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

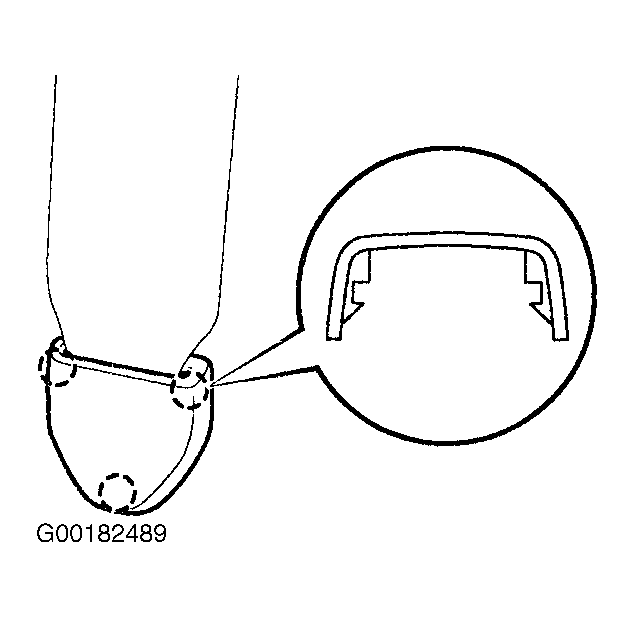

Fig 4: Removing Lap Belt Outer Anchor Cover
G00182489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

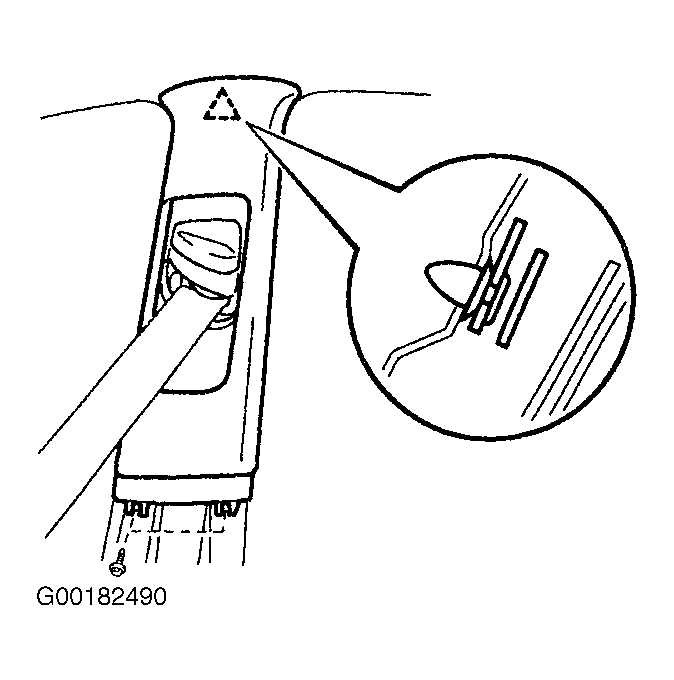

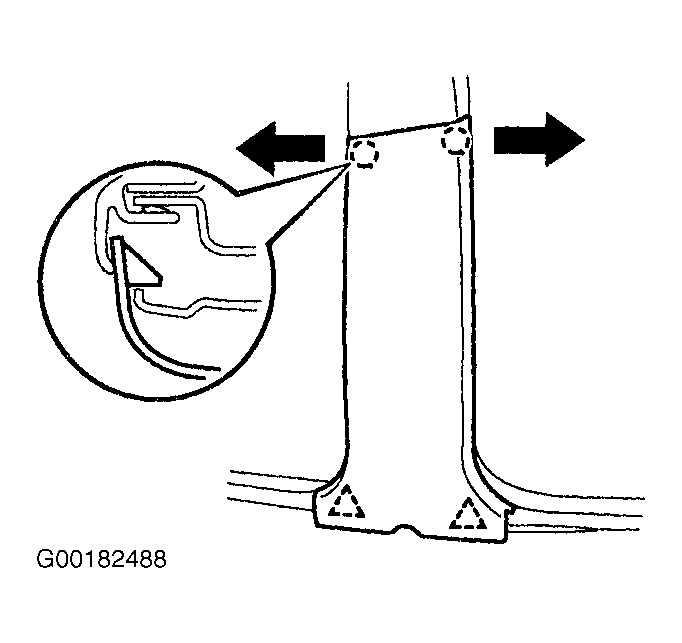

Fig 5: Removing Center Pillar Upper Garnish
G00182490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

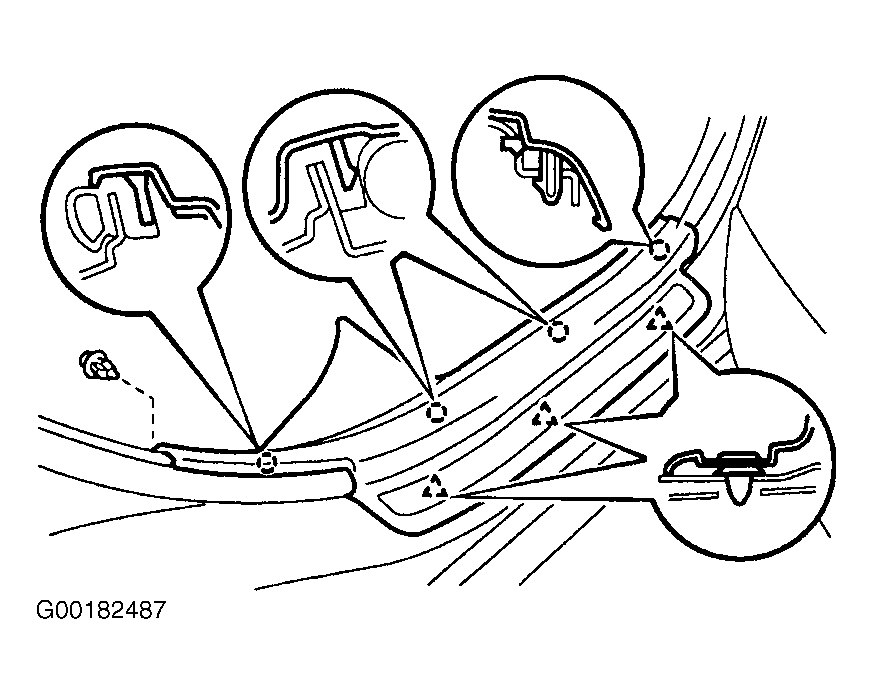

Fig 6: Removing Inner Roof Side Garnish
G00182491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

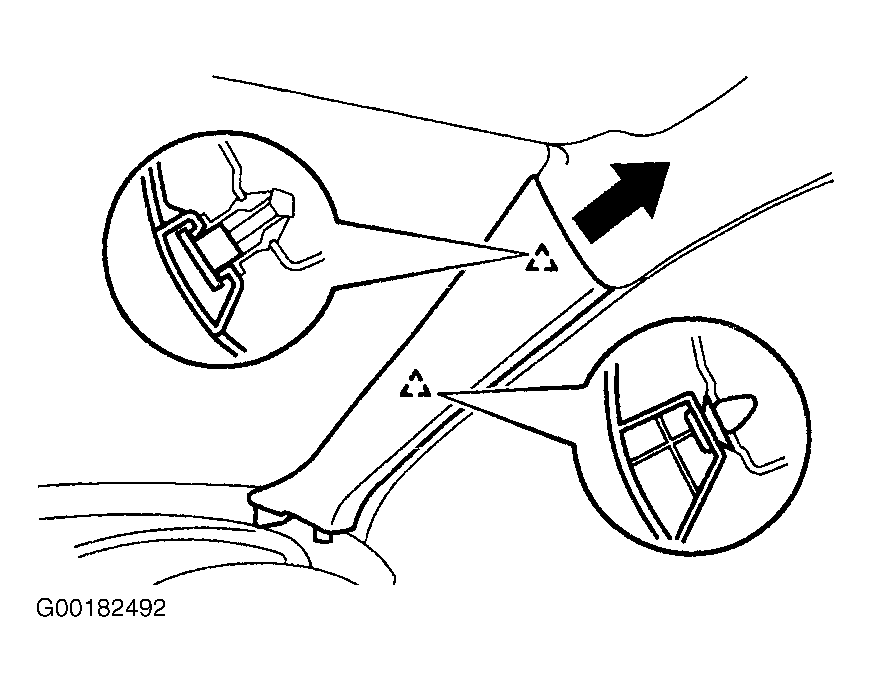

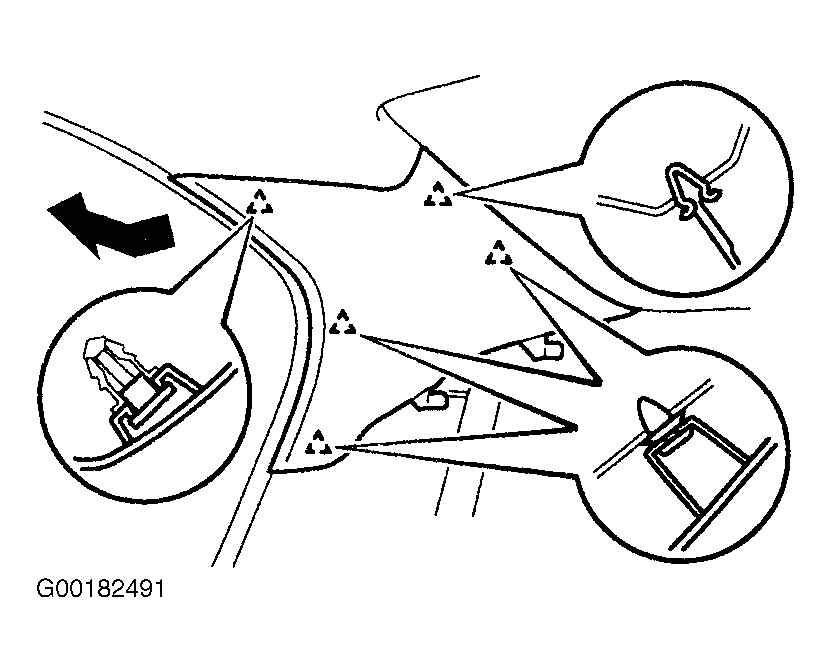

Fig 7: Removing Front Pillar Garnish
G00182492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

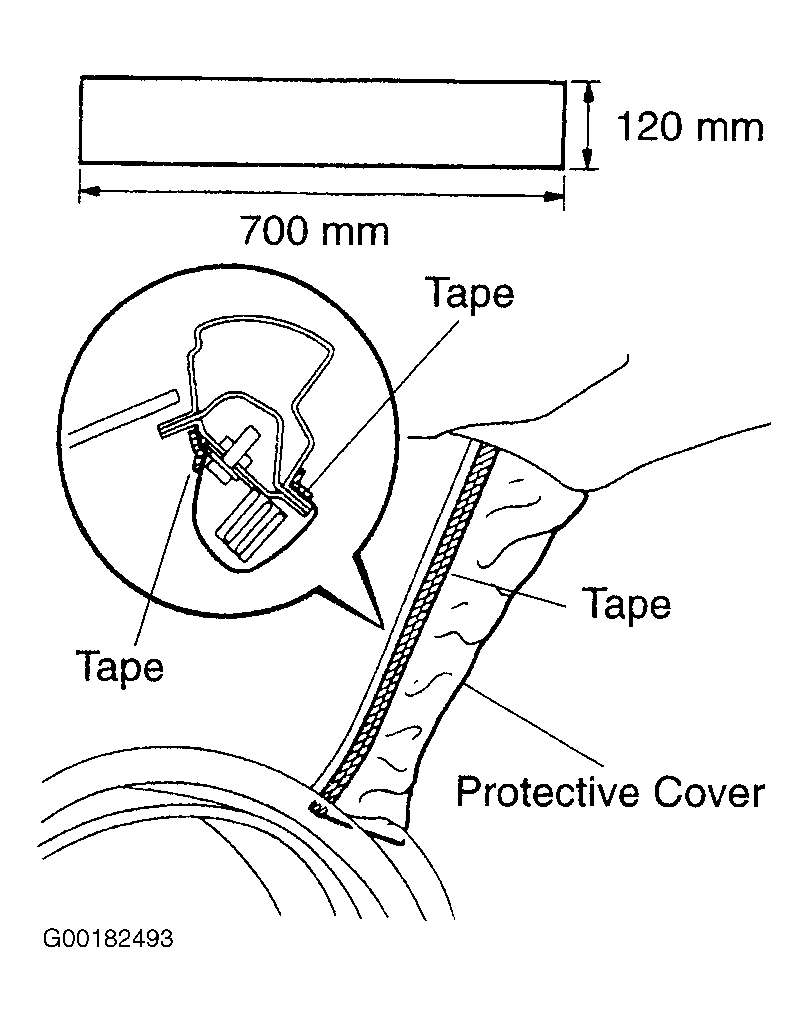

Fig 8: Protecting Curtain Shield Air Bag
G00182493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

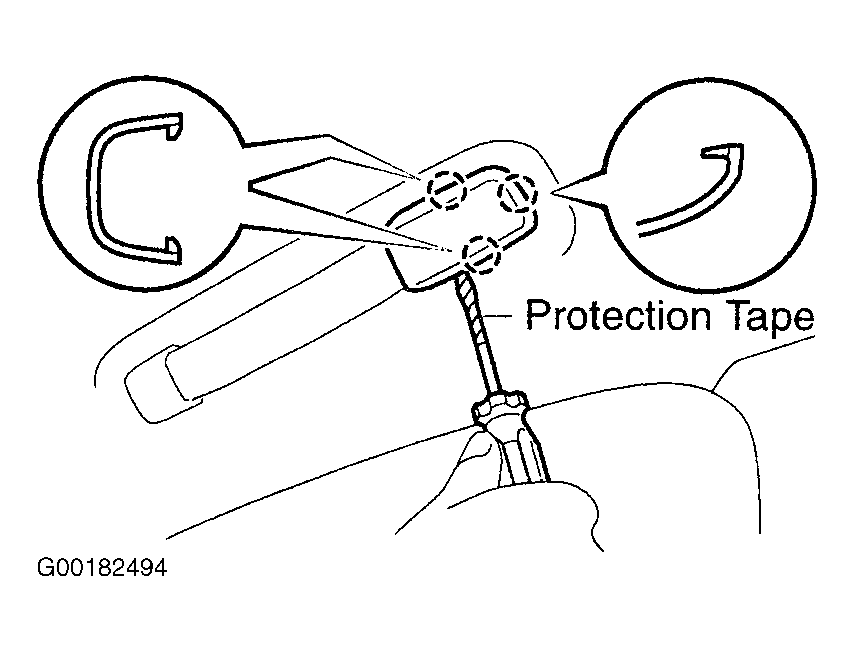

Fig 9: Removing Assist Grip
G00182494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

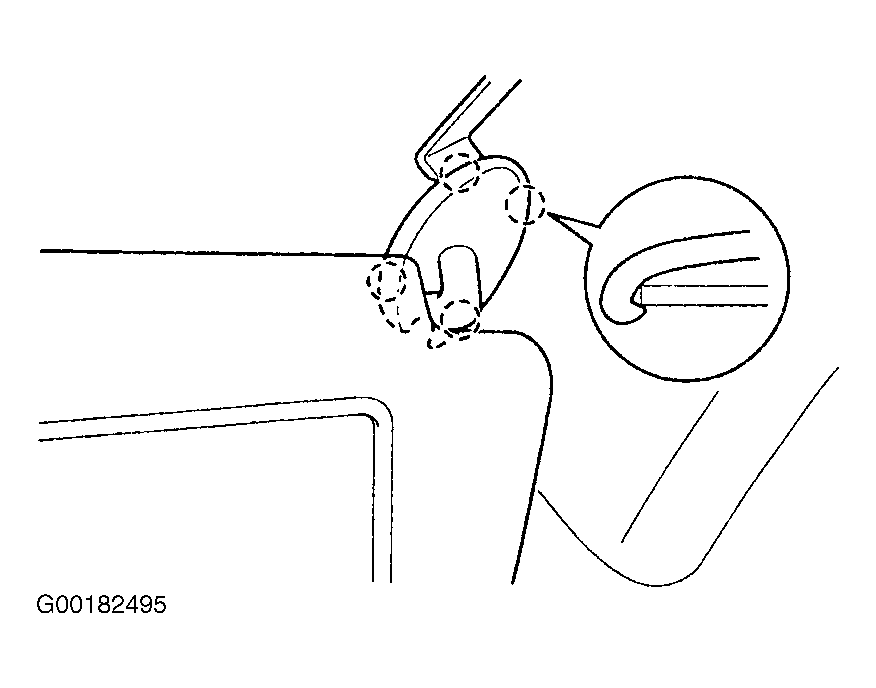

Fig 10: Removing Visor
G00182495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

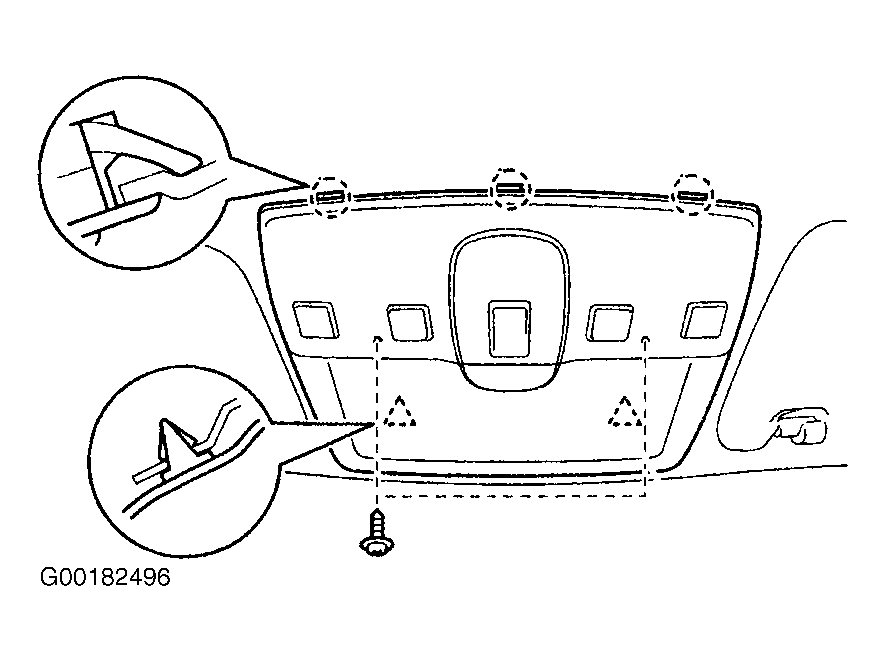

Fig 11: Removing Roof Console Box
G00182496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

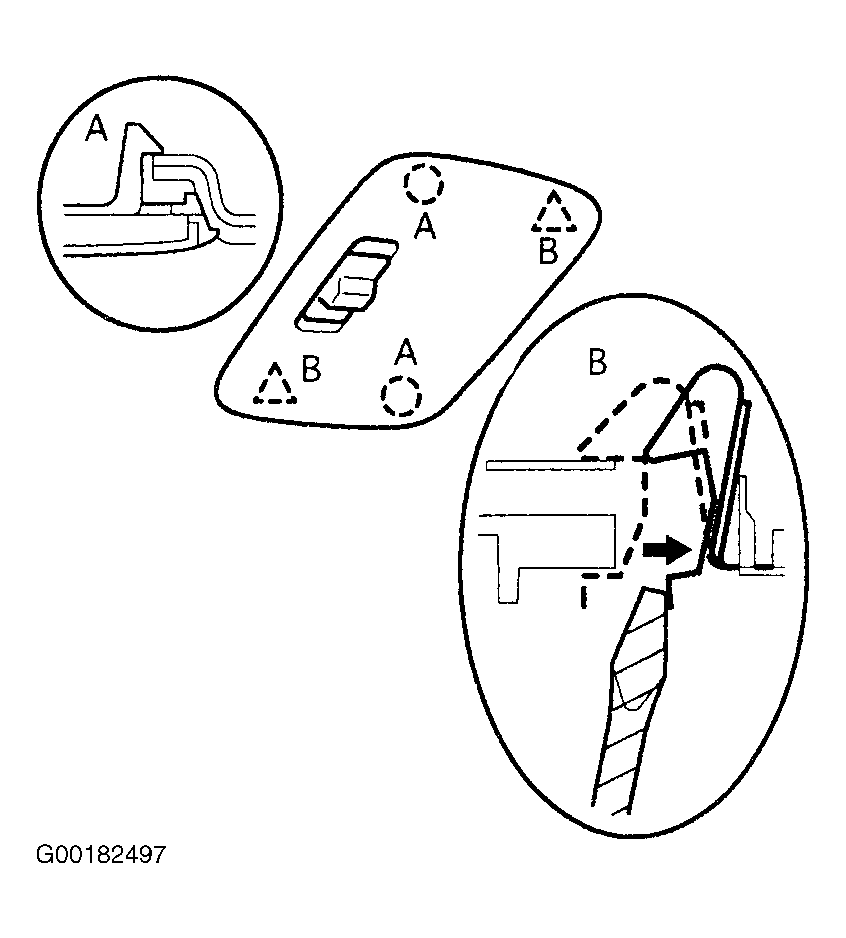

Fig 12: Removing Room Lamp Assembly No. 1
G00182497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

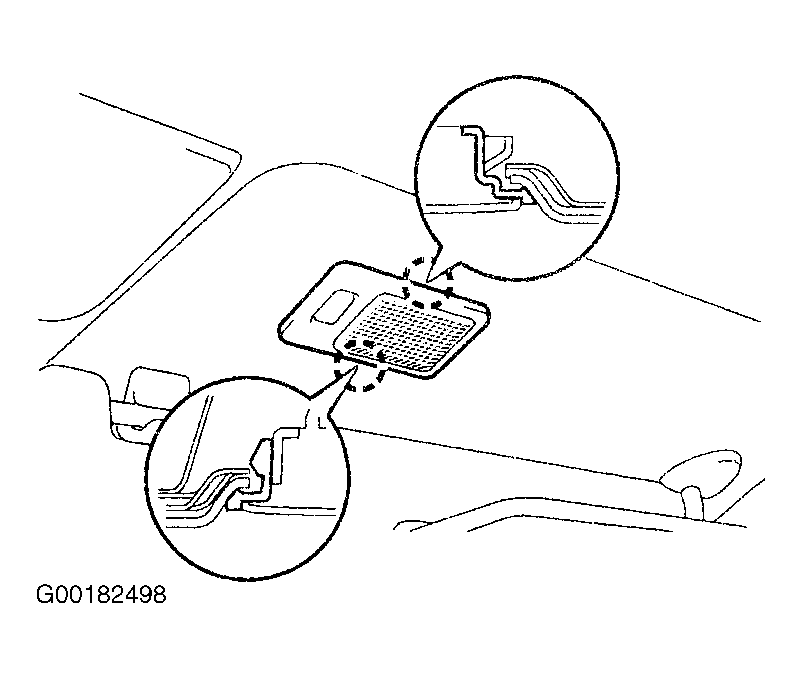

Fig 13: Removing Vanity Lamp
G00182498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

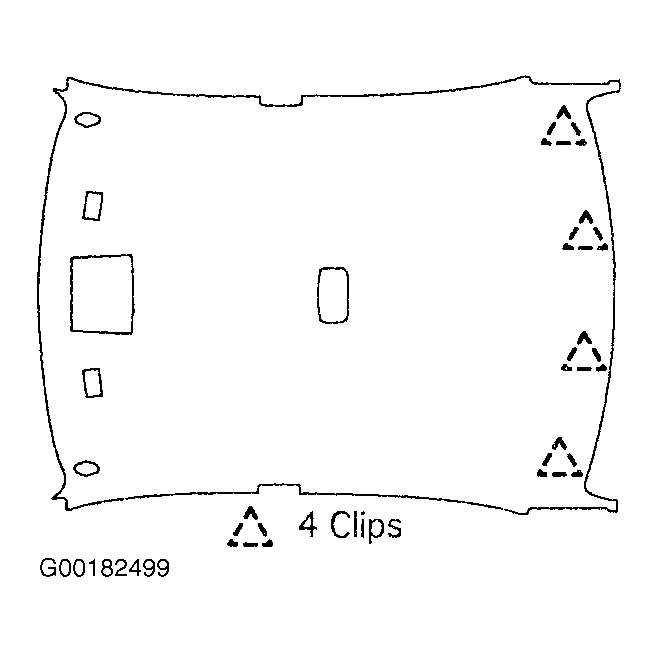

Fig 14: Removing Roof Headlining
G00182499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
