Roof Headlining Assembly: Installation
WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For installation, reverse the removal procedure except where noted below.

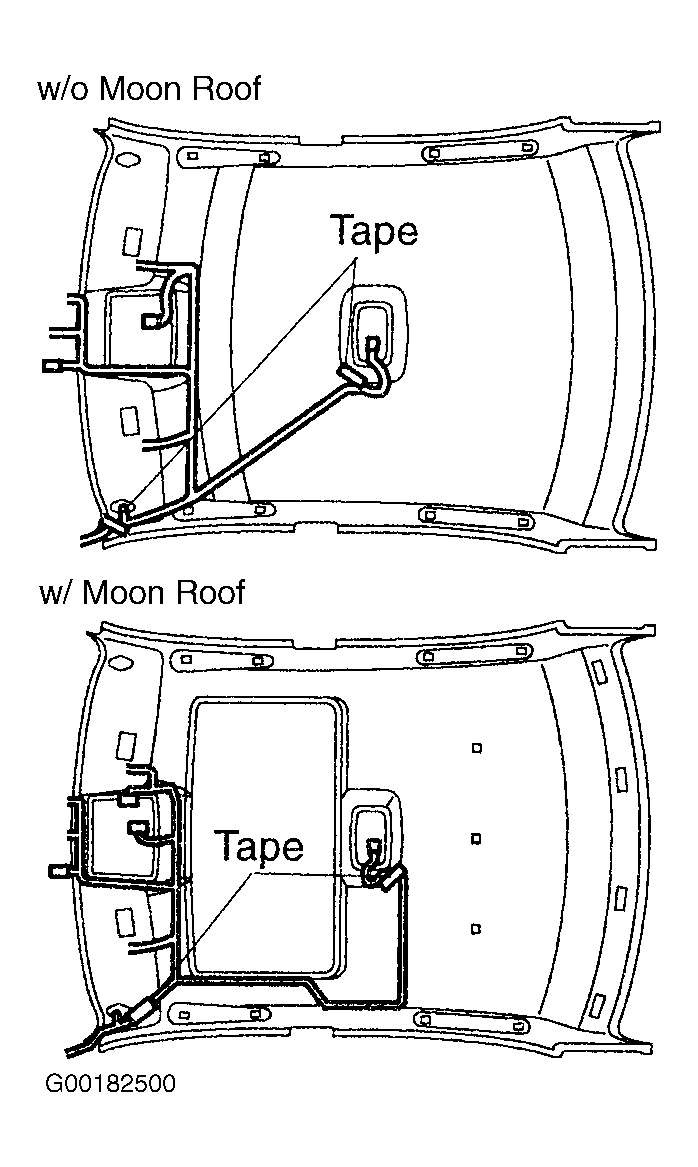

- Install the roof headlining assembly. Align the markings, then install the wire harness with tape. See Fig 1. Attach the roof wire harness across the adhered part. The roof wire harness should be attached securely.
- Install the RH and LH front pillar garnish. Install the new clip on the front pillar. Install the front pillar garnish.
- Install the RH and LH inner roof side garnish. Install the new clip on the rear pillar. install the inner roof side garnish.
- Install the rear seat cushion assembly and the rear seat back assembly. See REAR SEAT ASSEMBLY .
- Install the RH and LH front seat assemblies. See REMOVAL & INSTALLATION in POWER SEATS under SEATS article in ACCESSORIES & EQUIPMENT.
CAUTION:
Be careful for dirt or foreign objects not to stick to the adhered part when peeling the double-stick tape.
